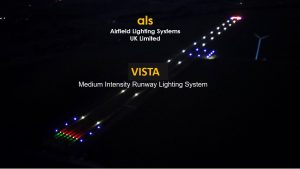

VISTA – LED Medium Intensity Runway Lighting System

The VISTA System is designed to provide the benefits of LED lighting to visual approach aerodromes such as regional airports, airstrips and military air bases. It is a reliable and flexible product, being easy to fit in any kind of infrastructure. The high-quality polycarbonate and aluminium components make the VISTA lights suitable for use in any kind of conditions, at temperatures ranging between -50^oC to +55^oC

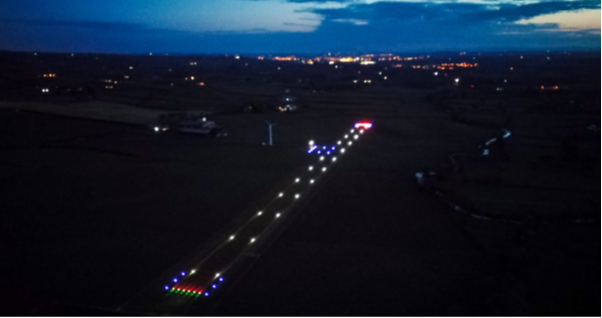

The VISTA System from ALS that was installed as a complete package consisting of lights, control gear, cable and all components required to provide a turnkey solution.

The new LED lights can be remotely activated from the approaching aircraft when five miles distant from the picturesque landing strip and these will continue to operate for 15 minutes before automatically switching off.  The signal to activate the lights can be sent by VHF from the aircraft radio (the frequency is adjustable for use in other countries), by mobile phone or an APP on a tablet.

The Vista System is a standalone system and was designed to provide the benefits of LED lighting to visual approach aerodromes such as regional airports, airstrips and military air bases. It is a reliable and flexible product, being easy to fit in any kind of infrastructure.

Manufactured from high-quality polycarbonate and aluminium components the VISTA lights are fully IP66 certified, tough and durable.

Since the low energy LED light source is a low current device there is no need for traditional 6.6A circuits and more traditional CCR controls. Moreover, the LED being a direct current device, the power distribution circuit is greatly simplified using a DC constant current power supply.

This concept also eliminates the need for series circuit transformers with their losses and expense. A specific feature of the product includes a device to ensure the continuity of the circuit upon failure of any single light unit as part of the future proof design.

Benefits
• Low power consumption
• Almost zero maintenance
• Operational even when the pilot is not properly aligned (non-instrument approach), up to 10o offset
• Extended operating hours for the airfield
• Designed for easy mounting

Features
• Easy to install
• Limited civil works with no specialized skills required
• Compact & lightweight aluminium body
• Optical diffuser made from scratch resistant UV protected polycarbonate

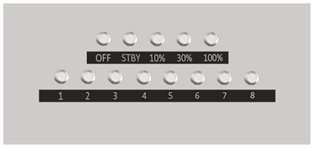

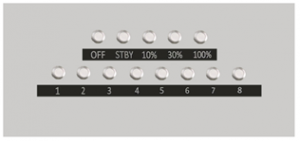

• 3 Step Light Dimming

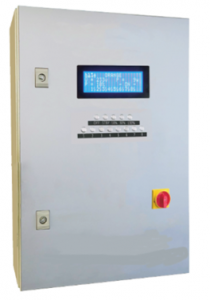

• Up to eight circuit DCR (Direct Current Regulator) Lighting Controller
• Pre-cut cables with FAA L-823 connectors
• Weatherproof
• Polyester powder golden yellow finish

Compliance
• ICAO
• FAA AC 150/5340-24
• Lighting characteristics (equivalent or better) of FAA AC 150/534-50a for portable runway lighting
• Eng. Brief No 67 Light Sources other than Incandescent and Xenon for Airport and Obstruction Lighting Fixtures
