ELAtextur – Macro-Texture Measuring Device
| Company | Smets Technology GmbH |
|---|
Images
Description
Specifications

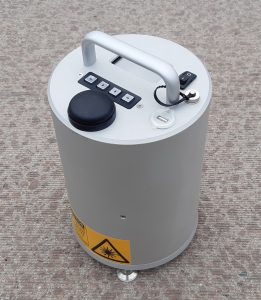

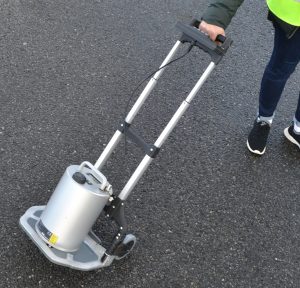

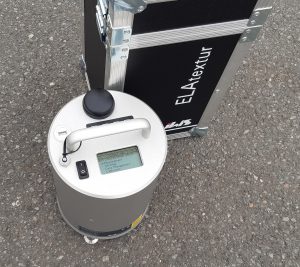

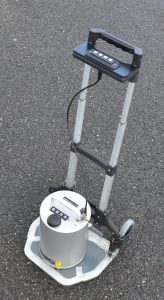

ELAtextur is a cutting-edge device that accurately and quickly measures pavement macrotexture. With its high-resolution laser sensor, integrated Mini-PC, and advanced software, it provides precise MPD and ETD values. Data can be easily transferred via USB, and the evaluation software generates comprehensive test protocols. The device also features a calibration plate for enhanced accuracy and an optional GPS receiver for outdoor operations!
Measures in 6 seconds the MPD and ETD value of a surface (macro-texture).
- Resolution/ vertical: 0.01 mm
- Resolution/ horizontal: 0.2 mm
- Measurement range/ vertical: 20 mm 20 mm (+5/ -15 mm of the footprint)
- Measurement spot: ≤ 1 mm
- Circumference of the measurement circle: 400 mm Scanned point
- per measurement: 2000
- Rotations per test: 2 (measurement+ repeated measurement)
- Test duration: about 6 seconds
- Test duration incl. storage of the data in the device: about 10 seconds
- Time required for transferring the data of 100 measurements to an external USB stick for evaluation on a PC: < 1 second
