FASERFIX BIG BL
| Company | HAURATON GmbH & Co. KG |
|---|---|
| Product code | FASERFIX BIG BL 100, 150, 200, 300 |
Images
Description
Specifications

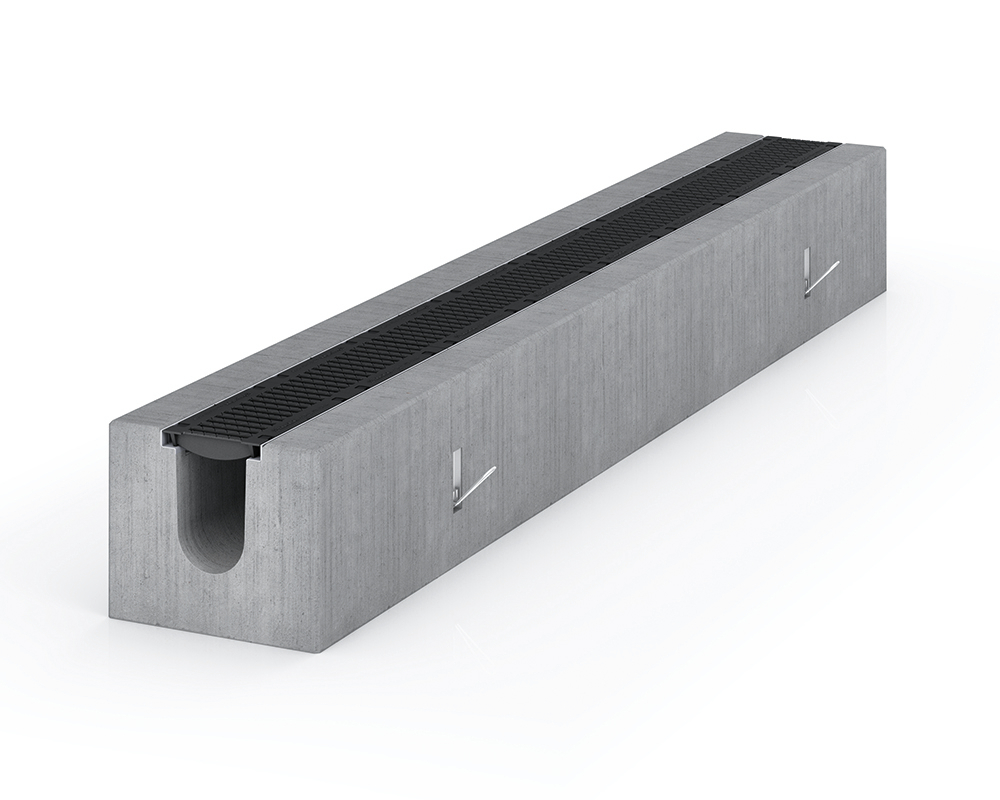

Cast from high-performance ‘HRS’ cement concrete, FASERFIX BIG BL has a mega-monoblock design incorporating the channel surround, base and steel reinforcement cage within a single rigid ‘concrete beam’ structure for increased strength, stability and high resistance to impact loads.
FASERFIX BIG BL is estimated to be ten times quicker to install (F 900 locations) compared with alternative systems. Refer to product brochure for detailed information.
Key benefits include:
- Monolithic structural design for superior resistance to dynamic forces and loads.
- Concrete wall thickness of 200mm (150, 200 and 300 mm channels); for added structural integrity.
- Integral steel reinforcement cage provides a rigid ‘concrete beam‘ structure; increased strength and impact resistance.
- Channel, steel reinforcement and concrete surround installed in one operation (combined structure).
- 4.0m long units for quicker progress, improved alignment and lower costs.
- No form-work required for the channel concrete surround; reduced on-site concrete pours and curing time.
- Wide and level channel base; stable bedding platform.
- Loading: System load rated to F 900 (EN 1433)
- Channel Sizes: 100, 150, 200, 300 mm
- Channel Lengths: 1.0m and 4.0m
- Channel Material: HRS Concrete
- Grating Options: Various Options, D 400 – F 900
- Grating Material: Spheroidal ductile iron GJS 500-7 ‘EN1563‘ (KTL ‘Cathodic Dip’ Coated)
- Channel Configuration: Constant Depth
- Accessories: System supplied with a range of accessories
