RECYFIX HICAP Slot Channel
| Company | HAURATON GmbH & Co. KG |
|---|---|
| Product code | RECYFIX HICAP 1000, 2000, 3000, 5000, 8000, 10000 |
Images
Description
Specifications

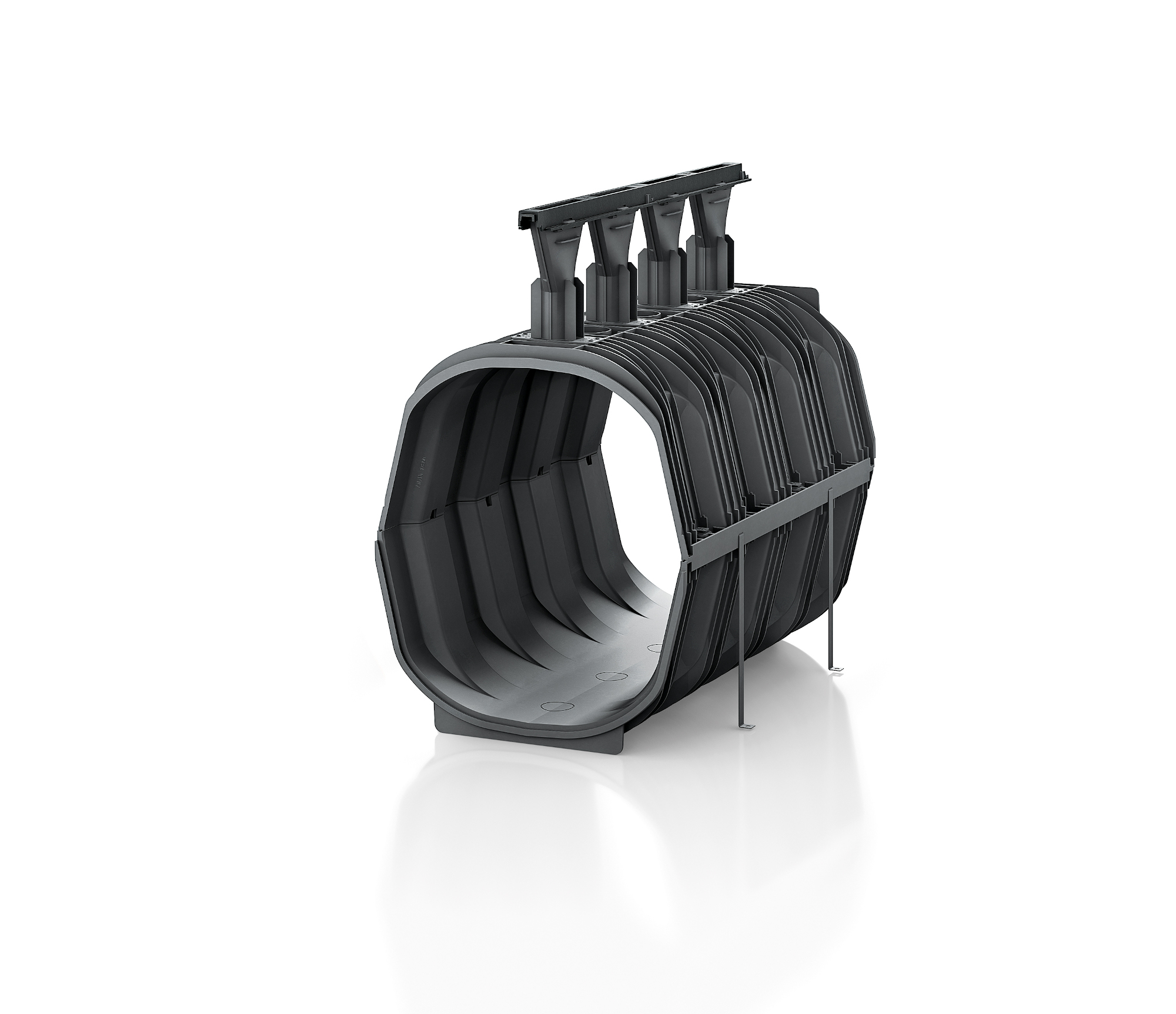

RECYFIX HICAP F SLOT CHANNEL is a high-capacity linear drainage system used to provide efficient and cost-effective drainage and attenuation within extensive hard surface areas.
The system has proven performance in airside areas of major airports worldwide.
Key benefits include:
- Monolithic system installation and narrow retained grating design, provides superior resistance to heavy loads and dynamic forces at the pavement surface and a safe airside environment.
- High intake and drainage capacity. Channel units provide efficient interception, drainage and retention of stormwater from airside surfaces.
- Manufactured from 100% recycled Polypropylene composite (some components in Polyamide PA-GF), with gratings in durable spheroidal ductile iron, channel units are strong, corrosion-free and impact resistant.
- Loading: System load rated to F 900 (EN 1433)
- Channel Sizes: HICAP 1000, 2000, 3000, 5000, 8000, 10000
- Channel Lengths: 1.0m and 1.145m (HICAP 10000)
- Channel Material: Recycled Polypropylene / Polyamide PA-GF
- Grating Options: Slot 14, Slot 28,
- Grating Material: Spheroidal ductile iron GJS 500-7 ‘EN1563‘ (KTL ‘Cathodic Dip’ Coated)
- Channel Configuration: Constant Depth, Stepped-Fall
- Accessories: System supplied with a range of accessories
