RECYFIX NC
| Company | HAURATON GmbH & Co. KG |
|---|---|
| Product code | RECYFIX NC 100, 150, 200, 300, 400 |
Images
Description
Specifications

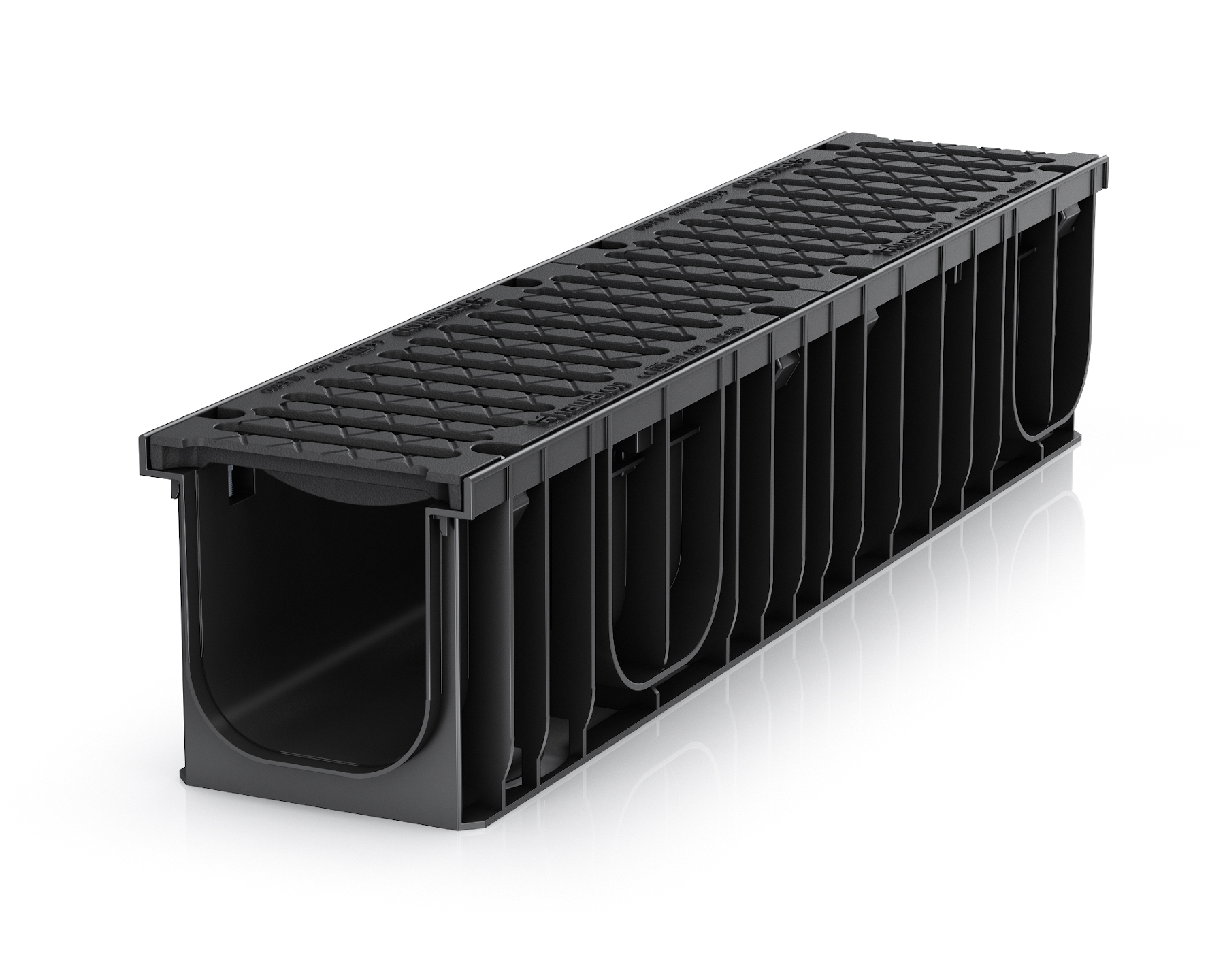

RECYFIX NC combines heavy-duty (E 600) loading capability with practical design for long-term high performance.
RECYFIX NC has a composite edge-frame incorporated within the channel body structure for improved durability and resilience at the surface when trafficked.
Heavy-duty slotted gratings (spheroidal ductile iron GJS 500-7) are securely bolted within the edge-frame housing (eight steel bolts per metre) for extra strength and safety.
Key benefits include:
- Channel body in modified Polypropylene composite for high impact / corrosion resistance.
- Torsion-free ribs and concrete anchors for additional structural integrity
- Pre-assembled, lightweight units for quick, easy installation
- Load tested up to E 600
- Loading: System load rated to E 600 (EN 1433)
- Channel Sizes: 100, 150, 200, 300, 400
- Channel Lengths: 1.0m
- Channel Material: Recycled Polypropylene
- Grating Options: Slotted grating
- Grating Material: Spheroidal ductile iron GJS 500-7 ‘EN1563‘ (KTL ‘Cathodic Dip’ Coated)
- Channel Configuration: Constant Depth, Stepped-Fall, Pre-Sloped Units
- Accessories: System supplied with a range of accessories
