Stecamat 861 - Processor controlled charger for lead-acid batteries

Stecamat 861 battery charger is available in dust / jet water protected housing

Battery is charged gently / quickly by processor-controlled charging procedures.

Highest flexibility in use as well as simple handling

backlit display provides quick information about charging status current, voltage, time adjustments through range of preprogrammed battery charging characteristics / possibility to enter own charging characteristics (also for damaged /discharged batteries) optional with Stecamat 861 ES test function (enables “real” capacity testing directly on site).

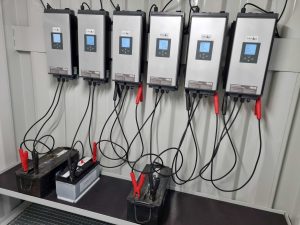

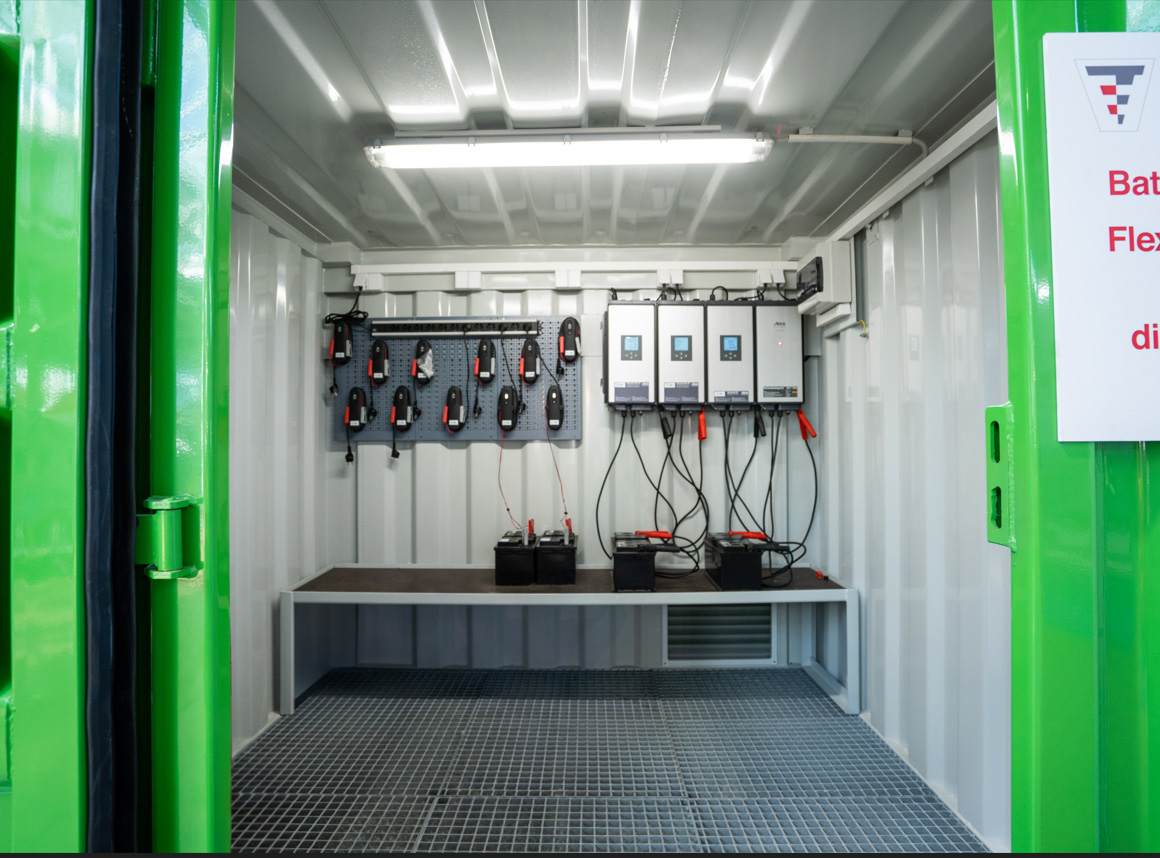

Now with the option of a trickle charge wall (11-unit, 5-unit charger units or on request)

The know-how of the Stecamat battery chargers makes it possible to recognize and treat deeply discharged batteries!

Stecamats have a special pre-loading cycle integrated in all characteristic curves.

If a deeply discharged battery is detected (voltage level, current behavior), this is started automatically.

After reactivation, the charging process automatically switches to the first charging phase.

The reactivation of deeply discharged batteries depends on the strength of the deep discharge, but is successful in most cases.

IU characteristics with a fully automatic process, suitable for all liquid acid, gel and AGM batteries, automatic trickle charge function after charging.
