Battery Driven GPU – APA-ECO SERIES
| Company | ElectroAir |
|---|
Images

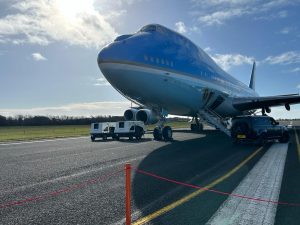

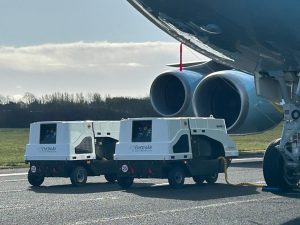

The Battery driven green GPU APA-ECO series is designed to eliminate CO₂ emissions with its unique technical characteristics. It can perform the complete service of aircraft at remote parking places with battery power, as well as the use of it indoors with zero emissions. This unit is also capable to operate from the 50/60 Hz, 400 V, 3 phase main power supply grid as any electrical GPU, without fuel consumption and with zero operating emissions. The range of different APA configurations with no emissions allow safer, cleaner and more practical operational conditions for operators and personnel on-site.
GENERAL
Ambient operation temperature: -25 to +45˚C
Humidity: 10 – 100%
Noise level <60db at 1 meter
Casing material: composite material, galvanized steel
Forklift pockets and Grounding included
Cooling system included
Beacon lighting during APA operation
Warranty of 24 months (negotiable)
Protection class above IP55
Parking brakes with towbar in upright position
Tow bar standard tow eye by DIN D40/F
Interlock: ON/OFF switch, military/civil switch,
by-pass mode accessible only to authorized personnel,
EN 12312-20
3-phase at 400V/50Hz or 380/60Hz input / 1-phase at 220V/60Hz input
DC fast charger input
BATTERY PARAMETERS
Nominal energy, kWh 120
Discharge power, kW nominal 90
Charging time <10 hours (less if used with ElectroAir fast charger)
Battery pack replaceable (modular)
Capacity loss >10 years
External power supply: Can be powered and charged from another GPU. Can be supported by other GPU during operation without supply breaks.
AC OUTPUT PARAMETERS
Total output power, kVA: 90
Rated output voltage, VAC: 115/200
Range of load changes, %: 0 – 100
Range of voltage regulation, V: 104-130
Range of frequency regulation, Hz: 360-420
Total harmonic distortion, not worse, %: 3
Output frequency, Hz: 400 ± 0.01
Coefficient of amplitude modulation of the output voltage < 1.5%
3-phase output cable length of 10m
Aircraft plug: 6-socket aircraft connector
DC OUTPUT PARAMETERS
Number of outputs: 1
Rated output voltage, V: 28,5
Voltage stabilization, V: 0,5 (at balanced load)
Output current, A: 800
Peak current, A: 2400 for 2 seconds
Output cable length, m: 10, with aircraft plug
CONTROL PANEL
Visual Display Unit Anti flare sunlight readable.
Output voltage, current, frequency, operational
parameters and status, error indicator, start/stop,
Battery cell voltage, Power consumption data,
Battery status data, emergency stop buttons.
PROTECTION
Automatic voltage drop compensation and phase sequence relay
Input/output voltage raise/drop
Overload prevention
Frequency raise/drop
Input/output shortage
Current leakage supervision
Neutral voltage supervision
LFP, cobalt free, highly safe cell
Emergency stop button:
Instant stop of all systems
DOCUMENTATION
Operational manuals
Maintenance manual
Safety Datasheet (incl. battery test sheet)
Illustrated parts breakdown
Warranty certificate
Online training and certification
* The specification data could be changed by the manufacturer without prior notification
