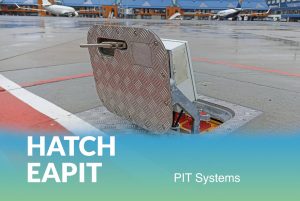

Mini Underground Hatch PIT System


Underground MINI hatch PIT systems are counterweight systems that are designed to supply power to onboard electrical equipment of aircraft and helicopters during pre-flight preparation at airports, shop floors of aircraft industry enterprises, or a hangars.

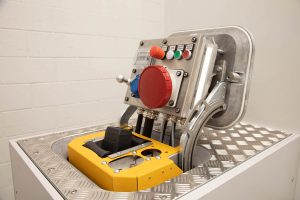

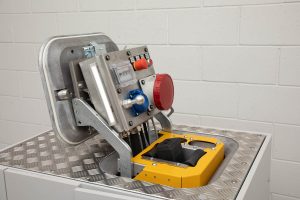

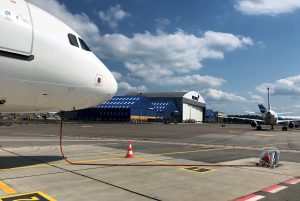

There are plugs on the upper part of the hatch to supply the aircraft with special current of either 400 Hz AC or 28.5 VDC.

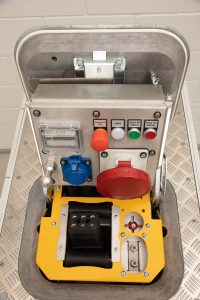

MINI EAPIT can be equipped with a remote control and access system. On the lower part, there is a distribution box with a set of sockets. EAPIT is assembled as much as possible to simplify its installation and connection.

It is strongly recommended using ElectroAir GPUs with ElectroAir hatch PIT systems. By using them as a complete solution, it is possible to install GPUs far from the location of the PIT system.

If needed systems of compressed air and water (potable, blue, sewer) and/or electrical sockets can be also built in to the PIT system.

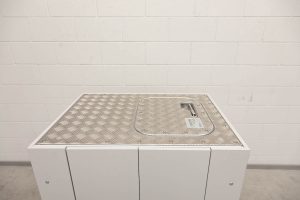

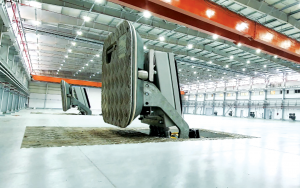

Underground chamber design is protected against foreign objects, dirt, rain and ground water ingress through the lid hatch. The corrugated outer surface of the cover eliminates slippage of an aircraft chassis, wheels of trucks and other vehicles. The cover is protected from spark formation due to collisions with metal objects. The cover holds up to 90t (according to EN 124 F900).

EAPIT can be installed into concrete chamber or chamber made of metal. Concrete chamber shall be produced by the customer according to ElectroAir recommendations.

General Parameters

  • Climatic execution: -40 to +55oC
  • Humidity: 10 – 98%
  • Warranty: 24 months
  • Execution: metal/concrete underground chamber

  • User + service manual
  • Passport
  • Warranty certificate


  • Plug with control buttons
  • Regulation of voltage and frequency from control panel
  • Heater for the hatch
  • Heater for the underground chamber
  • Additional manhole
  • Gas analyser
  • Lighting inside of the chamber
  • User interfaces: RS485 / 232 ; TCP/IP; Modbus
  • Measuring devices type: analog or digital
  • Voice signalization
  • Sump pump
  • Microclimate system



Input parameters

  • Input voltage:
    • 3x400V ± 10% , N, PE, 50/60Hz
    • 115/200V, 400Hz
  • Compressed Air
  • Water

Output parameters

  • Output voltage:
    • max 2x400V±10%, N, PE, 50/60Hz – 16A, or 32A, 63A, 125A, 1-200A, 250A sockets or
    • 3x215V, 400Hz – up to 1 x 15m cable with plug or
    • 28VDC – up to 1x15m cable with plug
  • Compressed Air – up to 10 bars
  • Water – up to 1 channels
Control panel

  • Main lamp, emergency stop, ON/OFF, beacon light, grounding rod

Dimensions and weight

  • 83 x 59 x 60 cm
  • 430 kg

  • Protection class: IP 54/55, electrical components IP67
  • Foot lock protection
  • Load capacity: F900 (90t/m2)
