Castor Decks

Description
Specifications

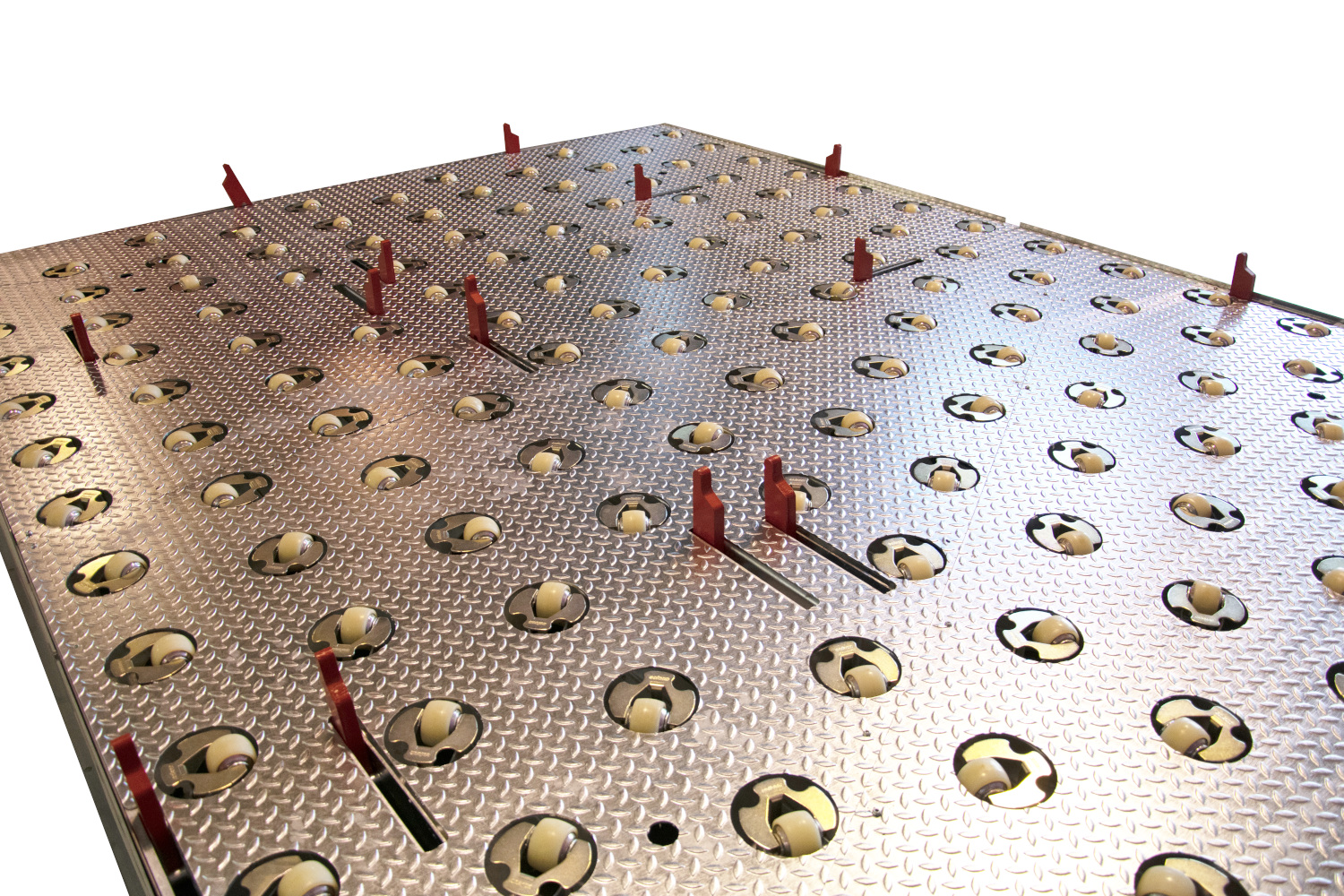

Castor Decks modules are designed to ease the manual handling of air containers (ULD) allowing safe and ergonomic operations while moving between the operative areas (inbound, sorting, and outbound). Castor Decks design allows either the multidirectional movement or the rotation of ULDs without the need of providing for any electrical or pneumatic or hydraulic power source; further modules can be integrated on scissor lift and/or provided with scales and/or safety stops in predefined positions.

With Castor Deck the handling of containers from the aircraft to the unloading area is particularly easy and fast (inbound process). After opening the containers, operators may place the parcels on the handling line to convey them directly to the sorting area. Aircraft loading procedure (outbound process) is similarly easy and fast: parcels, arriving from the conveyor, are subjected to weighing-dimensioning process and then loaded into air containers, while weighing data are used to define the flight loading plan.

  • STD Module Dimension: Up to 2438 x 3175 mm (96″ x 125″)
  • STD Height: 508 mm (20″)
  • MIN Height: 254 mm (10″)
  • Wheels Diameter: 70 mm
  • Wheels Pitch: 289 mm
  • STD Load Capacity: 250 kg/wheel
