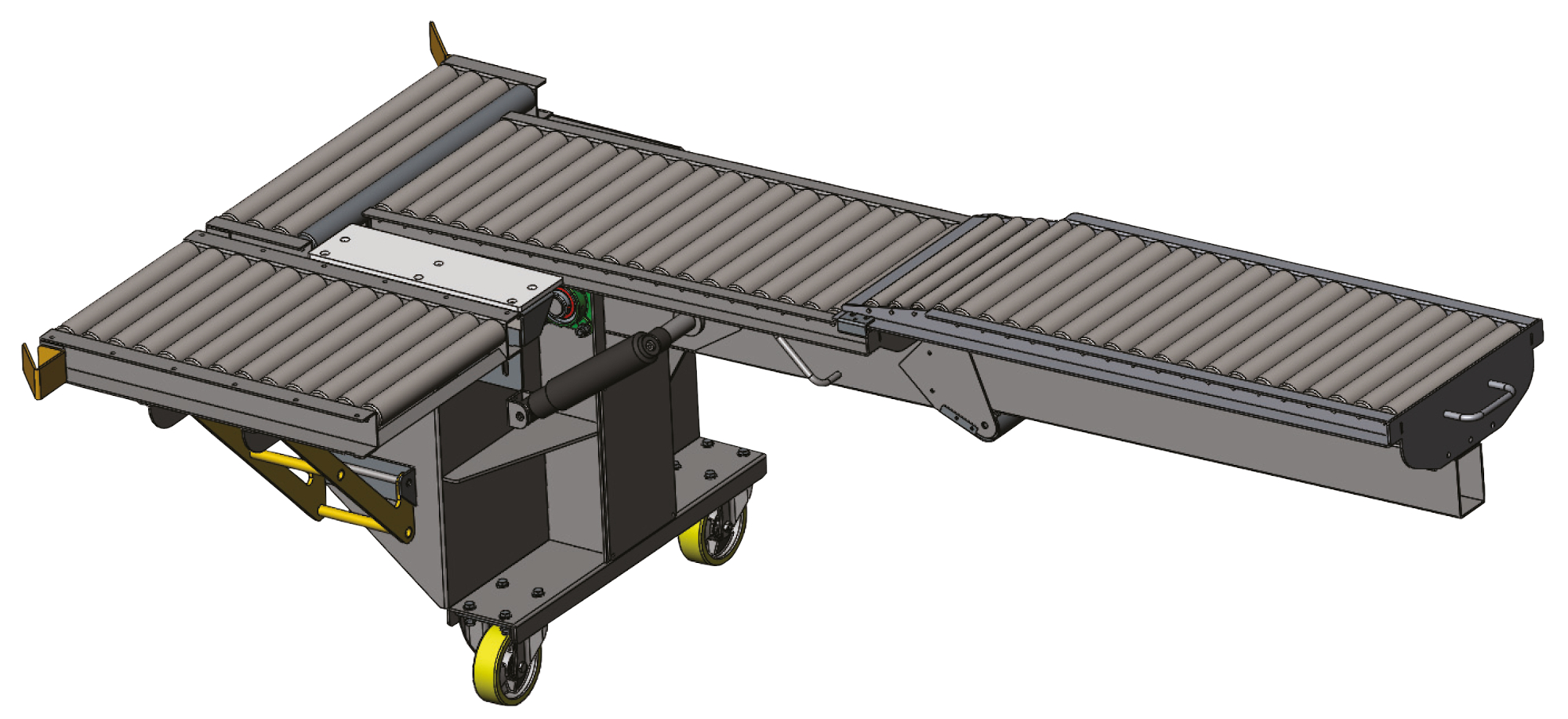

Unloader UNL32
| Company | CMC Industries |
|---|
Images
The single stage waist high UNL32 is designed to ease the manual handling processes allowing a safe and ergonomic handling of goods between conveyors and trucks / vans. Its design allow both the telescopic extension to optimize the distance between the opposite working edges and the tilting rotation to minimize the footprint once not in use.
All operations are manuals, it is not necessary to provide for any electrical or pneumatic or hydraulic source.
The unloader is generally installed beside a conveyor line at floor level or on a walkway platform, it can be moved (sliding on its wheels) along the conveyor where the operators are providing for the offloading and sorting of goods.
TOTAL MODULE HEIGHT: 1640 mm
TOTAL MODULE WIDTH: 1530 mm
RETRACTED LENGTH: 1526 mm
EXTENDED LENGTH: 2400 mm
WORKING HEIGHT (0°): 760 mm
ROLLER WIDTH: 400 mm
ROLLERS DIAMETER: 50 mm
LINEAR LOAD: 50 kg/m
