Unloader UNL26
Company | CMC Industries |
---|
Images

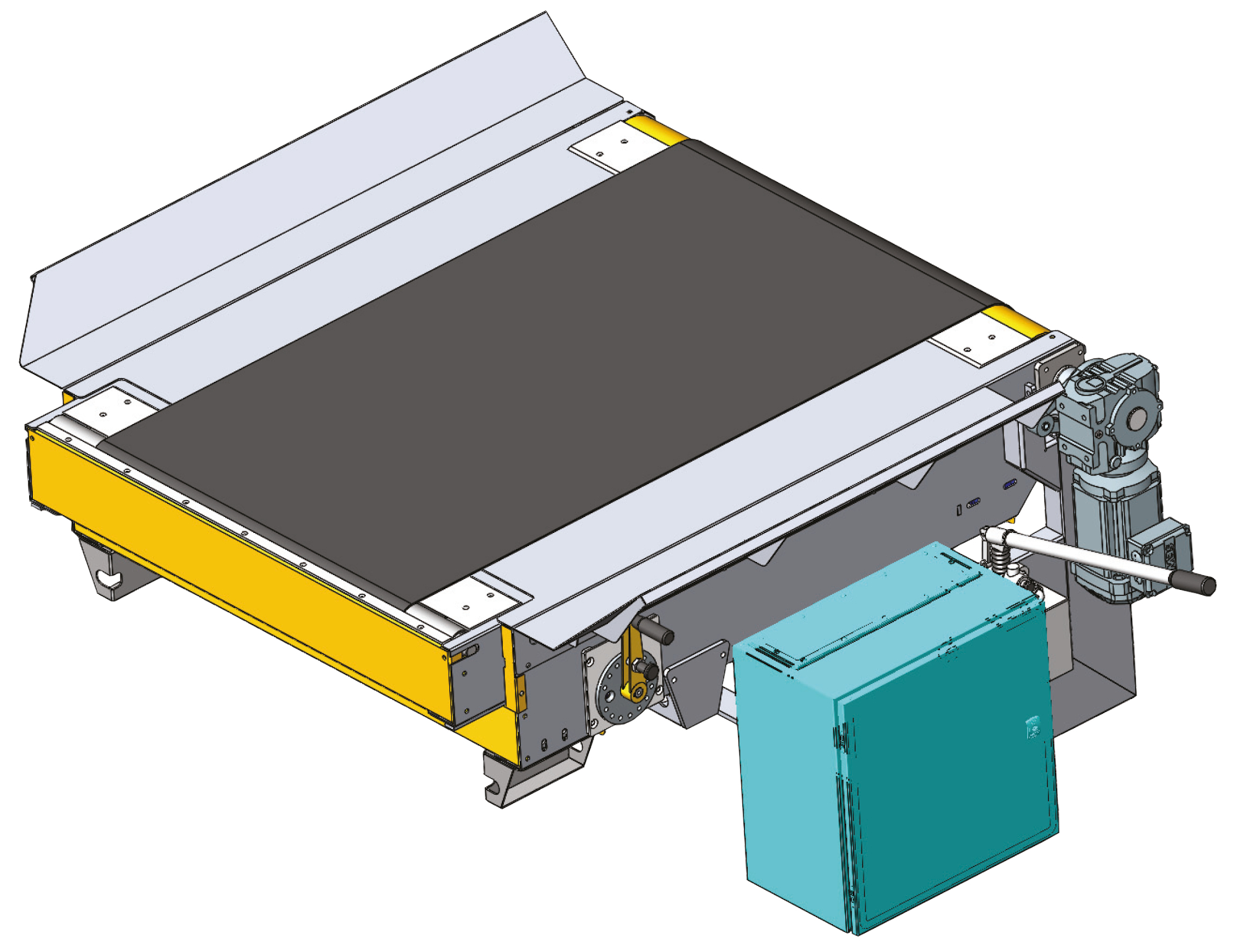

The bidirectional UNL26 is designed to ease the manual handling processes allowing a safe and ergonomic handling of goods between conveyors and trucks / vans. Its design allow the telescopic extension to optimize the distance between the opposite working edges.
The unloader is generally installed beside a conveyor line at floor level or on a walkway platform, it can be moved (sliding on its wheels) along the conveyor where the operators are providing for the offloading and sorting of goods or be installed on a fix standing frame.
WORKING HEIGHT (0°): 760 mm
TOTAL MODULE WIDTH: 2170 mm
RETRACTED LENGTH: 1540 mm
EXTENDED LENGTH: 2210 mm
BELT WIDTH: 840 mm
LINEAR LOAD: 50 kg/m
BELT SPEED ADJUSTABLE: 16/22/33 m/min
DRIVE UNIT: 0,75 kW/400V3ac
