Loader LOA25
| Company | CMC Industries |
|---|
Images

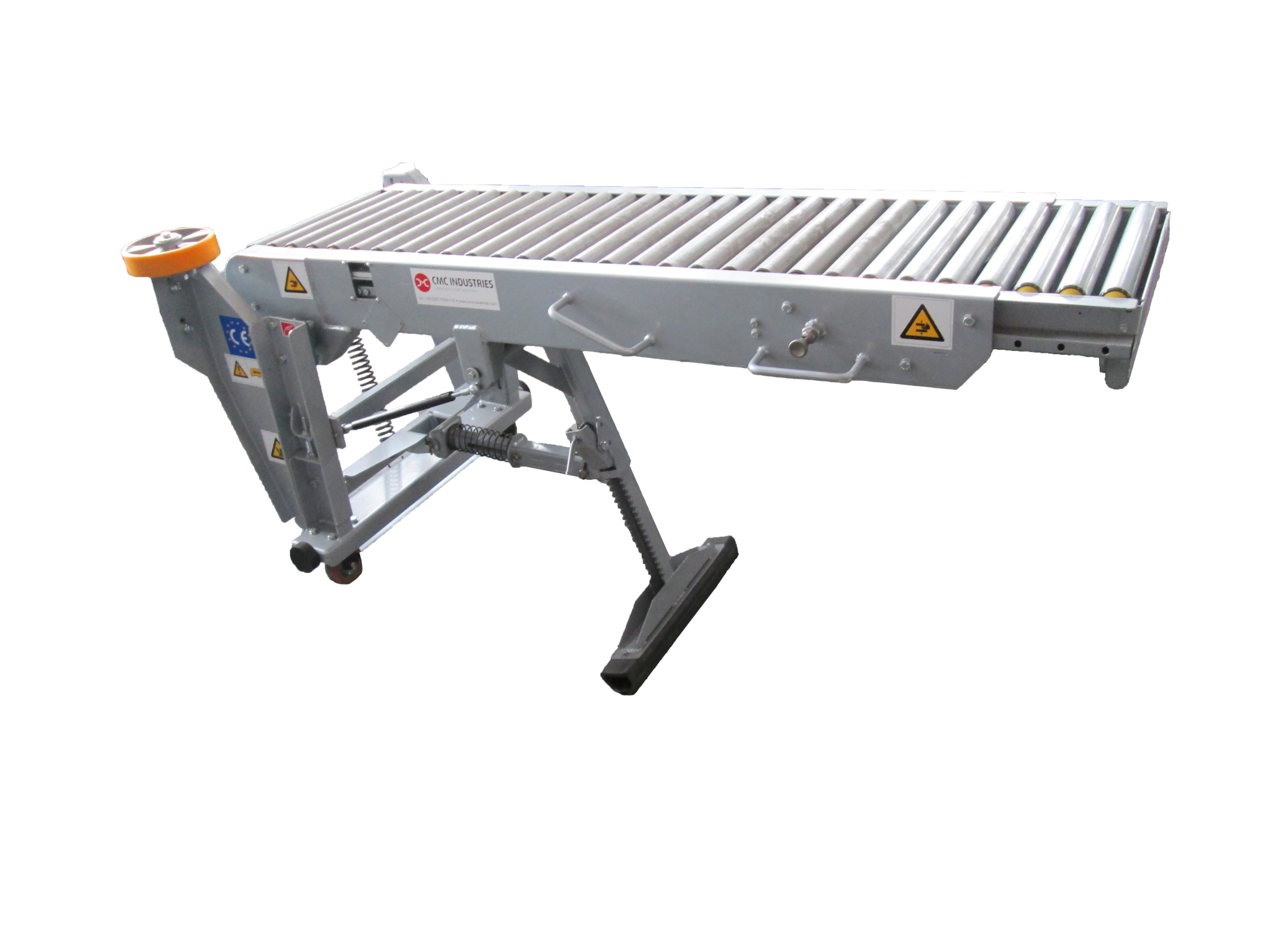

The bidirectional single stage LOA25 is designed to ease the manual handling processes allowing a safe and ergonomic handling of goods between conveyors and trucks / vans. Its design allow both the telescopic extension to optimize the distance between the opposite working edges and the tilting rotation to minimize the footprint once not in use.
All operations are manuals, it is not necessary to provide for any electrical or pneumatic or hydraulic source. The loader is generally installed beside a conveyor line at floor level or on a walkway platform, it can be moved (sliding on its wheels) along the conveyor where the operators are providing for the offloading and sorting of goods.
TOTAL MODULE HEIGHT: 1172* – 2125** mm
TOTAL MODULE WIDTH: 960 mm
SHORTEST MODEL LENGTH*: 915 – 1230 mm
LONGEST MODEL LENGTH**: 1880 – 2950 mm
WORKING HEIGHT (0°): 760 – 850 mm
ROLLER WIDTH: 455 mm
ROLLERS DIAMETER: 50 mm
LINEAR LOAD: 50 kg /m
