DinoCera – Electric Bus
Company | DINOBUS |
---|

Images

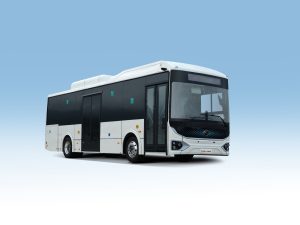

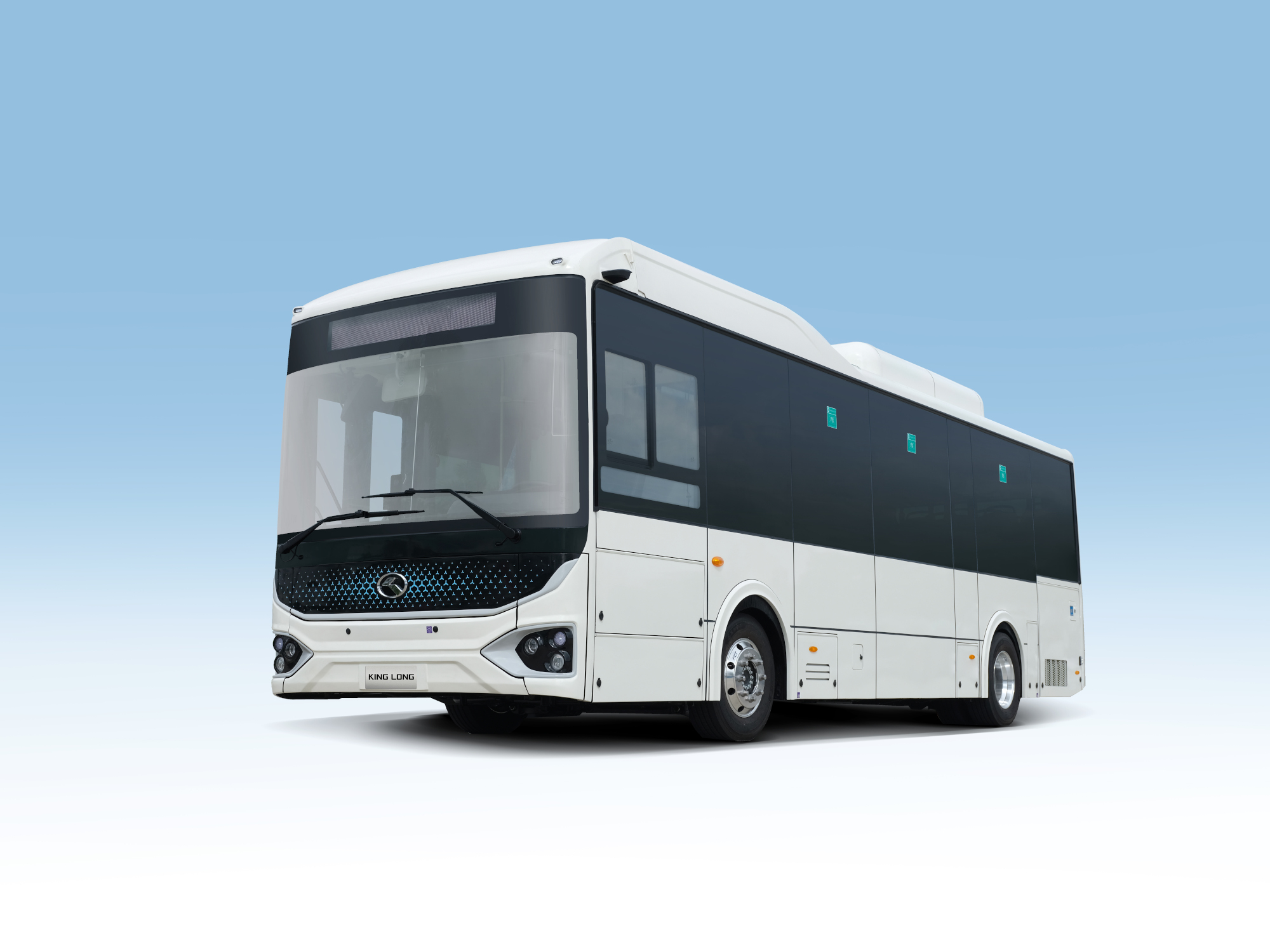

The DinoCera is a versatile and spacious bus, designed for compatibility on both city roads and airport grounds. Built with an ergonomic focus, it offers a welcoming atmosphere for passengers and operators alike. Measuring 12 meters in length and 3.55 meters in width, the bus enables a panoramic view system for enhanced safety and comfortably accommodates up to 94 passengers, with an optional space for wheelchair accessibility. This model is available with battery capacities of either 350 kW or 422 kW. Its lightweight monocoque body incorporates an intelligent cooling system, reducing energy consumption while optimizing performance for long-distance travel.
Model
Operation Area: Airside
Dring: LHD/LRD
General
Body structure: Monocoque
Floor structure: Full low floor
Overall size (mm): 12890 x 3050 x 3080

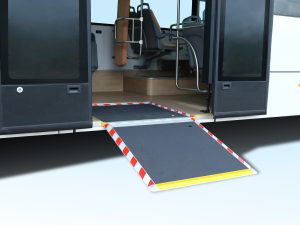

Seat plan: 8 seats, 1 driver, 1 wheelchair user area
Passenger capacity: Up to 110
Battery (Kwh): CATL, LFP, 210 kWh
Maximum speed (km/h): 60 (adjustable for each order)
Brake system: WABCO
Electric motor: DANA
Operational temperature: -40°C to +40°C (adjustable up to 60°C)
Body
1st Door: Aluminium alloy pneumatic anti-pinch double outer swing door
2nd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
3rd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
Side window: Tempered glass

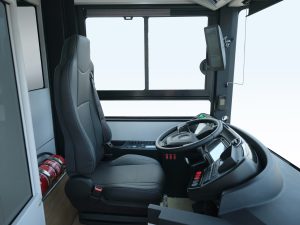

Driver seat: Pneumatic suspension driver seat
Passenger seat: Ergonomic seat
Rear mirror: Iron-framed rear mirror (with defrost), Aluminium bracket rear mirror (with defrost)
Passenger area: Cooling power 32KW, Heating power 28KW, High voltage electric defroster
Driver area: Cooling power 5KW, heating power 4KW
Heating and Defrosting: Low voltage, electric defrost, High voltage, electric defrost
Electrical instrument: ACTIA Dashboard
Audio/Video system: Hard disk player, MP3 player, DVD player
Monitoring: Middle door camera + reverse camera
Route display: Front, rear, side, interior above gangway
EPB: Electronic Parking Brake
