DinoRex – Electric Apron Bus

Company	DINOBUS
Product code	DB14

Images

Description

Specifications

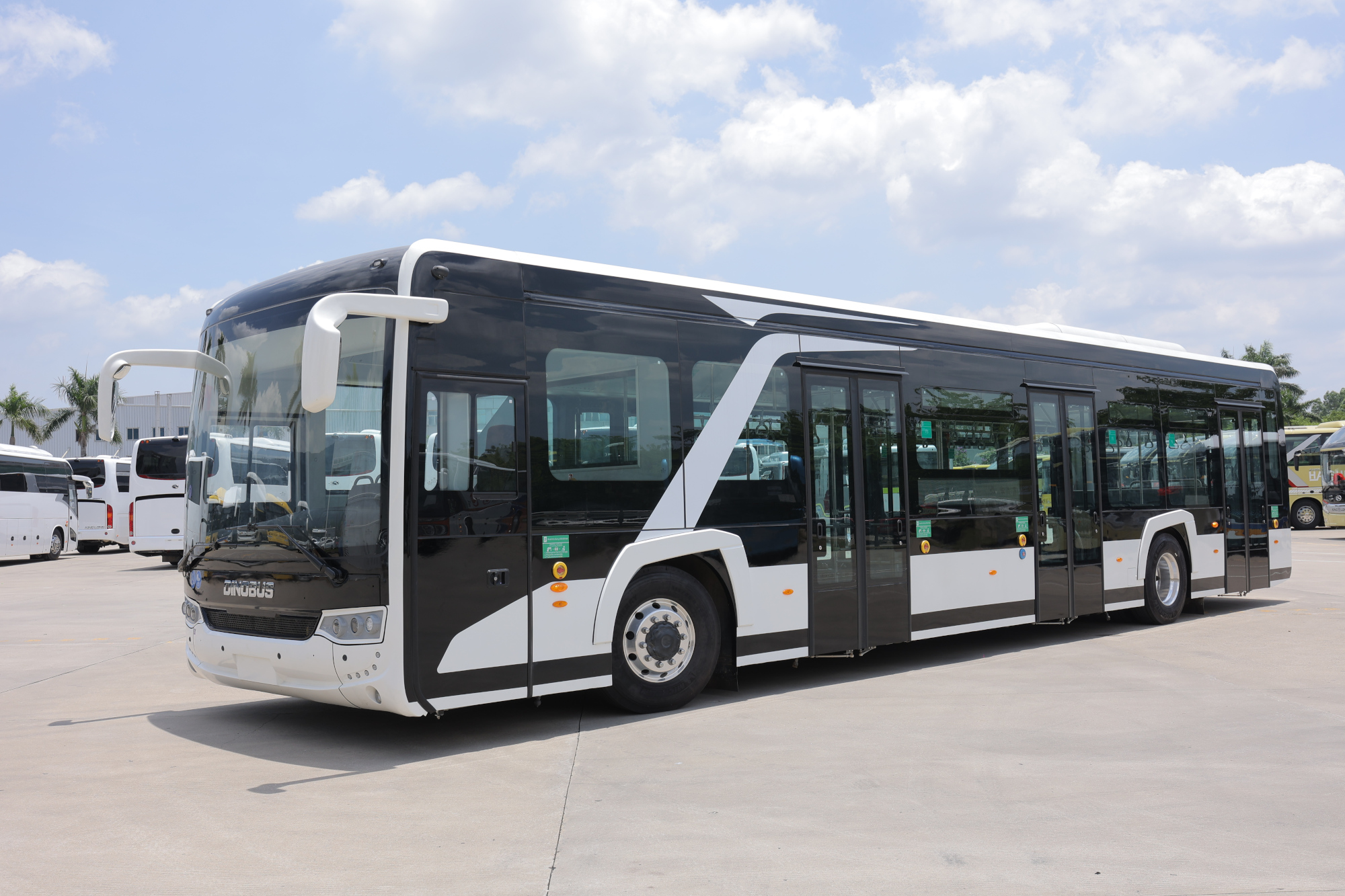

The flagship DinoRex is an efficient, zero-emission electric apron bus model for airside operations. The fast-charging battery and spacious capacity are the hallmarks of the DinoRex’s ability to reduce fleet sizes and roundtrips. Its 14-meter frame and 3.4-meter height accommodates up to 110 passengers, complete with a designated wheelchair space. Ergonomic air circulation and high-powered cooling and heating systems ensure adaptability even in extreme climates. Engineered for a seamless transition to eco-friendly airport ground operations.

Model
Operation area: Airside
Driving: LHD/LRD

General
Body structure: Monocoque
Floor structure: Full low floor
Overall size (mm): 13980 x 3050 x 3400
Seat plan: 8 seats, 1 driver, 1 wheelchair user area
Passenger capacity: Up to 110
Battery (Kwh): CATL, LFP, 210 kWh
Maximum speed (km/h): 60 (adjustable for each order)
Brake system: WABCO (ABS)
Electric motor: DANA
Operational temperature: -40°C to +40°C (adjustable up to 60°C)
Suspension system: Total of 6 intelligent air suspensions
Kneeling: ECAS
Braking: EBS3+ESC
Steering pump: Dual-Power Electric
Tires: Michelin, tubeless

Body
1st Door: Aluminium alloy pneumatic anti-pinch double outer swing door
2nd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
3rd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
Side window: Tempered glass
Driver seat: Pneumatic suspension driver seat
Passenger seat: Ergonomic seat
Rear mirror: Iron-framed rear mirror (with defrost), Aluminium bracket rear mirror (with defrost)
Passenger area: Cooling power 32KW, Heating power 28KW
Driver area: Cooling power 5KW, heating power 4KW
Heating and Defrosting: Low voltage, electric defrost, high voltage, electric defrost
Electrical instrument: ACTIA Dashboard
Audio/Video system: Hard disk player, MP3 player, DVD player
Monitoring: Middle door camera + reverse camera
Route display: Front, rear, side, interior above gangway
EPB: Electronic Parking Brake
