DinoTera – Electric Bus
Company | DINOBUS |
---|

Images

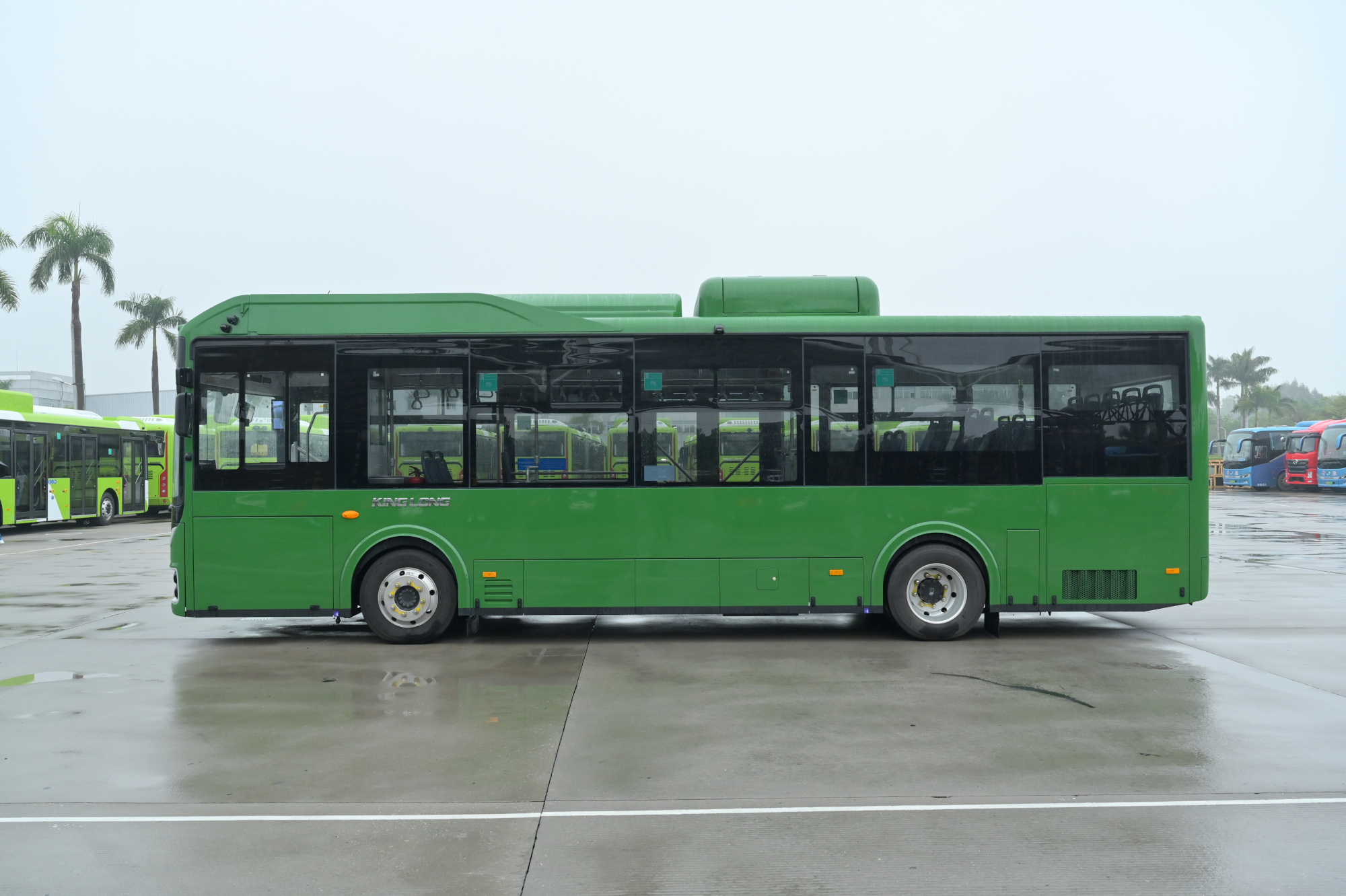

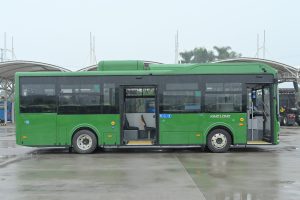

The DinoTera is a versatile design that is compatible with both airside and landside passenger transportation. This model is a much more compact approach to an electric city bus, as it spans 9.2 meters in length and 2.55 meters in width. The layout provides a maximum capacity of 62 passengers onboard, a comfortable driver area, and the option of an additional wheelchair space. The DinoTera is emission free and optimizes its battery charge and interior space to provide the best experience.
General
Body structure: Monocoque with full low floor
Overall size (mm): 9180 X 2450 X 3240
Seat plan: 25 seats, 1 driver, 1 wheelchair user area, 24 standing places
Battery (Kwh): CATL LFP 210.6 or CATL LFP 280
Maximum speed (km/h): 85 (adjustable for each order)
Manufacturing year: 2023
Operational temperature: -40°C to +60°C
Motor: Electric Dana Motor, Triple-phase asynchronous
Suspension: Total of 6 intelligent air suspensions
Brake: Disc Brake
Front Axle: Chinese independent front Axle
Rear Axle: Chinese Dong Feng rear Axle
ABS: EBS, TCS, ABS
Steering Gear: BOSCH Power Steering
Tire: 265/70R19.5
ECAS: WABCO
Body

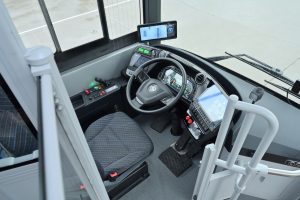

Driver Area: King Long Q15-2 air damping driver seat
Passenger Seat: Seat with Cushion
Dashboard: ACTIA, with integrated steering column
Rear Mirror: 2 Exterior reversible, heated, convex, rectangular, electrically adjustable, removable mirrors
Handrail: Stainless steel handrail with bell push
Curtains: No curtains
Driver Blinds: Manual sunshade for windscreen
1st Door: Inner-swing single door – 900 mm.
2nd Door: Inner-swing double door – 1300 mm.
Driver Door: Locked from interior, exterior opened from the outside
Wheelchair area: ACTIA Straps, rails & other wheelchair attachment equipment must be installed for disabled/special needs wheelchair users
Wheelchair Ramp: Manual wheelchair ramp at the middle door
Floor Cover: Chinese anti-grinding floor cover
Body Frame: Tube treated in King Long and weld together
Body Frame Metal: Q235, Q245, Q700 or better
Anti-Corrosion Coating: Adapted to protect the body frame from -30° C to +45° C
Sound, Thermal Insulation: Floor, sides, and ceiling equipped
Front Windshield: The front windshield is heated by air
Driver Side Window: Driver’s side windows heated by electricity
Side Window: Made of safety tempered glass packages & tinted
Electricity
Air Conditioning: XUE YUAN Cooling and heating A/C
Heater: CATL LFP 210.6 kWh, 60 litres
Defroster: Zhengzhou YU SHENG
Stop Button: TSL Stop button
USB Charging Unit: Minimum 5 pcs. USB charging sockets
WIFI: Equipped with Wi-Fi
Can Bus: ACTIA
Tachograph: VDO
TMPS: With TMPS
Battery Charger: 1 socket at rear right side, 1 socket at front right side, CCS – combo 2 EU standard charger (Max. charging power: 150KW DC)
