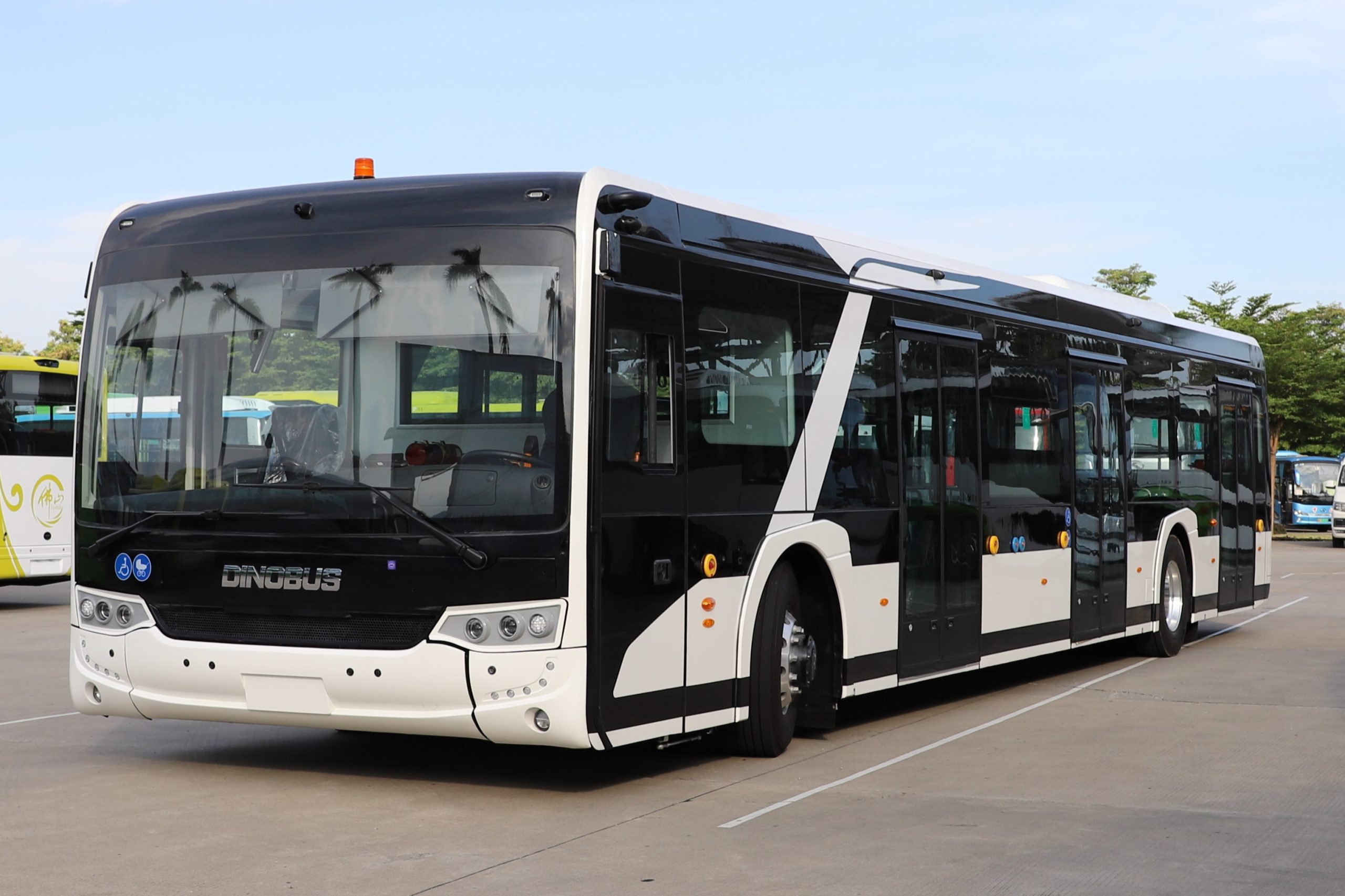

DinoVeloci – Electric Apron Bus

Description
Specifications

The DinoVeloci electric apron bus spans 14 meters in length and 3.08 meters in height. It accommodates the same passenger capacity as our DinoRex at 110 passengers, with a more compact body design. An ideal choice for airports seeking to optimize space without compromising on service. The bus is equipped with a standard battery of 210 Kwh and can be configured to a 140 or 290 Kwh battery depending on the airport’s needs. This bus model is ideal for reaching longer distances with less environmental impact.

Model
Operation Area: Airside
Dring: LHD/LRD

General
Body structure: Monocoque
Floor structure: Full low floor
Overall size (mm): 12890 x 3050 x 3080
Seat plan: 8 seats, 1 driver, 1 wheelchair user area
Passenger capacity: Up to 110
Battery (Kwh): CATL, LFP, 210 kWh
Maximum speed (km/h): 60 (adjustable for each order)
Brake system: WABCO
Electric motor: DANA
Operational temperature: -40°C to +40°C (adjustable up to 60°C)

Body
1st Door: Aluminium alloy pneumatic anti-pinch double outer swing door
2nd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
3rd Door: Aluminium alloy pneumatic anti-pinch double outer swing door
Side window: Tempered glass
Driver seat: Pneumatic suspension driver seat
Passenger seat: Ergonomic seat
Rear mirror: Iron-framed rear mirror (with defrost), Aluminium bracket rear mirror (with defrost)
Passenger area: Cooling power 32KW, Heating power 28KW, High voltage electric defroster
Driver area: Cooling power 5KW, heating power 4KW
Heating and Defrosting: Low voltage, electric defrost, High voltage, electric defrost
Electrical instrument: ACTIA Dashboard
Audio/Video system: Hard disk player, MP3 player, DVD player
Monitoring: Middle door camera + reverse camera
Route display: Front, rear, side, interior above gangway
EPB: Electronic Parking Brake
