‘ECO TUG 180’     Ground Power Unit Mobile 400 Hz eGPU

Company AEME GSE
Product code AEME GSE ECO TUG 180

Images

  • AEME
Description
Specifications

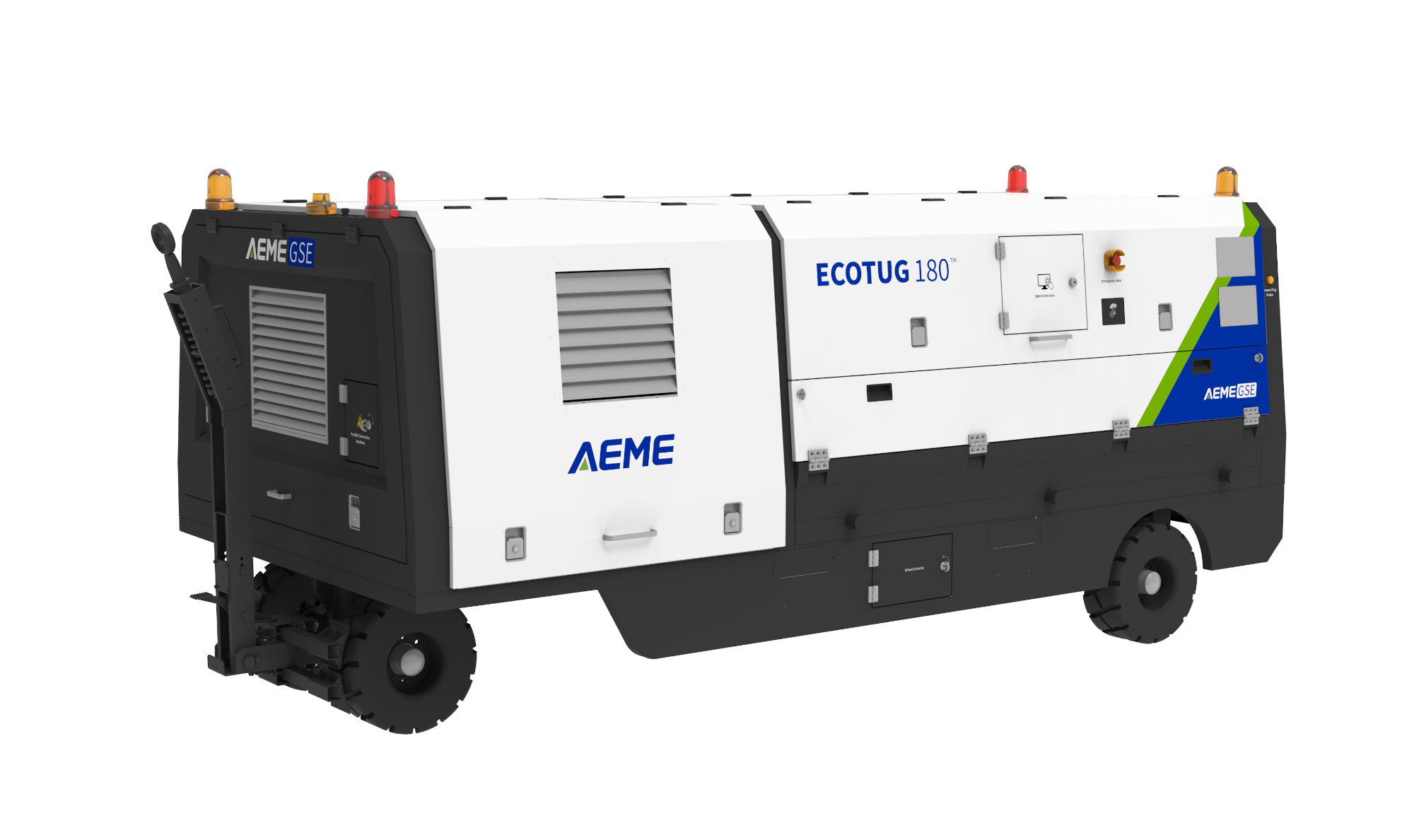

ECOTUG 180 battery-powered eGPU delivers clean and stable 400Hz power. This all-in-one unit integrates a high-performance power system with a towable chassis. As the latest generation of AEME mobile eGPUs, the ECOTUG integrates LFP batteries with comprehensive battery management system. It supports flexible deployment and can be connected to a cloud platform for user-friendly digital operation. The advanced fire protection system provides automatic suppression at both the battery pack and system levels.

Innovation at the Core

  • The latest ECOTUG features AEME’s proprietary S400 solid-state GPU as the converter, integrated with high-performance CATL battery(BC3/BC5). It delivers industry-leading power stability, superior safety, and high energy density.

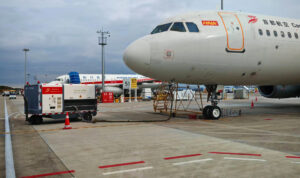

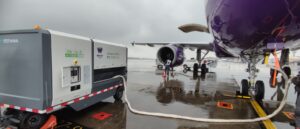

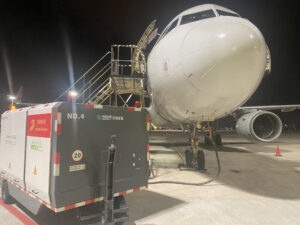

  • The ECOTUG 90/180 optimizes performance to meet the standards of the global aviation industry. It is ideal for power supply at both contact and remote stands, as well as MRO operations.

Leading Battery Technology

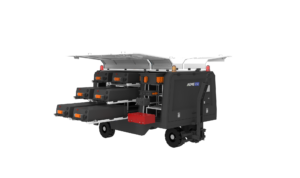

  • Combining CATL’s leading LFP batteries(BC3/BC5) with advanced power electronics and BMS.
  • High energy density, high safety, and strong environmental adaptability.

Flexibility

  • The ECOTUG eGPU supports mobile chassis configurations to suit various operational scenarios. It addresses power challenges at remote stands and ensures rapid deployment in emergencies.

Reliable Power Supply

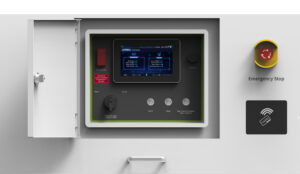

  • The ECOTUG eGPU provides stable power. The battery management system supports parameter traceability. The cloud platform helps operators track system status efficiently.

Enhanced Safety

  • The battery cabinet features automatic fire suppression. A composite detector is installed inside the battery pack. An external fire switch is provided for emergency manual operation, offering dual protection.

Certifications & Standards
CE
EMC: EN IEC 61000-6-2: 2019, EN IEC 61000-6-4: 2019
LVD: EN 62477-1: 2012 + A11: 2014 + A1: 2017 + A12:2021
MD: EN ISO 12100:2010, EN 60204-1:2018, EN 1915-1:2023, EN 1915-2:2001+A1:2009, EN 12312-20:2005+A1:2009
ISO6858-2017
MH/T 6018-2014
Mandatory Tests for LiFePO₄ Lithium-Ion Batteries
Charging Capability Test
UN38.3
LiFePO₄ Battery Cycle Life Test at Room and High Temperatures
Battery Cell High & Low Temperature Discharge Performance, Storage Life, Abuse Test

DC Charging
Maximum charging: 700 V
Charging Power: 150 kW
Maximum charge current: 250 A
400 Hz Output
Rated Capacity: 180 kVA
Rated Voltage: 115/200 V AC
Rated Frequency: 400 Hz
Level of Protection: IP55
Operating Temperature: -20°C-55°C
Relative humidity: 10%-100% (no condensation)
Noise Level: <70dB
Altitude: ≤2000m
4500mm*1790mm*1750mm
4120kg
