'S400'     Solid-State GPU

Company AEME GSE
Product code AEME GSE S400

Images

Description
Specifications

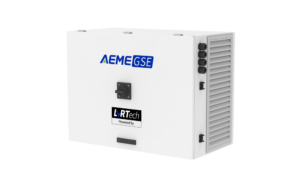

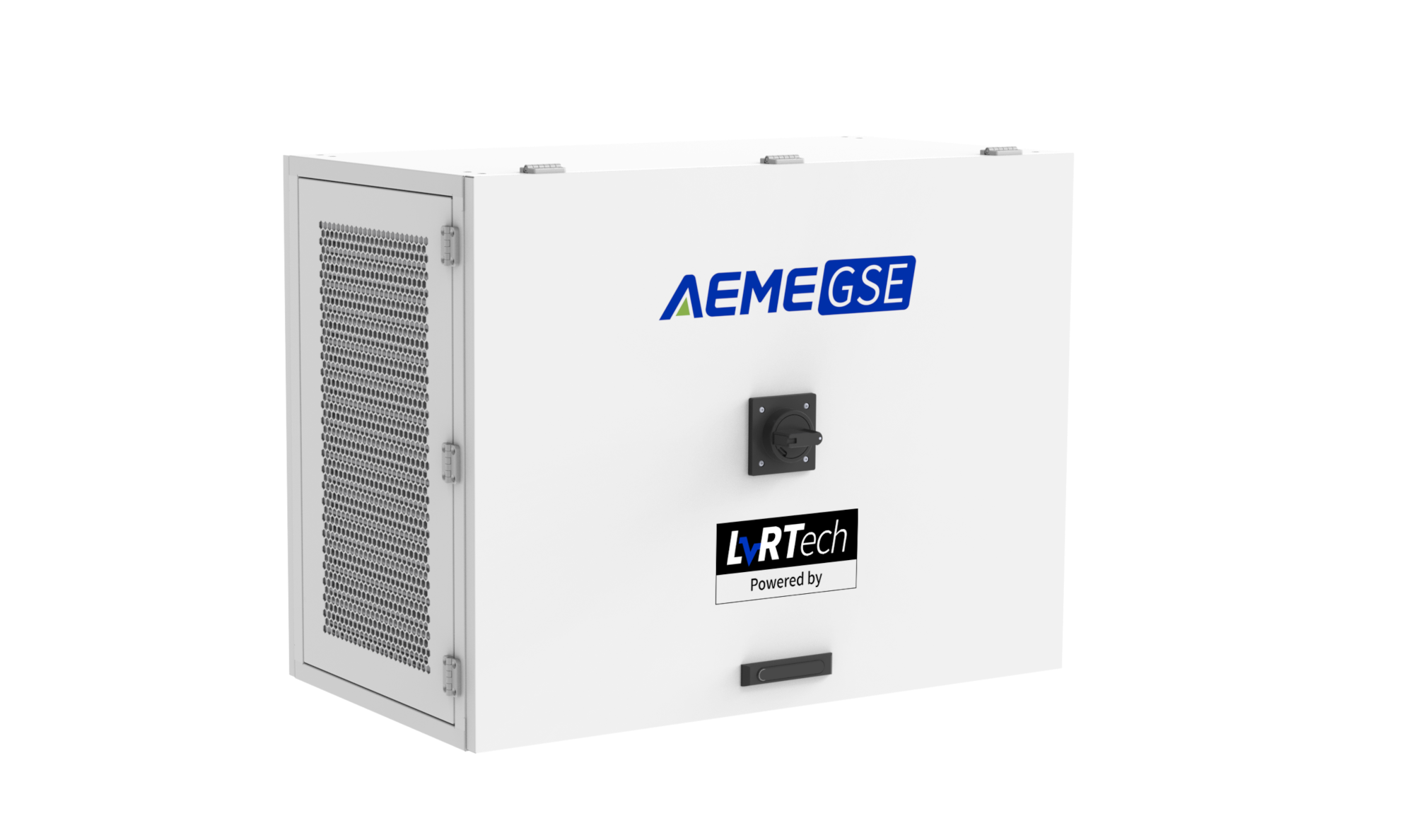

The S400 is an electric GPU designed to deliver consistent 400Hz power supporting flexible installations. It is widely applicable to both remote and contact stands, as well as bridge-mounted installations.

At the heart of the S400 lies AEME’s independently developed voltage stability solution:  LVRTech (Low-Voltage Ride-Through). This technology is engineered to maintain voltage stability and ensure reliable power delivery even under unbalanced load conditions.

What is LVRTech and How Does It Work?
LVRTech enables the system to ride through short-term voltage dips without interruption. For example, when the load power is less than 50 kW and the input voltage drops to 40% (input voltage at 160 V), the unit can continue operating for 2 seconds, significantly outperforming traditional solutions. This capability not only protects connected equipment but also provides a critical window for maintenance intervention.

  • High scalability

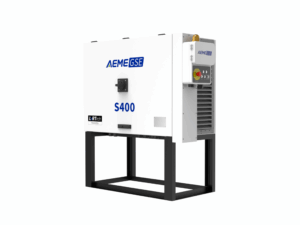

Supports diverse installations, widely applicable to contact/remote stands, and adaptable across mobile/-fixed, floor-mounted, and bridge-mounted setups.

  • Flexible Installation & Easy Maintenance

Compact, modular architecture enables flexible deployment and simplifies maintenance and operations.

  • Comprehensive Protection

Includes over/under voltage, overcurrent protections to ensure safe and reliable operation.

  • Cloud-Based Management

Connected to a cloud platform for digital monitoring, full-process diagnostics, and precise fault detection, enhancing overall operational efficiency.

Certifications & Standards
CE
LVD: EN 62477-1: 2012 + A11: 2014 + A1: 2017 + A12:2021
EMC: EN IEC 61000-6-2: 2019, EN IEC 61000-6-4: 2019
REACH
RoHS
ISO6858-2017
MH/T 6018-2014

AC Input
Voltage: 3×400Vac±15%
Frequency: 50/60Hz±5Hz
Power factor: ≥0.99
400 Hz Output

Voltage: 3×115/200Vac
Rated capacity: 90 kVA
Rated frequency: 400 Hz
Power factor: 0.7-1
DC component: ±0.1V
Voltage THD: <2%
Crest factor: 1.414±3%
Phase voltage unbalance: <1%
Steady-state frequency: 400Hz
Voltage modulation amplitude:  <1%
Phase shift: 120°±0.1°
Level of Protection: IP55

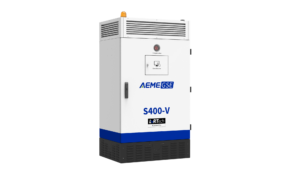

1050mm*580*800mm (H)/800*580*1450mm(V)
400(H)/420kg(V)

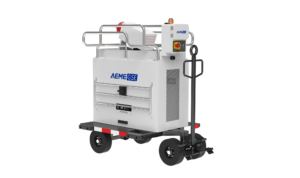

Towed: 1360mm*1190*1630mm(H), 552kg
