‘S400-M’     Solid-State GPU

Company AEME GSE
Product code AEME GSE S400-M

Images

Description
Specifications

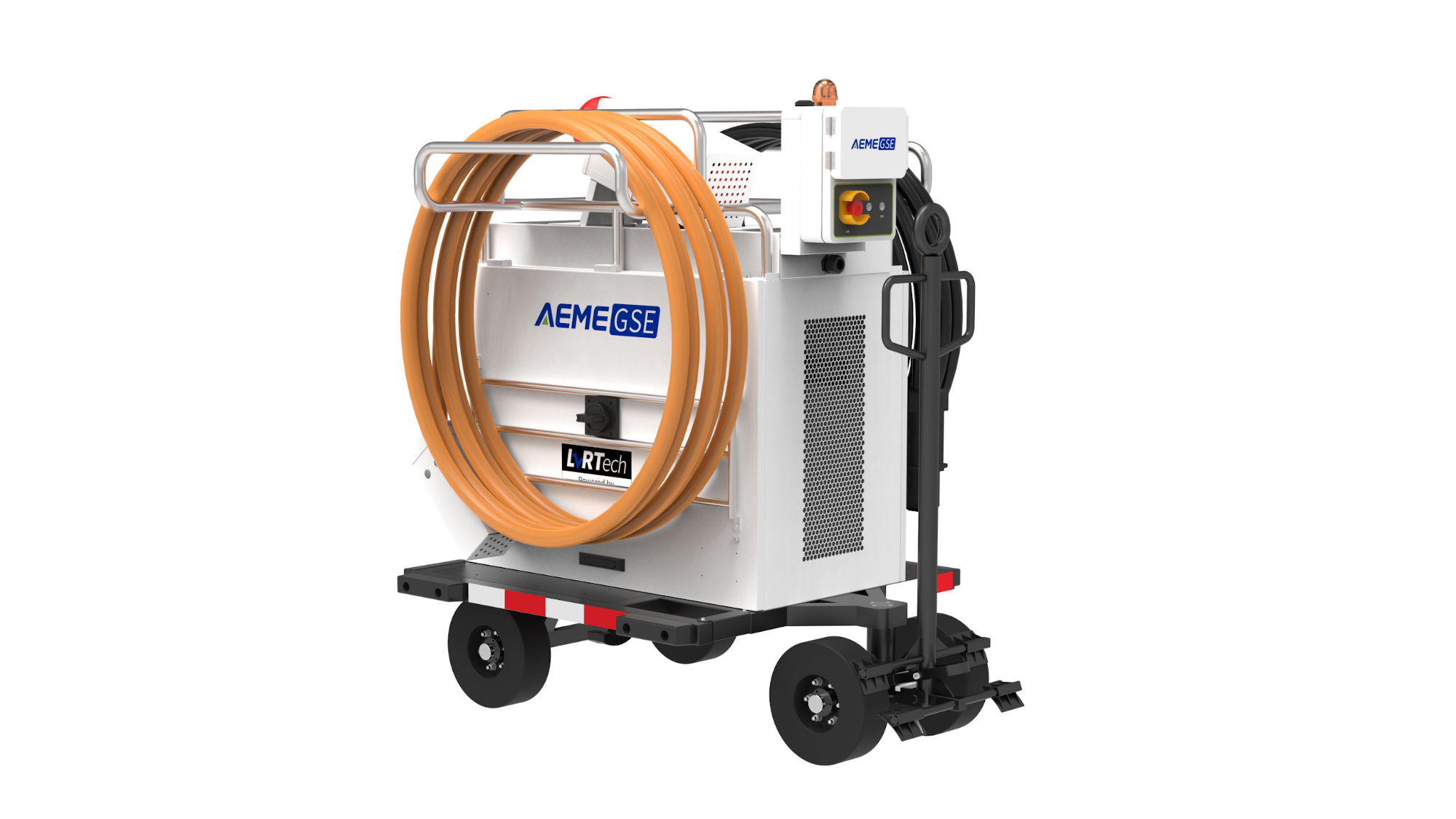

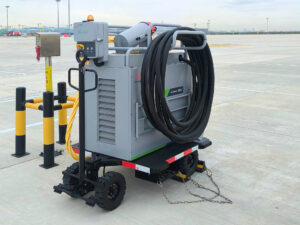

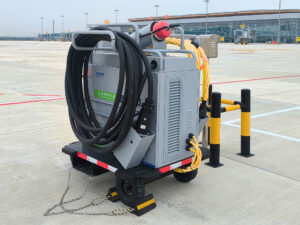

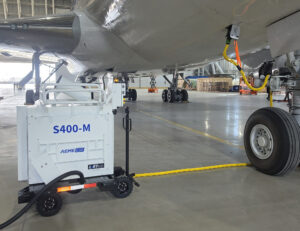

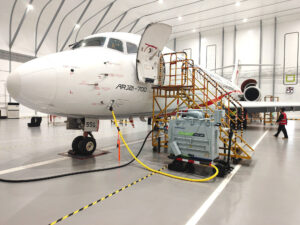

The S400-M solid-state power unit offers flexible configuration options, including a towable trailer, making it well-suited for both remote and contact stand operations.

At the heart of the S400-A lies AEME’s independently developed voltage stability solution LVRTech (Low-Voltage Ride-Through). This technology is engineered to maintain voltage stability and ensure reliable power delivery.

What is LVRTech and How Does It Work?
LVRTech enables the system to ride through short-term voltage dips without interruption. When the load power is below 50 kW and the input voltage dips by 60% (input voltage 160 V), the unit can continue operating for 2 seconds. This capability not only protects connected equipment but also provides a critical window for maintenance intervention.

Flexible Installation & Easy Maintenance
Compact, modular architecture enables flexible deployment and simplifies maintenance and operations.

Comprehensive Protection
Includes over/under voltage, overcurrent protections to ensure safe and reliable operation.

Cloud-Based Management
Connected to a cloud platform for digital monitoring, full-process diagnostics, and precise fault detection, enhancing overall operational efficiency.

High scalability
Supports diverse installations, widely applicable to contact/remote stands, and adaptable across mobile/-fixed, floor-mounted, and bridge-mounted setups.

Certifications & Standards
CE
LVD: EN 62477-1: 2012 + A11: 2014 + A1: 2017 + A12:2021
EMC: EN IEC 61000-6-2: 2019, EN IEC 61000-6-4: 2019
REACH
RoHS
ISO6858-2017
MH/T 6018-2014

AC input
Voltage range: 3×400Vac±15%
Frequency range: 50/60Hz±5Hz
400Hz output
Rated voltage: 3×115/200Vac
Rated capacity: 90kVA
Rated frequency: 400Hz
IP55
1360*1190*1630mm, 560kg (with remote control box, trailer)
Standard Cable:
10m 400Hz output cable15m input cable
Other cable options are available upon request.
