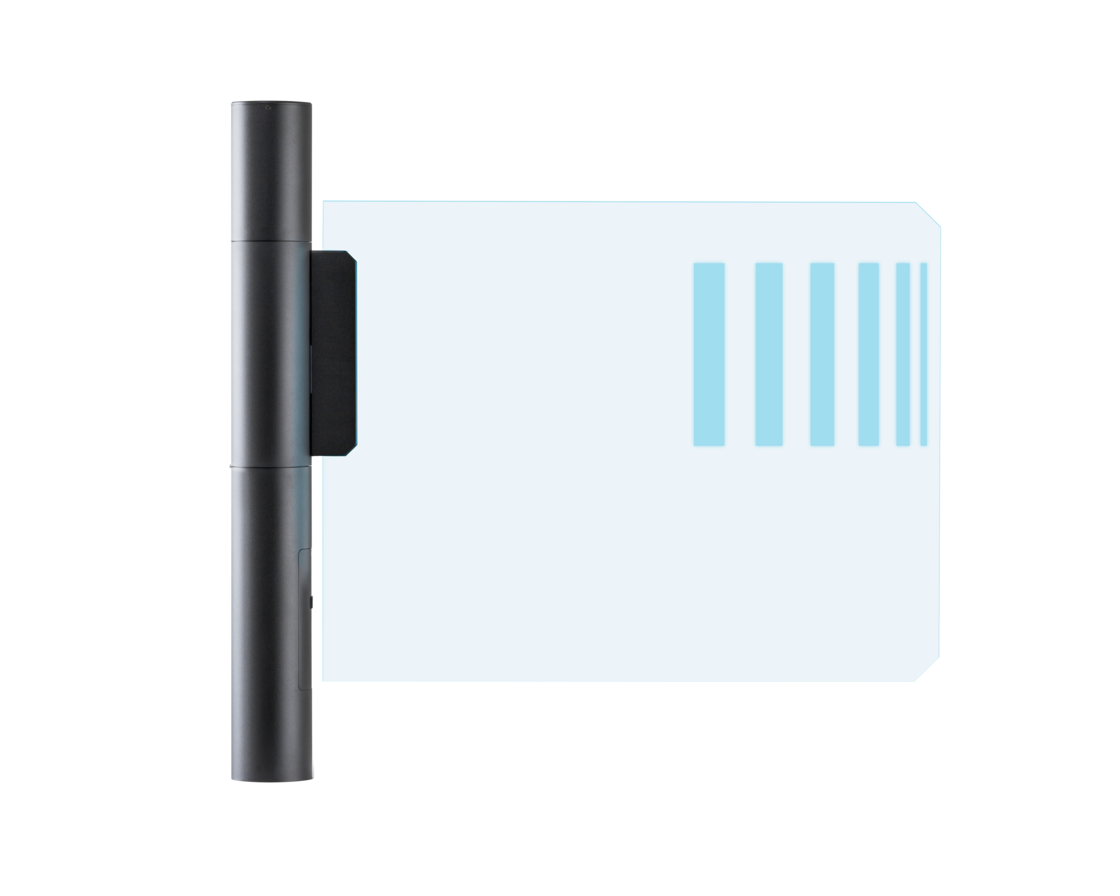

Galaxy Port – State-of-the-art technology for barrier-free access

  • Toughened safety glass swivel arms for passages up 1,200 mm wide
  • LED glass dome with integrated RFID reader
  • Sensor-controlled two-way direction detection, double-sided

Galaxy Port access points open in two directions either via a control panel or an RFID reader integrated in the glass dome. The integrated sensor system detects which direction the toughened safety glass swivel arm needs to open in.

Product details

Stainless steel upright, toughened safety glass swivel arm is opened using state-of-the-art microprocessor-controlled play-free drive technology, adjustable opening period, impulse-controlled closing function, programmable WEAC control with web server option for control via a smartphone, integrated alarm system (e.g. alarm is triggered in the event of unauthorised access), climb over / crawl under alarm, release and alarm indicator integrated in glass dome, LED operating status indicator as swivel arm light.

Passage rate
One-time release for up to 10 people per minute (depending on the concept)

Installation surface
Concrete foundation C25/30 or ground with at least a minimum compressive strength of 25 N/mm² of compressive strength, flatness tolerance of +/- 5 mm, finished floor.

Upright: Stainless steel sanded and brushed or coloured plastic powder coating.

Sensor system
Light barriers, ultrasound sensor and ceiling sensor system.

Operating status indicator

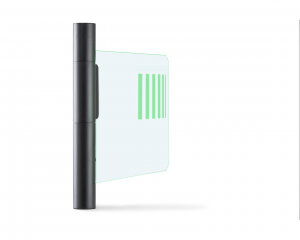

The operating status in both directions is signalled on the glass dome by means of the integrated LED lighting.

Interfaces, connecting devices
Potential-free make contact, control via network. Connection terminal strip for easy cabling of peripheral devices. If possible, the peripheral device is integrated into the housing. In combination with the Facility Management Control Unit (FMCU), additional devices and databases can also be built in (see Accessories: FMCU).

After release via the integrated RFID reader, radar or control panel, the swivel arm opens in the direction of passage. Sensors on both sides detect from which side a person is coming. After the user has passed the system the swivel arm completely closes again. The integrated sensors monitor passage when the arms are open and when they are closed. LEDs in the glass dome, and at the swivel arm with toughened safety glass, signal release and tampering. All attempts at tampering and unauthorised access are prevented and indicated by the alarm.Accessories
Control program for the external PC, control panel, emergency OPEN button, external release button, monitoring sensor, control panel, control program for the external PC, WEB control panel, base support console, FMCU LCD colour display with separate base, Galaxy Gate, channelling elements, holders for peripheral devices. Can be released in two directions using various external readers, a control panel, or an integrated RFID reader.
