HIGH-SECURITY BARRIER
| Company | ZABAG |
|---|---|
| Product code | Z-HSTS 8000 |
Images

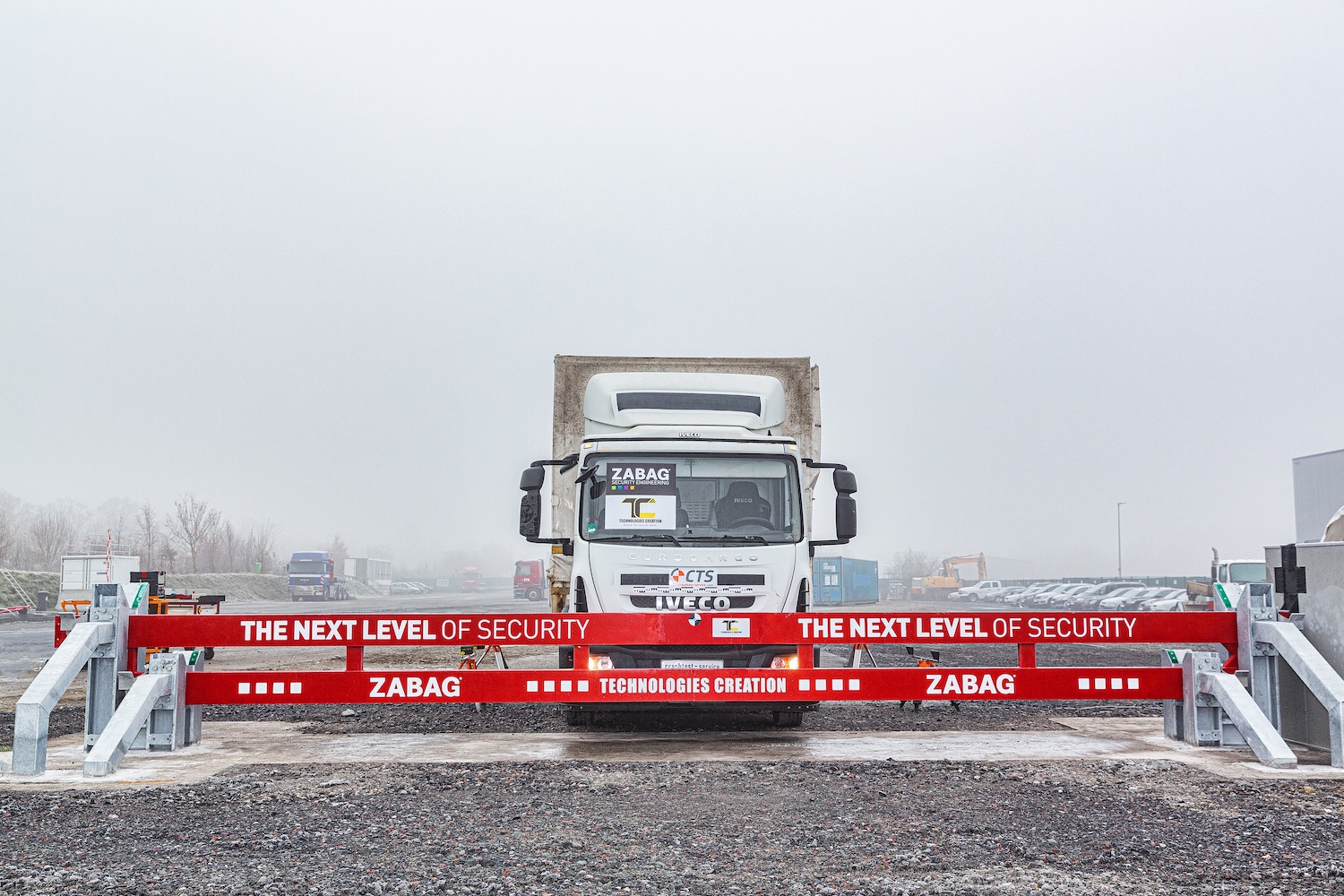

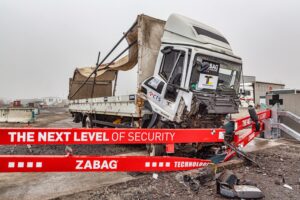

The Z-HSTS 8000 high-security barrier has successfully passed crash testing and is designed to protect access roads and sensitive sites against vehicle-ramming attacks and deliberate intrusion attempts. It is also ideally suited for high-security applications, such as preventing vehicle-assisted escape attempts at correctional facilities.
Thanks to its innovative design, the barrier can be installed in urban environments where deep excavation for retractable bollards is impractical or impossible. This makes the Z-HSTS 8000 an effective solution for locations with limited installation depth. The barrier can be seamlessly integrated into existing security systems through individually configurable control solutions. Its modular design allows for flexible adaptation to different passage widths and site-specific requirements, providing a reliable and effective security solution for a wide range of high-security applications
Airports in 8 countries are equipped with ZABAG special gate solution including 96m TERRA in Changi / Singapore
APPLICATIONS
The Z-HSTS 8000 barrier ideally suited for securing high-risk and security-sensitive sites across all sectors of critical infrastructure, as well as other facilities requiring a high level of perimeter protection.
- Military facilities
- Government and industrial
- buildings
- Embassies
- Research centres
- Critical infrastructure facilities
- Data centres
- Airports
- Ports
- Hospitals
- Hotels
Special solutions, different sizes on request!
Boom length
up to 8 m Barrier
Arm height
1.06 m Installation depth 1.5 m
Certified to: ASTM F2656/F2656M-18a IWA 14-1:2013 Truck weight:
7.2 t Speed: 48 km/h
Kinetic energy: 679 kJ
Static equivalent load: 339 kN
Penetration depth: 0,3 m
Corrosion protection
System 3Plus – All steel components that are not hot-dip galvanized are treated with a high-quality powder coating. The coating system consists of a two-stage pretreatment with shot blasting and zinc spraying, followed by an epoxy-polyester powder coating and thermal curing. The coating meets the highest requirements for durability and is resistant to scratches, abrasi on, solvents, chemicals, and oils.
Colour
As required (RAL standard chart or special colours); standard: fine texture
Drive system
Electro-hydraulic with emergency opening option
Control
Microprocessor control, frequency converter for soft stop/soft start
Safety device
In accordance DIN EN 12453
Produced
In accordance with DIN EN 13241
Certification
TÜV-tested DIN EN ISO 9001:2015
