TURNSTILE WITH SEPARATE BIKE ENTRY
| Company | ZABAG |
|---|---|
| Product code | ZENTRA BIKE |
Images

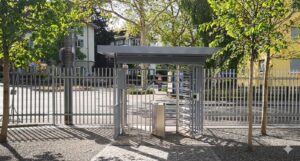

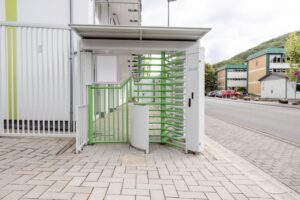

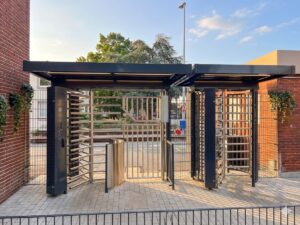

The ZENTRA-BIKE provides a secure and convenient access solution for cyclists and pedestrians, combining controlled pedestrian access with a dedicated cycle lane.
When a bicycle is detected by the in duction loop, the bicycle and pedest rian gates are automatically unlocked after activation via card reader or push button, ensuring smooth and efficient entry to the premises. Designed for reliable, low-main tenance, and energy-efficient ope ration, the ZENTRA-BIKE can be customised with integrated lighting, directional indicators, and various material finishes to meet individual project requirements.
ADDITIONAL EQUIPMENT
- Weather protection roof / flat roof with parapet
- Rotor electrocally polished
- Bike door and locking element electrocally polished
- Push-button, card reader
- Intercom
- Separate card reader posts
- Control cabinet
EH variant
- Semi-mechanical with electro magnetic locking
- Can be controlled independently for entry and exit • Features a robust pawl mechanism with an anti-return device
- Limit-point locking prevents trapping in the event of a power failure or unauthorised access attempt
E variant
- Motor-driven with servo position motor
- Can be controlled in both directions
- Speed can be controlled by the user at any time
- Limit position interlock pre vents trapping in the event of a power failure or unauthorised access
Airports in 8 countries are equipped with ZABAG special gate solution including 96m TERRA in Changi / Singapore
APPLICATIONS
The ZENTRA BIKE turnstile ideally suited for securing high-risk and security-sensitive sites across all sectors
of critical infrastructure, as well as other facilities requiring a high level of perimeter protection.
- Military facilities
- Government and industrial
- buildings
- Embassies
- Research centres
- Critical infrastructure facilities
- Data centres
- Airports
- Ports
- Hospitals
- Hotels
Special solutions, different sizes on request!
Corrosion protection
System 3Plus – All steel components that are not hot-dip galvanized are treated with a high-quality powder coating. The coating system consists of a two-stage pretreatment with shot blasting and zinc spraying, followed by an epoxy-polyester powder coating and thermal curing. The coating meets the highest requirements for durability and is resistant to scratches, abrasion, solvents, chemicals, and oils. as required, to a RAL standard colour chart or custom colours; standard: textured finish
Power supply / connected load
230 V 50 Hz / 138 VA
Rotor
Ø 1,300 mm
Turning cycle
3 x 120°
Total Width
1,500 mm (without roof)
Total Height
2,274 mm (without roof)
Passage Height
2,060 mm
Safety Device
based on DIN EN 17352
Certification
DIN EN ISO 9001:2015
