ZENTRA RC 2

Company ZABAG
Product code BURGLAR-RESISTANT TURNSTILE

Images

Description
Specifications

ZABAG manufactures and supplies turnstile systems with special protective features designed to withstand forced entry attempts.

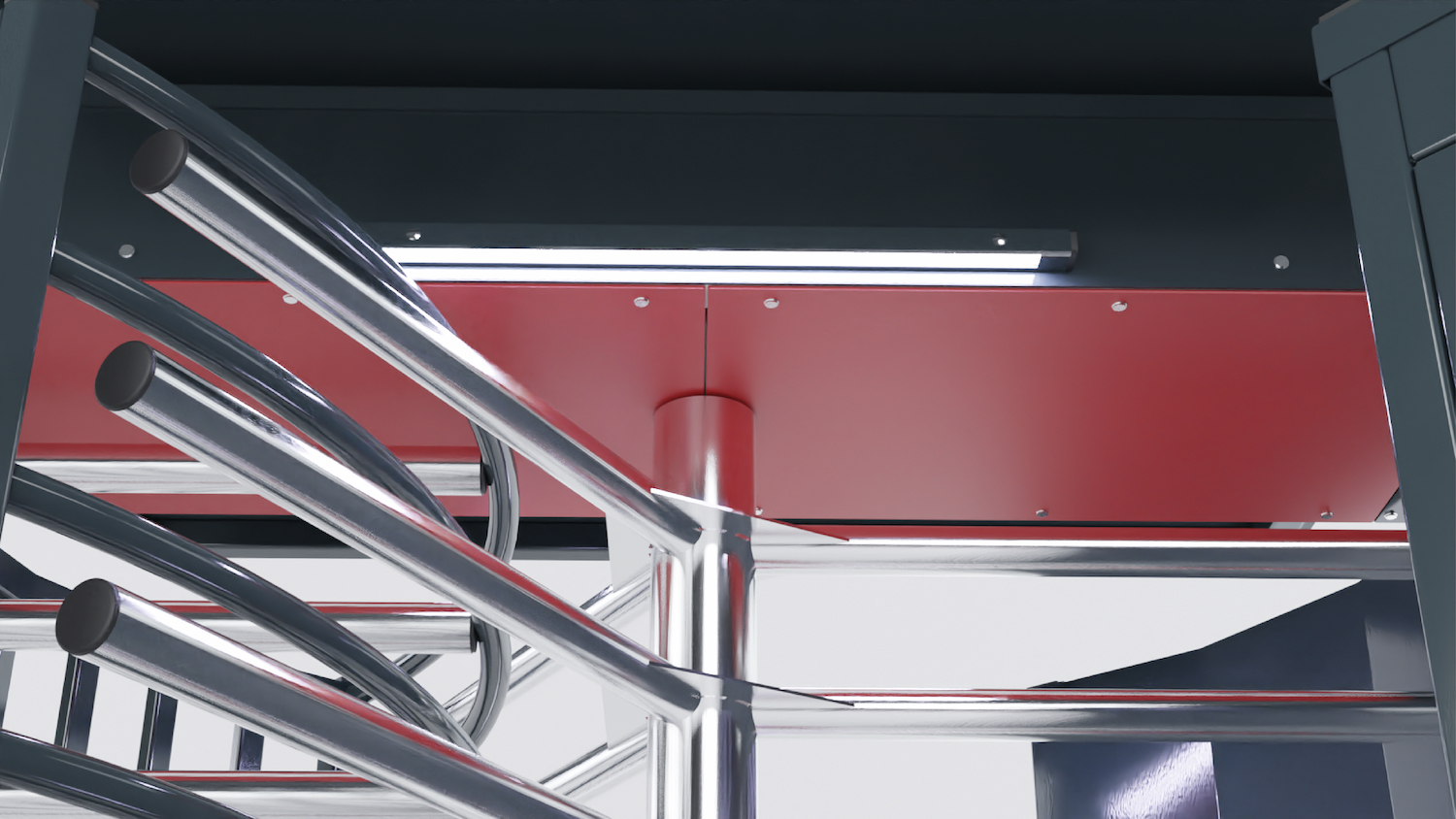

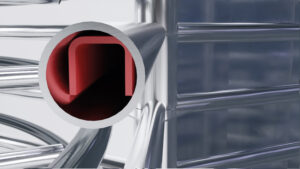

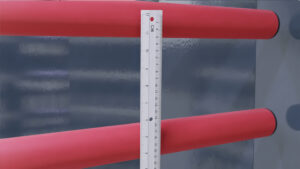

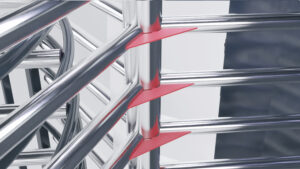

With reinforced components, RC-compliant bars, reduced spacing, and tamper-resistant access points, the ZENTRA EH 120 RC 2 reliably meets the requirements of resistance class RC 2, providing a robust and customisable security solution.

It is particularly well suited to security-critical areas where the highest standards of stability and protection are required. Precision engineering and durable construction ensure reliable, long-lasting, performance in demanding daily operation.

EH-variant

  • Semi-mechanical with electro magnetic locking
  • Can be controlled independently for entry and exit
  • Features a robust pawl mechanism with an anti- return device
  • Limit-point locking prevents trapping in the event of a power failure or unauthorised access attempt

Certification in accordance with DIN EN 1627 test method RC2:

The system withstood physical force and simple tools for three minutes (total test time: 15 min.)

Airports in 8 countries are equipped with ZABAG special gate solution including 96m TERRA in Changi / Singapore

APPLICATIONS

The ZENTRA RC 2 turnstile ideally suited for securing high-risk and security-sensitive sites across all sectors of critical infrastructure, as well as other facilities requiring a high level of perimeter protection.

  • Military facilities
  • Government and industrial
  • buildings
  • Embassies
  • Research centres
  • Critical infrastructure facilities
  • Data centres
  • Airports
  • Ports
  • Hospitals
  • Hotels

Special solutions, different sizes on request!

Corrosion protection
System 3Plus – All steel components that are not hot-dip galvanized are treated with a high-quality powder coating. The coating system consists of a two-stage pretreatment with shot blasting and zinc spraying, followed by an epoxy-polyester powder coating and thermal curing. The coating meets the highest requirements for durability and is resistant to scratches, abrasion, solvents, chemicals, and oils.

Colour
as required, to a RAL standard colour chart or custom colours; standard: textured finish

Power supply / connected load
230 V 50 Hz / 138 VA

Rotor
1,300 mm

Turning Cycle
3 x 120°

Total Width
1,500 mm (without roof)

Total Height
2,275 mm (without roof)

Passage Height
2,060 mm

Operation
Semi-mechanical with electromagnetic locking (EH)

Safety Device
based on DIN EN 17352

Certification SPECIAL FEATURES:
DIN EN ISO 9001:2015

Certification in accordance with DIN EN 1627 test method RC2:

The system withstood physical force and simple tools for three minutes (total test time: 15 min.)
