HIGH-SECURITY BI FOLDING GATE
| Company | ZABAG |
|---|---|
| Product code | FGZ CT |
Images

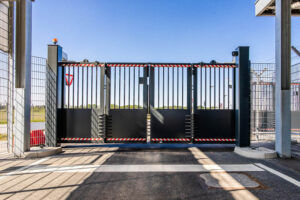

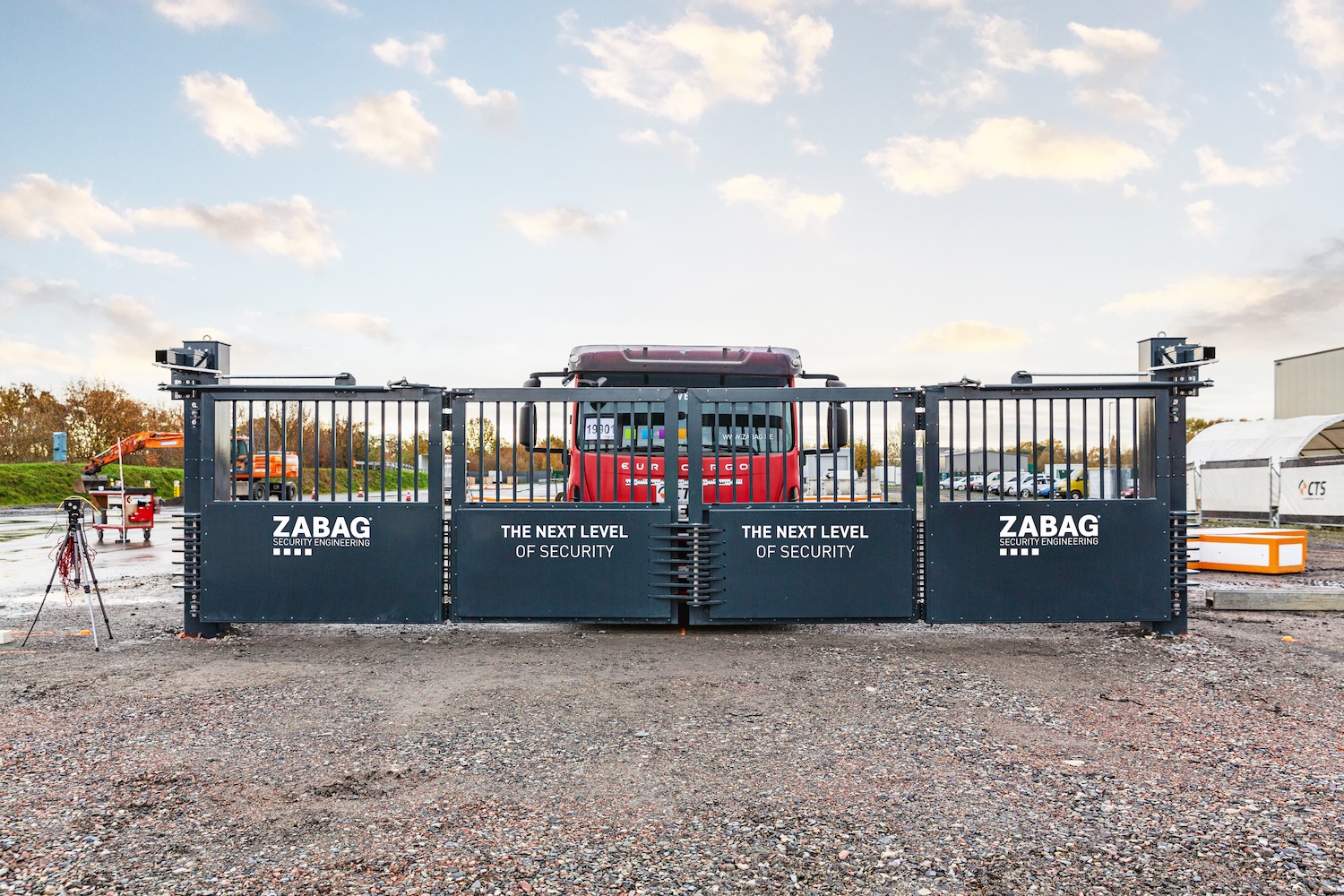

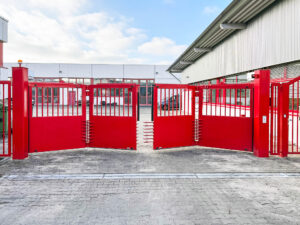

FGZ-CT high security bi-folding gate
With a maximum opening and closing speed of up to 1 m/s, the high-security FGZ CT bi-folding gate combines the operating speed of a barrier with the high level of security required for HVM (Hostile Vehicle Mitigation). At the same time, pedestrian access is securely prevented.
An innovative catch mechanism combined with a motorized locking device effectively prevents vehicle breakthrough attacks, providing reliable protection against unauthorized vehicle access.
OPTIONAL EQUIPMENT
- Customised infill solutions and surface finishes
- Overclimb protection with serrated strips, welded spikes, barbed wire or rotating spikes
The high-security FGZ CT gate is certified to international safety standards and has been tested and certified in accordance with internationally recognized vehicle impact standards, including ASTM F2656 and IWA for vehicle impact resistance
Airports in 8 countries are equipped with ZABAG special gate solution including 96m TERRA in Changi / Singapore
APPLICATIONS
The FGZ-CT gate ideally suited for securing high-risk and security-sensitive sites across all sectors
of critical infrastructure, as well as other facilities requiring a high level of perimeter protection.
- Military facilities
- Government and industrial
- buildings
- Embassies
- Research centres
- Critical infrastructure facilities
- Data centres
- Airports
- Ports
- Hospitals
- Hotels
Special solutions, different sizes on request!
Clear width (double leaf)
4 m to 8 m
Gate frame height
up to 3 m (special heights on request)
Installation depth
650 mm incl. 200 mm cover (e.g. asphalt)

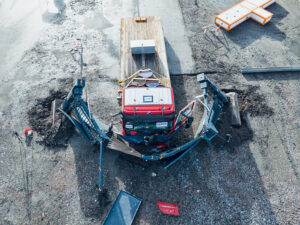

Certification in accordance with test standard: ASTM F2656/F2656M-20 IWA 14-1:2013
truck weight: 7.2 t
speed: 48 km/h
kinetic energy: 702 kJ
static equivalent load: 351 kN
Corrosion protection
System 3Plus – All steel components that are not hot-dip galvanized are treated with a high-quality powder coating. The coating system consists of a two-stage pretreatment with shot blasting and zinc spraying, followed by an epoxy-polyester powder coating and thermal curing. The coating meets the highest requirements for durability and is resistant to scratches, abrasion, solvents, chemicals, and oils.
Colours
Any RAL colours available, special colours upon request.
Standard surface: fine-textured powder coating
Drive system
Electro mechanical drive system, optimally adapted to the gate weight and frequency of use, with lockable emergency release
Control unit
Microprocessor-based control unit with frequency converter and three individually adjustable speed ramps for optimized acceleration, deceleration and smooth, controlled movement. This ensures exceptionally smooth and safe gate operation while reducing mechanical stress on the drive system and gate components
Safety equipment
in accordance with DIN EN 12453
Manufacturing
in accordance with DIN EN 13241
The high-security FGZ CT gate is certified to international safety standards and has been tested and certified in accordance with internationally recognized vehicle impact standards, including ASTM F2656 and IWA for vehicle impact resistance
