ISTinox PCA Aircraft Coupling
| Company | IST-Edelstahl-Anlagenbau AG |
|---|
Images

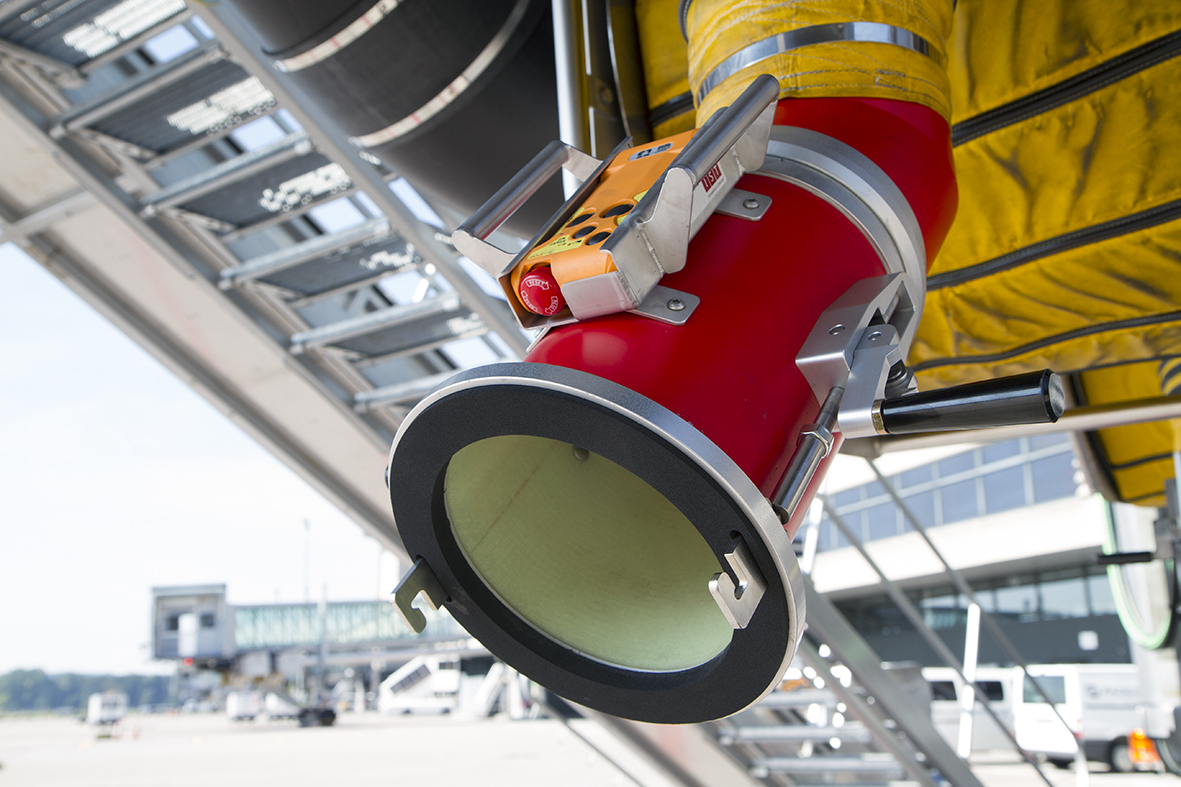

ISTinox PCA AIRCRAFT COUPLING 8″
THE FLEXIBLE CONNECTION TO THE AIRCRAFT
Based on the experience and the specifications of various airports, ISTinox has developed an innovative aircraft coupling, which allows easy docking of the Pre-conditioned air hose to the aircraft. The coupling is manufactured in fibreglass and thus very robust and has a well above-average service life.
In order to guarantee proper airflow, the coupling is fitted with a gasket so that the air hose is tightly docked to the aircraft. A spring activated pressure mechanism ensures that the different thicknesses of the aircraft flanges are automatically compensated in order to form a seal with the aircraft. A stainless steel flange protects the gasket against wear and abrasion.
- High-quality anodized aluminum and stainless steel components
- Temperature resistant
- On request with swivel joint for easier handling
- Universal self-leveling locking mechanism for simple docking
- Leak-proof thanks to an integrated seal
- Protected stainless steel flange gasket, interchangeable
- Ergonomic and user-friendly handholds
- Integrated remote control holder
Technical Specification:
- Light and robust epoxy fibreglass construction
- Diameter 8“
- High-quality anodized aluminum and stainless steel components
- Temperature resistant
- 270 degrees rotating head with end stop
- Universal self-leveling locking mechanism for simple docking
- Leak-proof thanks to an integrated seal
- Protected stainless steel flange gasket, interchangeable
- Ergonomic and user-friendly handholds
- Integrated remote control holder
As a Swiss producer, the company has committed itself to the “Swiss Quality“ standard of excellence. In order to ensure that Swiss standards of quality are met in every sense, IST‘s products are exclusively produced by its qualified staff at its location in Switzerland.
