ISTinox PCA TELESCOPIC TUBES
THE DURABLE SOLUTION FOR AIR TRANSPORT
Manufactured entirely of stainless steel, this double-wall insulated, two or three stage Pre-conditioned Air Telescopic Tube provides high quality and durability; with low maintenance and minimal pressure and temperature losses.
LIFECYCLE OF MORE THAN 20 YEARS

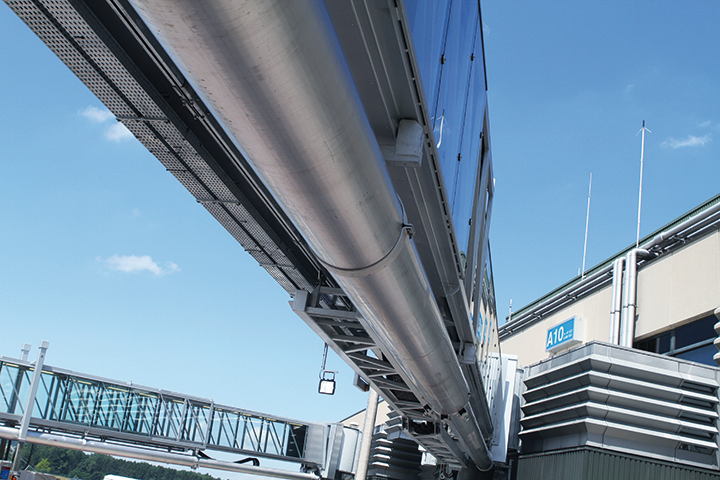

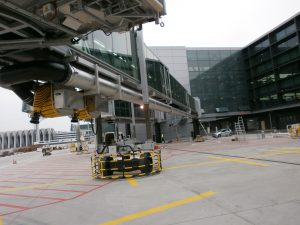

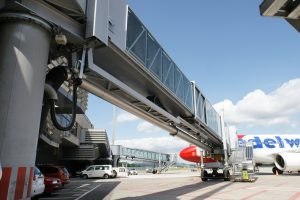

The telescopic tube is mounted directly under the passenger bridge and channels pre-conditioned air over a hose reel to the aircraft.
Ensuring the highest quality in all aspects, the IST telescopic tube has been developed in cooperation with former Swissair engineers according to the specifications of the Airports. The initially patented telescopic tube is the only PCA tube worldwide that consistently demonstrates a well above average service life of more than 20 years.
The first tubes have been installed at Airport Zurich in the year 2000 and have never had any maintenance work nor replacements of spare parts.
DURABILITY AT LOW MAINTENANCE
The telescopic tube is manufactured entirely in stainless steel and due to that extremely stable, robust and basically maintenance free. As a result of the exceptionally smooth surfaces that can beachieved through the use of stainless steel, pressure losses are reduced to a minimum. With its special sandwiched insulation the tube achieves a very high K value with low temperature losses. The use of Stainless steel furthermore ensures the highest hygienic standards.

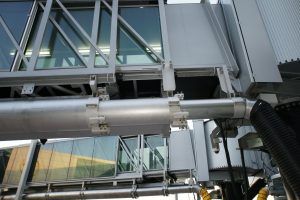

The special construction with flexible outside andinside bearings guarantees a proper adaption of the telescopic tube to axial and lateral movements of the boarding bridge and is furthermore self-supporting over long spans. The gasket designed by IST withstands temperature fluctuations from -40°C to +80°C and is absolutely wear resistant.
Technical Specification:
- Two or three stage telescopic tube manufactured completely in stainless steel 1.4301 (AISI 304 L) Available in stainless steel 1.4404 (AISI 316 L)
if requested - Double-wall tubes with 23 mm insulation
- Diameters: 554/504 454/404 354/304 x 2 mm
- Length of the tubes determined by the length of the PBB
- Maximum temperature loss 0.017 K/m for a pipe diameter of 400 mm
- Maximum pressure drop of 20 Pa/m with air flow at 10,000 m3 /h
- TÜV Hessen certified
We offer you a 10 year guarantee with a concluded service contract
As a Swiss producer, the company has committed itself to the “Swiss Quality“ standard of excellence. In order to ensure that Swiss standards of quality are met in every sense, IST‘s products are exclusively produced by its qualified staff at its location
in Switzerland.
Why stainless steel?
Quality – Stainless steel components are easy to clean, virtually maintenance free and durable.
Safety – Stainless steel is strong, corrosion resistant, wear resistant and resilient.
Design – Stainless steel is aesthetically pleasing.
Environment – Stainless steel has better energy and resour- ce-use balance and is 100% recyclable.
Cost – Technically and economically, stainless steel is the best solution.
