ISTinox PCA Hose Reel

Description
Specifications

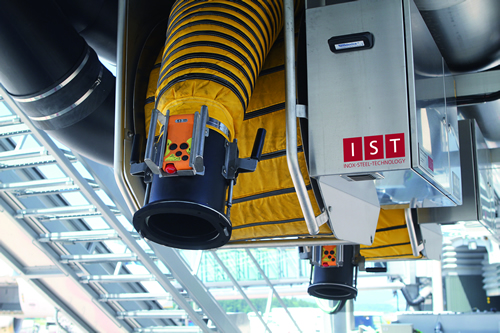

ISTinox PCA HOSE REEL

THE DURABLE SOLUTION FOR A SIMPLE HOSE HANDLING

The Pre-conditioned Air Hose Reel manufactured completely in Stainless Steel provides easy handling of the air hoses. Due to a freely programmable control capability, the operator can adapt the operation of the reel to meet his own needs. The stainless steel hose reel ensures very stable, durable and virtually maintenance free operation.

EASY HANDLING BY ONE OPERATOR

The IST provided hose reel replaces the manual winding and unwinding of the 40 kg air hoses. By the use of a remote control arranged at the connection to the aircraft, the reel can be operated simply and safely by a person, thus minimizing the wear of the air hose and the aircraft coupling. A Siemens provided control allows the operator to program in line with his individual needs.

DURABILITY AT LOW MAINTENANCE

Ensuring the highest quality in all aspects, the IST hose reel has been developed in cooperation with former Swissair engineers, according to the specifications of the Airports. The initially patented reel is the only PCA hose reel worldwide with a lifecycle of more than 20 years.

The first hose reels have been installed at Airport Zurich in the year 2000 and have never had any maintenance work or replacements of spare parts.

Download PDF

Technical Specification:

  • Electrically powered hose reel completely in stainless steel 1.4301 (AISI 304 L),
    available in 1.4404 (AISI 316 L) upon request
  • Single-hose-reel for aircrafts cat. C
  • Double-hose-reel system for aircrafts cat. E
  • Dimensions L/W/H: 1050/1150/1100 mm; weight approx. 400 kg
  • Electric drive 1.1 kW, 230/400V, 50 Hz, IP55
  • Freely programmable Siemens control
  • Frequency convertor for the setting of roll up and discharge speeds
  • Easy to use with remote control 870.00 or 433.00 MHz
  • High-quality 14“ hose with only 28 kg at 24 meters
  • TÜV Hessen certified

We offer you a 10 year guarantee with a concluded service contract*

As a Swiss producer, the company has committed itself to the “Swiss Quality“ standard of excellence. In order to ensure that Swiss standards of quality are met in every sense, IST‘s products are exclusively produced by its qualified staff at its location in Switzerland.

Why stainless steel?

Quality – Stainless steel components are easy to clean, virtually maintenance free and durable.
Safety – Stainless steel is strong, corrosion resistant, wear resistant and resilient.
Design – Stainless steel is aesthetically pleasing.
Environment – Stainless steel has better energy and resour- ce-use balance and is 100% recyclable.
Cost – Technically and economically, stainless steel is the best solution.

*(excluding wear parts)
