ITW GSE 3500 Pre-Conditioned Air Unit, electric powered
| Company | ITW GSE |
|---|---|
| Product code | ITW GSE 3500 PCA |
Images
ITW GSE 3500 – unique PCA with ground-breaking technology
The 3500 PCA supplies fresh, clean air into parked aircraft, provides a pleasant atmosphere for the crew and the passengers, and makes aircraft turn-around faster and more effective.
Optimized airflow and passenger comfort
The ITW GSE 3500 is the only PCA on the market to adapt its airflow to the specific aircraft type and not just to an aircraft category. Automated Aircraft Type Detection enables the PCA to optimize the cooling performance through an integration with VDGS, BMS or other data collecting systems which automatically transfers information on the arriving aircraft type to the PCA as soon as the aircraft approaches the gate. Thus, the 3500 PCA knows the exact aircraft setting and can deliver the optimal airflow into the cabin instead of an average airflow determined by the aircraft category. Automated Aircraft Type Detection optimizes the airflow and increases the cooling performance by more than 50%. This enhances the cabin temperature and ensures a higher passenger comfort.
Intelligent power utilization
The 3500 PCA carries the same advantages as its predecessor, the 3400, such as a truly modular design which makes it possible to change the cooling module in only 20 minutes. Also, the ITW GSE PCAs are ‘the brain’ in the Intelligent Power Management (IPM) system, allowing you to exploit your installed gate power smarter. With the IPM concept, the PCA monitors all connected equipment at the gate. If the GPUs require maximum power for a short period of time, the PCA simply adjusts its own consumption to stay below the pre-set current limit of the complete gate system. This happens quickly and smoothly, so the passengers do not feel any change in the cabin temperature.
Variable Frequency Drive enables easy and stepless regulation of the discharge temperature reducing the energy consumption of the 3500 PCA to a minimum since it supplies the exact amount of cold air required and not more. Stepless regulation implies less mechanical stress, boosts reliability, and gives a better return on investment. The excellent high-power factor of >0.97 means a line current reduction of up to 20% compared to similar PCA units with the same rating.
Two-in-one solution

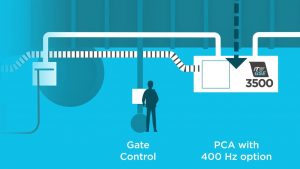

The ITW GSE 3500 comes with the option of a built-in 400 Hz GPU and is the ideal solution for narrow body contact gates. Having only one single unit on the passenger boarding bridge saves space, reduces the weight, and makes the PBB solution aesthetic. It also eases the installation and requires less cabling which leads to lower infrastructure costs. The 3500 PCA is available for mounting underneath the Passenger Boarding Bridge, as an apron mounted unit, and in a mobile version.
Smart advantages of the ITW GSE 3500 PCA
- Automated Aircraft Type Detection optimizes airflow and improves cooling capacity
- Intelligent Power Management reduces infrastructure costs
- Low energy consumption
- 400 Hz built-in (option)
Output
Discharge air temperature:
Subfreeze, depending on ambient temperature, relative humidity, and air flow
Airflow
- 150/210 (kg/min)
- 330/460 (lb/min)
Environmental data
- Operating temperature: -30°C to +50°C (-22°F to +122°F)
- Relative humidity: 10-100%, non-condensing
- Noise level: < 85 dB(A) at 4.6 m
- IP class: IP54 (Electronic part)
