Meggitt Bottom Loading Equipment

Description

Meggitt Bottom Loading Equipment is designed to deliver fast, safe, and efficient fueling operations for aviation refuelers, fuel tankers, and bulk fuel handling systems. Engineered for bottom loading applications, this equipment allows fuel to be loaded into tankers from the base rather than the top—significantly improving operator safety, reducing vapor emissions, and increasing loading speed.

Meggitt’s bottom loading systems feature precision-built couplers, valves, and adapters that ensure a secure, leak-free connection between the fueling source and the vehicle. Built to withstand the rigors of daily field use, the equipment is constructed from high-grade materials that resist corrosion and wear, even in the harshest operational environments.

Key Features:

  • Safe, closed-loop fueling to reduce vapor loss and environmental exposure
  • High flow rate capability for rapid loading operations
  • Ergonomic design for ease of use and quick connection/disconnection
  • Heavy-duty construction for long service life and minimal maintenance
  • Compatible with industry-standard bottom loading systems and protocols (e.g., API RP 1004)

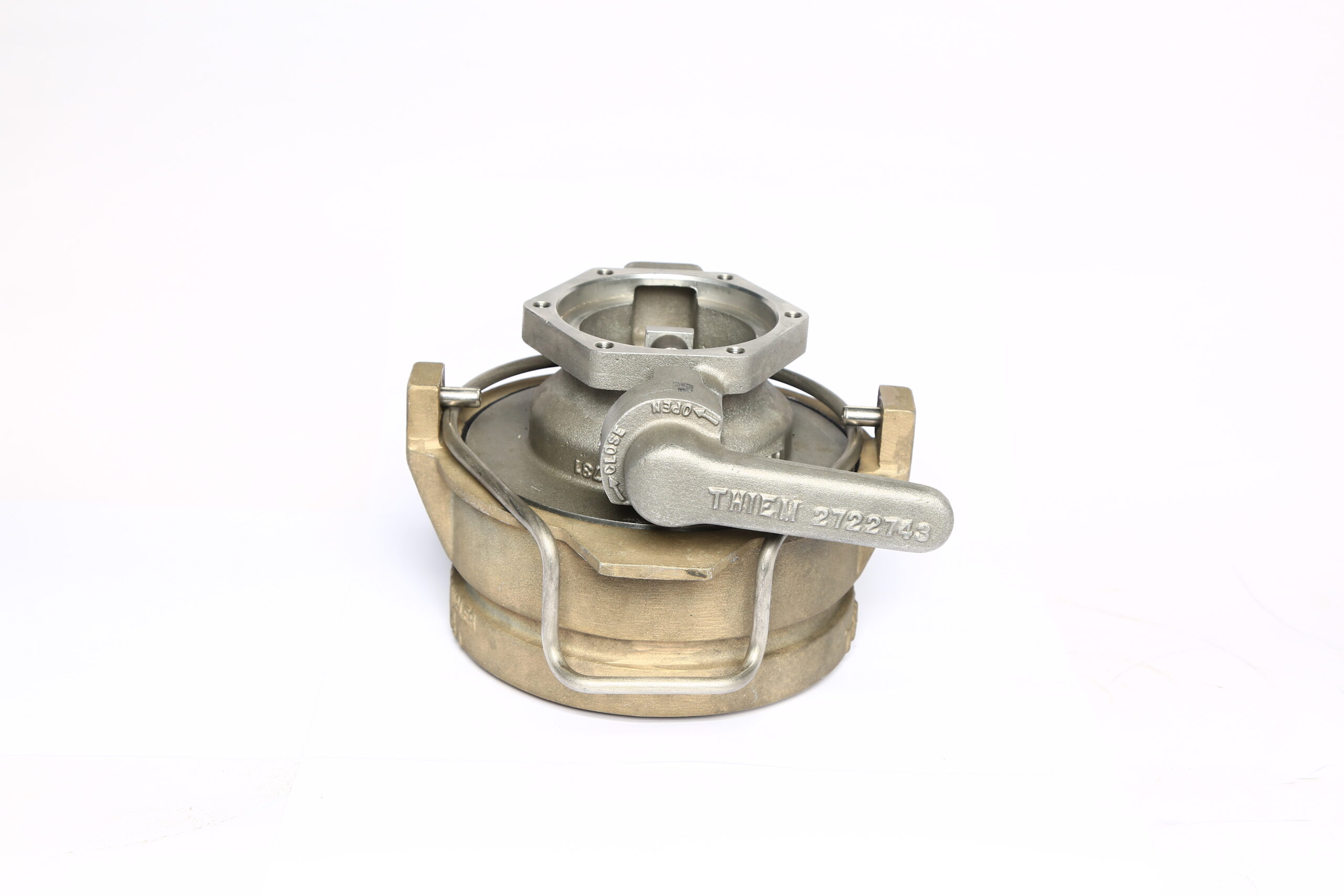

F214 – 3 inch bottom loading coupler  –PDF

F228 – 4 inch bottom loading coupler  – PDF

F412, F433 – API adaptors  – PDF

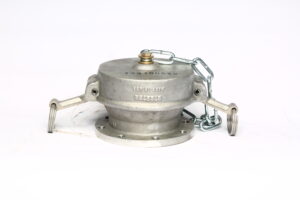

F414, F429 – API adaptors  – PDF

F602, F610, F619 – Float pilot valves – PDF

F613 – Jet level sensor (overfill protection) – PDF

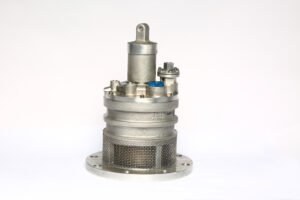

F614, F620 – Internal valves (F614: 4-inch valve, F620: 6-inch valve)  – PDF

F628 – 4 inch swivel (low pressure)  – PDF

F635 – Internal valve (4.5-inch)  – PDF

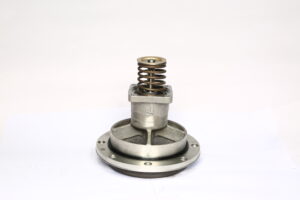

F646 – Vent valves  – PDF
