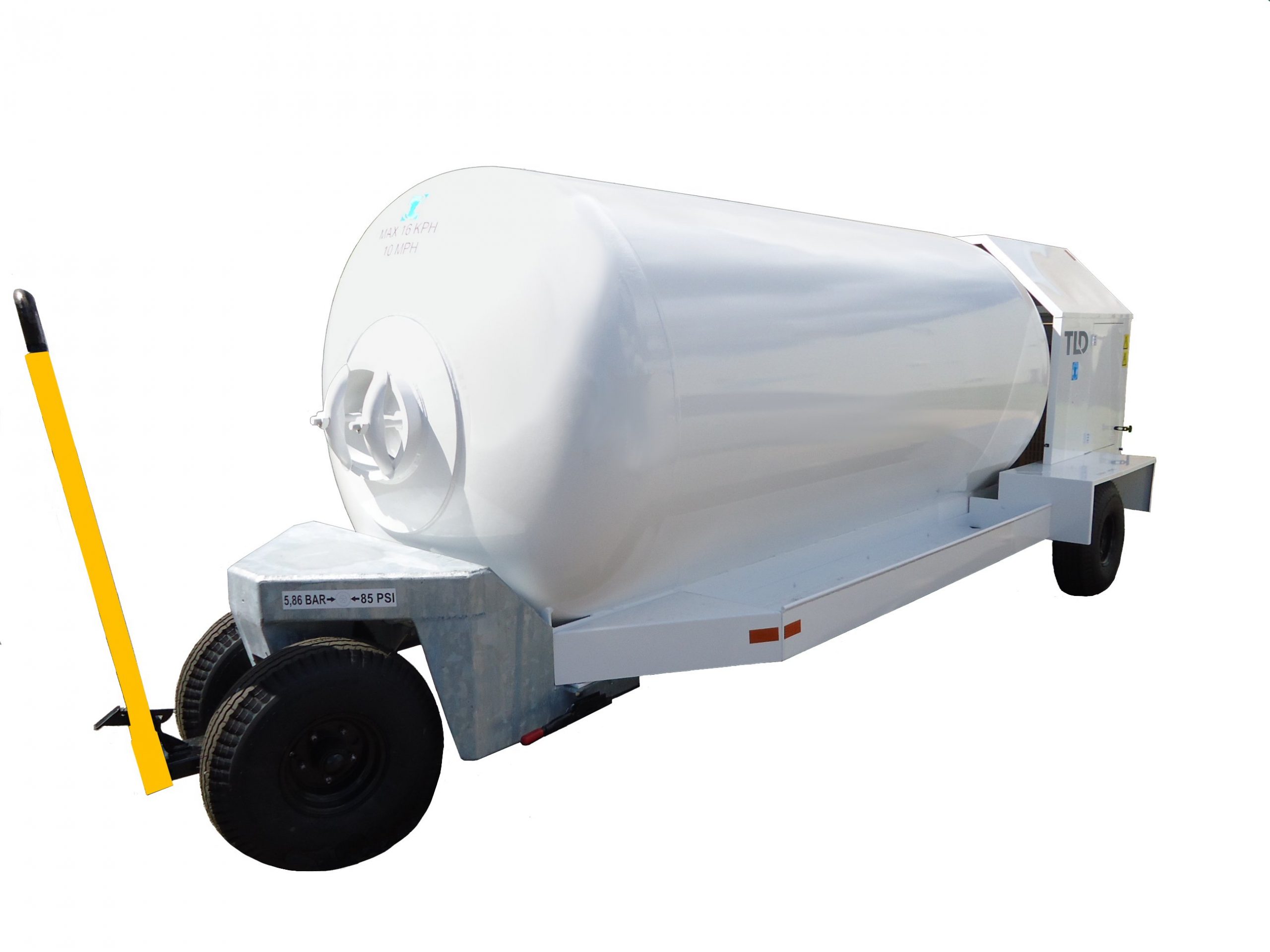

ACE-500 Air Starter

Description

The 500 Series Pneumatic Jet Engine Start Units Provide medium pressure air sources for jet aircraft engine starting. Start air pressure is adjustable to 45 psig at 0-300 lbs/min air flow to start all types of jet aircraft engines. The units are available in a variety of sizes and configurations to meet individual customer requirements ¨C based on aircraft to be serviced and frequency of utilization.

These self-recharging stored-air units are supplied complete with a properly rated piston-type compressor, ASME cylinder, customer selected power source and mounting (truck/trailer/stationery pedestal). A major component is the TLD-developed ‘soft-start’ regulator control valve, which controls air pressures delivered to the engine in accordance with the engine manufacturer’s specifications.
