AirTalk® 5000 XD – Binaural lightweight headset

Company Imtradex

Images

Description
Specifications

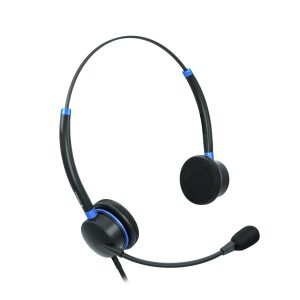

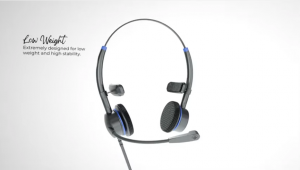

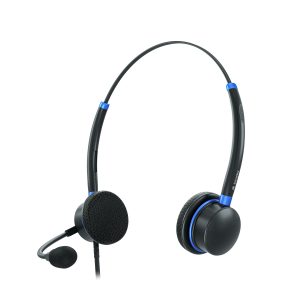

The new AirTalk® 5000 is an extremely lightweight, binaural headset for the ATC sector, which is characterized by its very low weight and high stability.

The rotating suspension ensures a perfect fit even while strong and abrupt head movements. The very robust steel wires of the headset connection cable ensure reliable communication and a long lifetime. To guarantee a high wearing comfort, the headset has a single-sided cable routing.

With the newly designed, flexible headband the headset adapts to any size and head shape. Removable spacer distance clips additionally ensure a perfect fit as well as a comfortable pressure compensation. Combined with ear cushions made of the powerful CoolMax® fabric, the new headset provides optimum comfort throughout the entire shift.

As usual, different microphone types are available for the AirTalk® 5000 – for example, short or long gooseneck microphones, in various designs (i.e. electret or dynamic version). The microphone can be used on both sides and is equipped with state-of-the-art noise cancellation for clear audio transmission. The implemented innovative CNL-technology further reduces disturbing noises.

As with all Imtradex headsets, you can freely choose the PTT buttons as well as the connections for any VCS.

GENERAL INFORMATION:

  1. Dimensions: 160 mm x 140 mm 60 mm
  2. Colour: black/ blue metalic
  3. Weight: 83 g
  4. Operation temperature: -20 °C to + 40 °C
  5. Noise Cancelling (NC): YES
  6. Calm Noise Line (CNL): YES
  7. Acoustic Shock Protection: YES

SPEAKER:

  1. Working principle: Dynamic
  2. Impedance: 600 Ω ± 15 % ( 1 kHz )
  3. Sensitivity: 107 dB ± 3 dB ( 1 mW )
  4. Frequency range: 100 Hz to 12 kHz

MICROPHONE

  1. Working principle: Electret
  2. Direction: Bi – directional
  3. Impedance: 1.5 kΩ ± 30 % ( 1 kHz )
  4. Frequency range: 100 Hz to 7 kHz
  5. Sensitivity -47 dB ± 3.5 dB ( 1 kHz )
  6. Sound pressure level: 110 dB ( S. P. L. )
  7. Distortion: 57 dB ( 1 kHz )
  8. Current consumption: 300 µA
