HS3 – Ergonomic handset

Description
Specifications

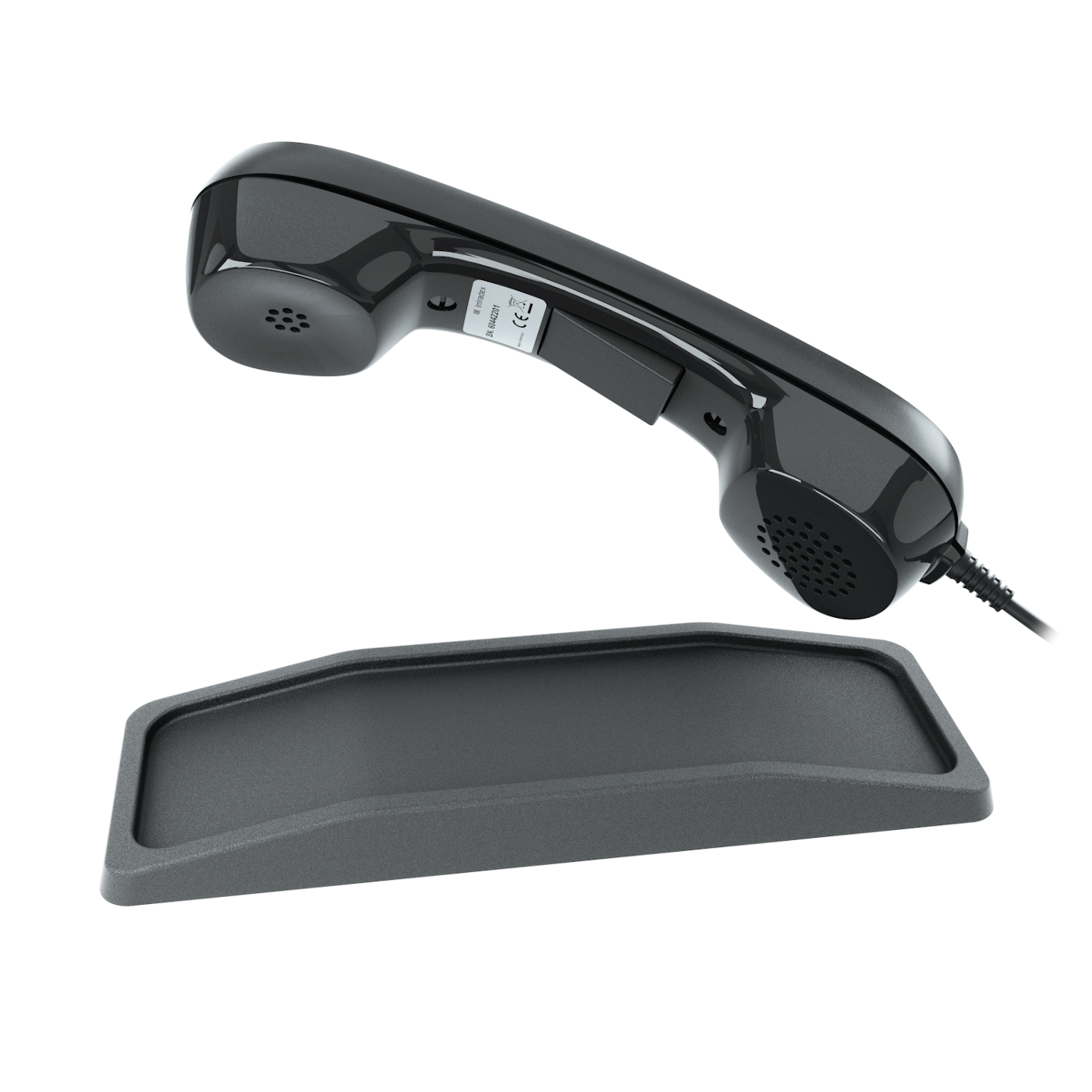

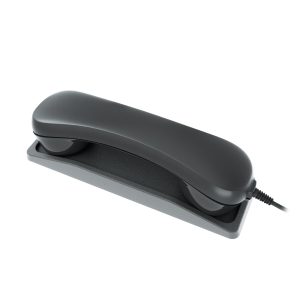

Our handset HS3 is a classical and excellent ergonomic handset with a PTT button. The handset is easy to adapt to any voice communication system or any system used in control rooms and ATC areas. Furthermore, a reed contact can be easily implemented.

The handset can be configured with your needs, such as different connectors and cable length. Different colors for, i.e. the PTT button allow a better handling with a more recognizable button. Our Imtradex Plug&Play USB function can also be implemented. The product is then very flexible to be used in control rooms, 911 areas, simulation and with every voice communication system supporting USB.

The excellent acoustic components bringing clear sound to your ear and your counterpart can receive your message clear with the noise cancellation microphone. This means effective communication even in emergency and busy situations.

General Information

  • Dimensions (LxWxH): 220mm x 60mm x 50mm
  • Weight: 225g
  • Color: Black
  • Temperature range: 0°C to +40°C

Microphone

  • Working principle: Electret
  • Direction: Omni-Directional
  • Impedance: 2,2 kΩ
  • Frequency range: 50 Hz – 16 kHz
  • Sensitivity: 7,9 mV/Pa/1 kHZ, ± 3 dB
  • S/N ratio: > 58 dB

Speaker

  • Typ: Dynamic
  • Impedance: 150 Ω ± 20% (1 kHz)
  • Sensitivity: 96 dB ± 2 dB SPL (1kHz)
  • Frequency range: 100 Hz – 7,5 kHz

Case

  • Material description: ABS GERLAN GP35
  • Material definition: PC/ABS
  • Flammability: UL94-HB
  • dielectric strength: 41 kV/mm
  • RoHS: Yes
