PTT-19 – Well-shaped Push-To-Talk button
| Company | Imtradex |
|---|
Images

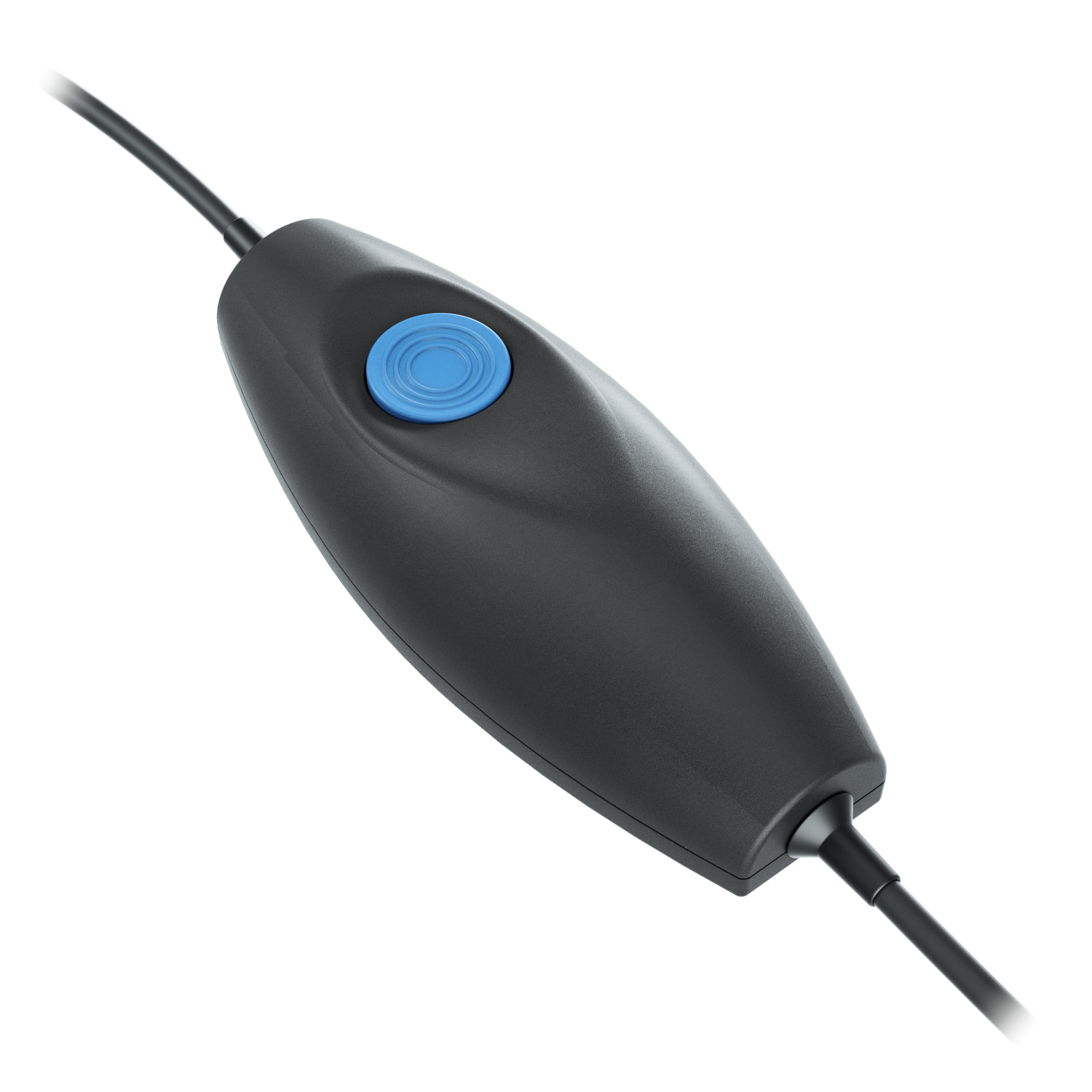

The AirTalk® Push-To-Talk button PTT-19 is an ergonomically designed button for a comfortable fit to the palm of your hand. The button is slightly depressed in the housing to be easily used with your thumb. Additionally the depressions help to prevent from unintended push of the PTT button.
The robust housing allows a daily use even in tough situations. The switching elements are designed for long life and outstanding performance. The tactile center of pressure giving you perfect feedback and a mechanical end stop increase the life time of the product. The PTT-19 can be used as an inline PTT button.
The adaption to your voice communication system can easily be done. Any electrical adjustment can be done inside the PTT-19. The adaption can be done for nearly any system. Different voice communication systems are already available and adapted.

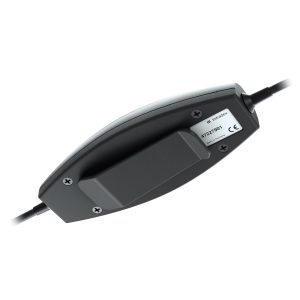

The optional belt clip can be used for stowing the product away during your long shifts.
Case
- Material description: Bayblend T45 PG
- Material definition: PC ABS
- Flammability: UL95-HB
- dielectric strength: 35 kV/mm
- IP protection class: 4X
- RoHS: Yes
Taster
- Contact resistance: < 30 mΩ
- Insulation resistance: 10 MΩ
- Operating force: 3 N
- Temperature range: -40°C to +115°C
- Lifetime: >10.000.000 Zyklen
- Tactile path: 1mm
