PTT-13 – pistol grip Push-To-Talk button
| Company | Imtradex |
|---|
Images
The AirTalk® PTT-13 Push-To-Talk button is designed like a pistol handle offering a perfect fit to your hand. The Push-To-Talk button is optimized to be used in 911 control rooms and air traffic control areas, such as tower, center or approach.
The robust housing allowing a daily work experience with high stress and with the switching elements designed for long life durability. it has a brilliant life cycle. The electrical adjustment to the different voice communication systems will be easily done inside our PTT-13. The Push-To-Talk button is inline in combination with our headsets series, such as our AirTalk® 5000 series available.

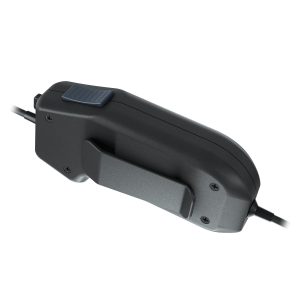

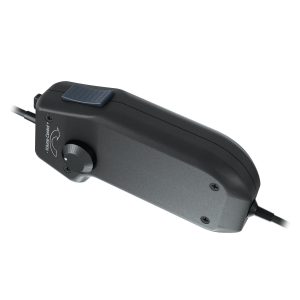

On the backside of the housing is a belt clip, for easy stow it away if not used at the moment. For safe operations a hand strap is available to be fixed to your wrist, for not losing the device in stressful situations. Furthermore, the PTT-13 is also available in a separate version with volume control included for easy adjustment of the volume of your counterpart. For simulation purpose the AirTalk PTT-13 series is also available with the IMTRADEX USB technology, which is already is use at different simulation operation systems.
Case
- Material description: Bayblend T45 PG
- Material definition: PC ABS
- Flammability: UL95-HB
- dielectric strength: 35 kV/mm
- IP protection class: 40
- RoHS: Yes
Push button
- Lifetime: 10.000.000 Cycles
- Insulation resistance: 10 MΩ
- Operating force: 3 N
- Temperature range: -40°C to +115°C
- Contact resistance: 30 mΩ
- Tactile path: 1mm
