Cable Extender
Company | ElectroAir |
---|---|
Product code | EAZ series |
Images

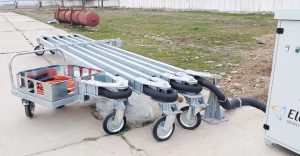

Cable extender EAZ zigzag crocodile type cable extender is intended for storing and moving cables from the GPU to the aircraft.
It consists of up to 10 sections with a length of 5 meters each. Its simple modular design with bolt connections means a low maintenance cost.
All the metal details are hot dip galvanized and can be painted according to the clients wishes. EAZ has a very comfortable trolley with the store places for plugs and remote control to simplify operation of the GPU.
Parameters:
- Dimension of square cross section of cable channel: 120х80 mm
- Length of the section: 5 m
- Number of sections: 10
- Pull apart direction: left/right
- Maximal angle of separation of two sections: 2700
- Capacity of storage basket: up to 10 m of cable
- Diameter of wheels: 300 mm
- Minimum bending radius of cable: 125 mm
- Weight of extender with cable: < 800 kg
- Ambient temperature: -40 0С … +650С
- Relative humidity: up to 100%
- Number of cables: 1 or 2 pcs
- Drain openings for ventilation
- Protective cover on open parts of cable
