Dyba Castor Deck
| Company | Dyba Tech B.V. |
|---|---|
| Product code | CD01 |
Images
Description
Specifications

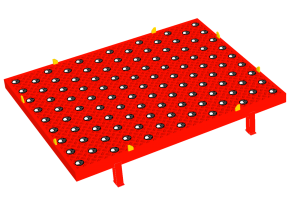

Dyba Castordeck CD01 is a transport unit for handling ULDs. Castordecks are used for storage and / or build-up and break down of ULDs. Suitable for use inside and outside of the warehouse. The movement of ULDs on the castordeck is by manpower.
Features / specifications:
- Suitable for ULD with base surface 125”x96”
- Operating height 208 / 250 / 508 mm
- Transfer deck surface: with castor wheels Ø58
- Load direction: 360°
- Overall dimensions: 3350 x 2660 mm (l x w)
- Maximum load capacity: 6.800 kgs
- With anti-slip walkways between castor wheels
Options:
- With integrated weighing system 6.800 kg
- Recess forks forklift for removal empty pallets
- With ram protection / litter skirt
