HID ATOM™
| Company | HID |
|---|---|
| Product code | HID ATOM™ |
Images
Full-Page Document Imager and Electronic Machine Readable Travel Document (eMRTD) Reader.
The HID ATOM™ Document Reader (formerly Access-IS ADR300) is a state-of-the-art, multi-illumination, electronic machine-readable travel document (eMRTD) scanner. Designed from the outset to deliver high performance, ATOM blends an aesthetically pleasing design with maximum flexibility to make it the ideal choice for almost any document verification application.
Its innovative design enables the capture of multiple high resolution, uncompressed images in visible and infrared light (UV – optional). In comparison to alternative readers, the transaction time on this travel document imager and reader is significantly reduced, delivering productivity and cost savings.

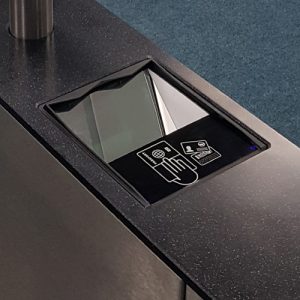

ATOM’s design sets it apart from other identity document readers and allows for both desktop use and simple, elegant integration into countertops and kiosks. Its innovative ‘shark fin’ document guides ensure that even the most widely traveled documents quickly slide onto the glass, easing down bent corners for a perfect read.
ATOM delivers lightning-fast MRZ decoding, with optional capability of reading RFID data from eDocuments, including those meeting the latest ICAO LDS standards. Additionally, high performance 1D/2D barcode reading ensures that the ATOM delivers a rich feature set.
The ATOM document scanner can be supplied with its innovative expansion dock to provide either contact smart card reading, magnetic stripe reading or both. The elegant drop-in design means that the unit can be supplied already connected or retrofitted in the field in just a few seconds.
Key Applications:
- Banking & insurance
- Document & Visa issuance
- Gaming & casinos
- Airport passenger processing
- Border control & law enforcement
- Tax refunds & money exchange
- Hotels, airports & car rental
- Alcohol & tobacco sales
Key Features:
- Sophisticated Imaging: Captures high-resolution images in visible and IR light (UV – optional)
- Simple Integration: Operates without external power supply using USB 3.0
- MRZ Reading: Reads ICAO 9303 compliant documents, including ID cards, ePassports and visas — plus ISO 18013 compliant driver’s licenses
- Flexible QR/Barcode Reading: Reads 1D/2D barcodes from smart phones, tablets and paper
- Optional Contactless Capability: ISO 14443 contactless RFID reader/writer supports ICAO LDS standards, including BAC, PA, AA, EAC and SAC
- Optional Expansion Dock: Provides contact smart card and MSR reading, two additional USB ports and two SAM modules
| OCR (Optical Character Recognition) | ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 (2 & 3-line MRZ)Near ICAO compliant travel documents (e.g. French ID)ISO-18013 driving licences (1-line MRZ) |
| Imaging | Glass platen: 0.2 in (4mm) thick toughened, with anti-reflective and oleophobic coatings Active scan area: 5 in x 4 in (130mm x 94mm) Full-page: JPG, BMP, TIFF, PNGIllumination sources: visible/white, near IR B900, UV LED’s Resolution: 500 DPI |
| Barcode Reading | Linear (1D): EAN / UPC, Code 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Code 39, Code 128 2D: IATA resolution 792, PDF417, Aztec, DataMatrix and QR codes |
| Contactless RFID Reading (Option) | Interoperability: ICAO DOC 9303, LDS1.7, ISO18013 (Driving Licence), PA, AA, BAC, EAC v1.11 (CA, TA), EAC v2.0x (PACE v2, ICAO SAC, CA v2, TA v2) Operating frequency: 13.56 MHz Supported documents: ISO 14443 type A & B auto-detecting; secure and high-speed data transmission; MIFARE® memory card support (MIFARE ultralight, 1K, 4K cards) App. interface: PC/SC compliant device |
| Contact Smart Card Reading (Option) | Number of ID-1 (smart card) slots: 1 Number of ID-000 (SAM) slots: 2 Compliance: ISO 7816, T=0, T=1 App. interface: PC/SC compliant device |
