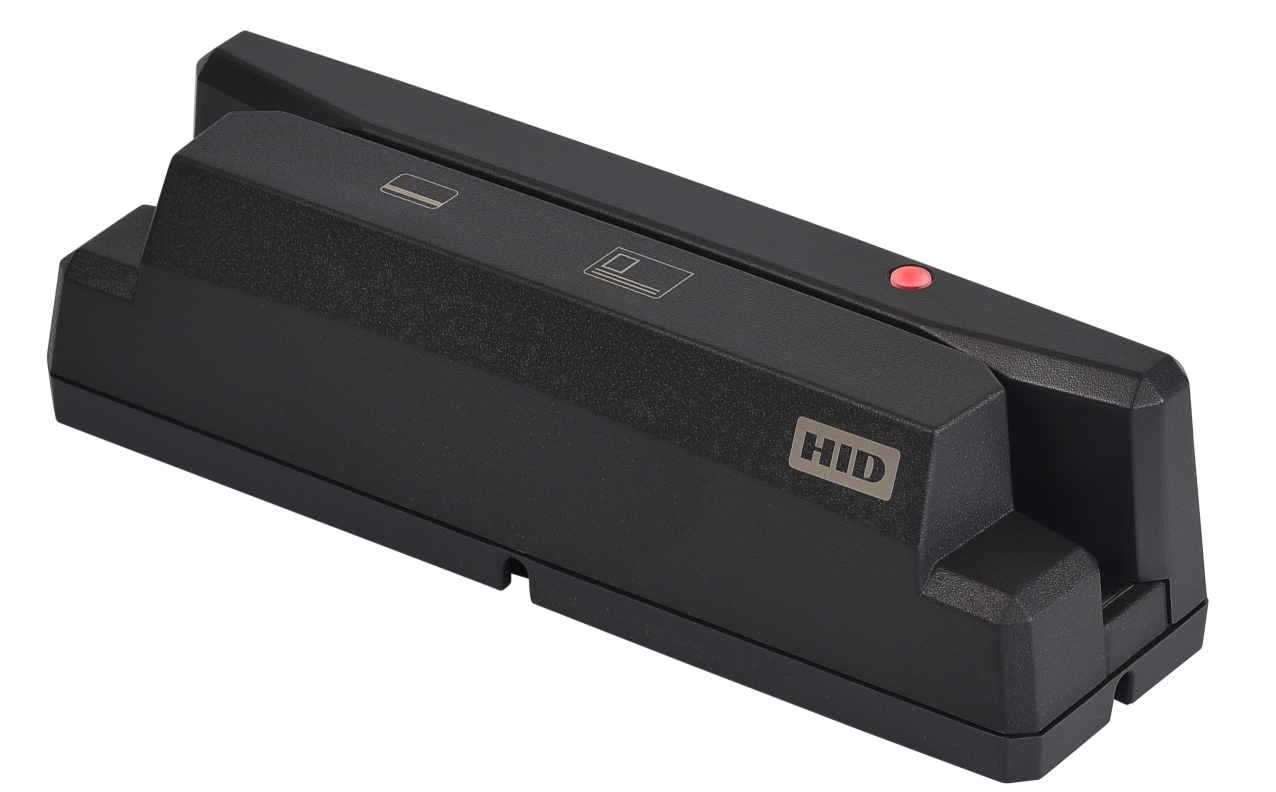

HID OCR316e - USB OCR Reader With MSR


The OCR316e reader interface connection is via USB. The track length and single slot design are optimized to ensure that passports and ID cards are correctly aligned for consistent and accurate identity document reading.

The bidirectional USB OCR reader can read machine-readable passports (MRP), visas (MRV), US and international residence permits as well as European and other national ID cards conforming to ICAO 9303 and ISO/IEC 7501-1 (2 and 3-line MRZ). It will also read the new ISO/IEC 18013-1 driving licenses (1-line MRZ), making it future-proofed.

It also integrates a three-track magnetic swipe reader (MSR) and is able to read credit and debit cards, loyalty cards and frequent flyer cards.

OCR (Optical Character Recognition) ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 (2- and 3-line MRZ)Near ICAO compliant travel documents (e.g., French ID)ISO-18013 driving licenses (1-line MRZ)
Magnetic Swipe Reader Three-track magnetic cards complying with ISO7811/ 2-5

For more detailed specifications, please download the datasheet.
