Load Bank - EAL-400 series

Description
Specifications

Portable Load bank EAL-400 intended for GPU maintenance, test and checking of correct operation. Unit can be also applied for checking of cable plugs after their change and repair.

EAL-400 has capability to save and get all of test report from flash drive which is one of the main advantages for test operations.

Performance

  • Climatic execution: -15 to +550C
  • Voltage: 115/200VAC ± 10%
  • Frequency, Hz: 400 ± 10%
  • Load power, kW: 0 up to 144 ± 5% (10 steps)
  • Humidity: 10-100%
  • Dimension, mm: 600 x 255 x 600
  • Weight, Kg: 29
  • Protection class: IP 21
  • Warranty: 24 months
  • Execution: Portable
  • Computer program

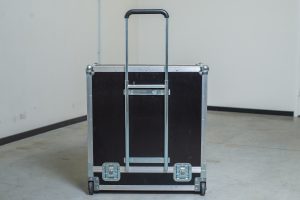

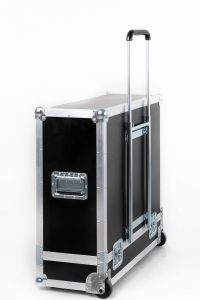

  • Carrying case

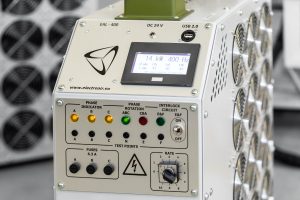

Control panel

  • Connection indicator
  • Light brightness digital or touch screen display
  • External test jacks
  • USB 2.0
  • AC 400Hz socket
Protection

  • Over heating
  • Short circuit at input

Step load parameter

  • Total duration time: 2 sec – 5 sec /step
  • Step load operation: 15 kW
  • Total number of steps: 10

Automatic load parameter

  • Total duration time: 30 sec
  • Step load operation: 100% – 0%

Documentation

  • User + service manual
  • Passport
  • Warranty certificate
