Load Bank - EAL-28 series

Description
Specifications

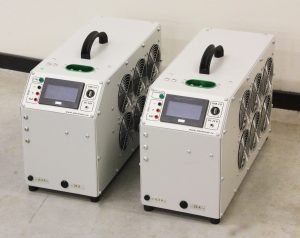

Portable Load bank EAL-28 intended for GPU maintenance, test and checking of correct operation 28VDC output. Unit can be also applied for checking of cable plugs after their change and repair.

EAL-28 has capability to save and get all of test report from flash drive which is one of the main advantages for test operations.

Performance

  • Climatic execution: -15 to +550C
  • Voltage: VDC: 28 ± 20%
  • Load A max: 2500 ± 20%
  • Humidity: 10-100%
  • Dimension, mm: 549x234x390
  • Weight, Kg: 22
  • Protection class: IP 21
  • Warranty: 24 months
  • Execution: Portable
  • Computer program
  • Carrying case

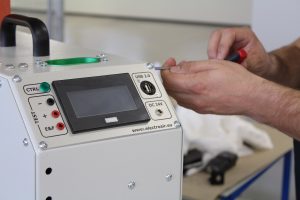

Control panel

  • Connection indicator
  • Light brightness touch screen display
  • External test jacks
  • USB 2.0
  • DC 28V socket
Protection

  • Over heating
  • Short circuit at input

Continues load parameter

  • Maximum time duration: 30 min
  • Load value: 300A , 750A

Step load parameter manual or automatic

  • Total duration time: 35 sec
  • Step load operation:
    • 1600 A – 0 A (5 steps)
    • 2500 A – 0 A (6 steps)

Documentation

  • User + service manual
  • Passport
  • Warranty certificate
