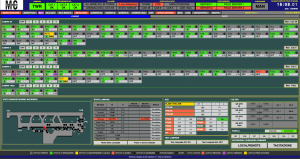

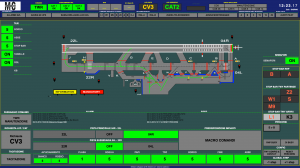

MIA SYSTEM – ALCMS Airfield Control and Monitoring Software
| Company | MC Solutions Srl |
|---|---|
| Product code | MIA SYSTEM |
Images
Description
Tailored software – designed on customer’s need from international
CATIII airport to small airports, FAA airport classification from type A toD.
FAA L-890 compliant – EASA compliant.
1 sec lamp feedback from stop bar – 2 seconds feedback from other AGL services.
10 seconds RW SIDE STEP
10 seconds RW Change-over for all runways
TAILORED SOFTWARE
Software base is flexible enough to design the management services required – secondary AGL services interface – ground radar interface – RVR
REMOTE UPGRADE and SUPPORT
hardware security key – software upload
INDUSTRIAL PC BASED
portable on devices – user friendly
Other Products From MC Solutions Srl
MCLO – Monitor Control Lamp Optical
1 sec lamp feedback from stop bar – 2 seconds feedback from other AGL services
OPTICAL FIBER MONITORING MODULE – worldwide patent pending
fast - reliable - free from interferences - huge data amount - lamp feedback
FAULT …
CDU – Crossing Detection Unit
Detects aircrafts entering and exiting RUNWAY
Calculates time for passing through the junction distance and direction
Alarms TWR in case of “RUNWAY INCURSION“
Detects burnt lamp on STOP-BAR and LEAD ON lighting signals
Switches on and off STOP-BAR and …
LTC – Lamp Time Control
LTC measures the response time with which the system, both hardware and software of any manufacturer or type, communicates to the operators the “burnt” lamp failure.
LTC MASTER station is equipped with a device that during …
GPI – General Purpose Interface
GPI manages the analog/digital input and output to control devices in the industrial and civil branch.
16 insulated digital inputs
16 outputs insulated by c-mos relay
4 analog inputs
Double power supply
Communication Bus RS485
