Mobile Cable Extender

Description
Specifications

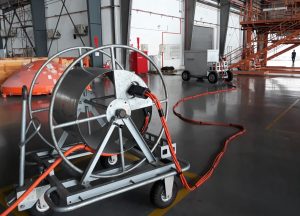

Cable extender ЕАВТ intended for store and transportation of GPU output AC/DC cables.

The extender is lightweight, maneuverable, easy to use and durable. The extender is designed for both outdoor and indoor use.

Depending on the order, the extender can be equipped with an aircraft connector to supply AC or DC voltage, or both at once. The total cable length should not exceed 100m.

The extender is connected to the power supply via a standard connector located on the side wall of the drum. The output connector has a special basket for safe storage. The rotation of the drum is provided by 2 bearings with an increased service life.

The brake system is simple and reliable, fixes the front wheel. When tow bar is on the upright position.

Trolley wheel has standard pneumatic or solid styres with diameter 8″.

Material of extender and drum – galvanized steel provides corrosion resistance of the structure and long-term all-weather application.

Parameters

  • Cable length: up to 100 m
  • Climatic condition: -400С – +600С
  • Protection class: IP54
  • Execution: mobile
  • Number of outputs: up to 2
  • Cable type: AC: 7×35+18×1; DC: 2×120
  • Aircraft plug type: LPA
  • Wheel type: pneumatic/ solid tyre
  • Material of extender and drum: galvanized steel
  • Bearings: UCPE206N(CC)T04
  • Dimensions, LxWxH: 1550х1340х1565
  • Weight: up to 370 kg
  • Wheels diameter: 8”
  • Full compatibility with GPU series EAC and EAR
