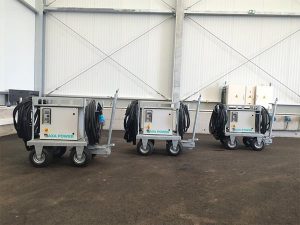

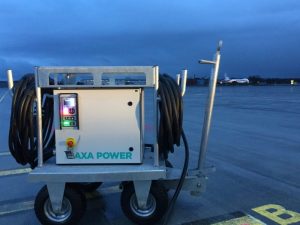

ITW GSE 1400 - Ground Power Unit - mobile solid-state GPU

Description
Specifications
Product Description:

The ITW GSE 1400 is a small, light and easy manoeuvrable solid-state GPU that does not take up much space neither in mobile nor in the fixed version.

Input:

  • Voltage range:
    • 3 x 400 V -10/+15%
    • 3 x 460 V -10/+20%
  • Frequency: 50/60 Hz 5%
  • Rectification: 6 pulseLine current: 29 A
  • Power factor: 0.91
  • Inrush current: None, soft start





Output

  • Current: 600 A continuously
    • (can be limited to 400 A upon request)
  • Engine Start Capability: 28 V @ 2000A
  • Voltage: 28 VDC (or as adjusted)
  • Ripple: less than 2% at full load
  • Voltage regulation: <0.5% from no load to full load
  • Voltage compensation:
    • 3 V @ 600 A
    • Manual or voltage feed-back
    • via interlock
