PAS 68 Road Blocker – HVM Crash tested
Company | Avon Barrier |
---|---|
Product code | RB780CR Chieftain |
Images

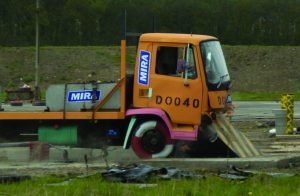

PAS 68 Road Blocker physically crash tested.
A Hostile Vehicle Mitigation (HVM) vehicle security barrier that can protect an airport access point, a physical deterrent that has been tested to withstand a 7500kg truck driven at 80kph (50mph).
2m Road Blocker: | 2m Road Blocker – 2510mm W x 1770mm D x 1000mm H | |
HPU Cabinet: | 640/940mm W x 670mm D x 1300mm H | |
Raised height of blocking segment: | 800mm | |
Blocker widths available: | 2-6 metres in 500mm increments | |
Basic Power requirements: | 3-Phase 415v AC, 50Hz, (other voltages are available) | |
Control Voltage: | S.E.L.V 24V | |
Performance: | Loading 30 Tonnes | |
Impact Absorption: | 1852KJ (fully operational immediately after impact) | |
PAS 68 Classification: | V/7500(N2)/80/90:0/17 | |
Tested Model: | 800mm H x 2.0m W | |
Speed of operation: | 6 Seconds to raise or lower (alternative speeds available) | |
Emergency Fast Operation (EFO) (option): | 1 second to raise | |
Operating temperature range available (option): | -25°C – +70°C | |
Construction: | The supporting framework is constructed from fully welded, heavy gauge, high strength, structural steels completely encased with steel sheets to provide a self-shuttered module. Sub-surface fixing points ensure the blocker is completely secured to its foundation. |
