PAS 68 Sliding Gate – HVM Crash tested
| Company | Avon Barrier |
|---|---|
| Product code | SG1100CR Sliding Gate |
Images
Description
Specifications

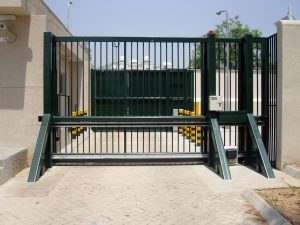

SG1100CR Armoured Vehicle Gate is an independently PAS 68 tested sliding gate that has been physically tested in a number of full scale independent crash tests. The SG1100CR is a tracked sliding gate that provides a high level of security against unauthorised vehicle & pedestrian access.
Features:
- Physically impact tested to PAS 68 criteria
- Manufactured from heavy gauge materials
- Variable height and clear widths
- Manual operating override facility
- High quality coating system (minimum galvanised)
- Shallow mounting less than 500mm overall depth
- Hold to run operation
Options include infills panels, paint finishes, toppings
Example:
- Voltage range: 3 x 400 V -10/+15%
- Frequency: 50/60 Hz 5%
- Rectification: 6 pulse
- Line current: 29 A
| Physical Dimensions: | |
| Standard gate height: | Height 2400mm – additional razor wire/cladding can be added for additional height Standard sizes – clear width openings/gap of 5m, 6m and 7m Bespoke sizes available on request, subject to conditions, contact our sales department for advice |
| Basic power requirements: | Subject to gate size and construction |
| Impact Absorption: | 1189KJ |
| PAS68 Classification: | V/7500(N2)/64/90:0.0/0.0 |

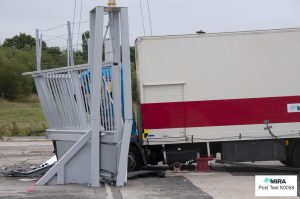

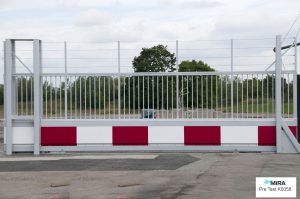

| Tested Model: | Sliding gate with clear opening gap of 7000mm and a height of 2400mm + 1000mm sacrificial razor wire topping = total Overall height of 3400mm and foundation depth of 470mm |
| Speed of operation: | 5.7 seconds per metre (optional high speed operation 2 second per metre is available) |
| Operating temperature range available (option): | -25°C – +70°C |
| Construction: | The framework is constructed from fully welded, heavy gauge, steel structures and hi-tensile structural steel. |
