Snow plough SP3000
| Company | ZAUGG AG EGGIWIL |
|---|---|
| Product code | SP3000 |
Images

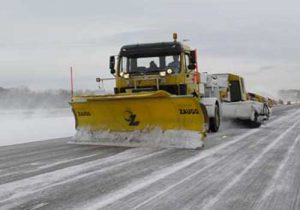

The snow plough SP3000 was specially developed for use on airports. It is characterised by its width, simple design and the low weight. It is equipped with the ZAUGG trip edge system.
Plough Length: 560 – 800 cm Number of elements: 4 – 5 elements
Snow clearance made easy with the unique ZAUGG snow plough technology.
One of the core areas of ZAUGG’s business is the development, design and manufacture of high quality, technically advanced snow ploughs for snow clearance on all roads and driveways as well as at airports.
The ploughs can be easily attached to single-axle vehicles, all types of tractor, municipal and all-wheel-drive vehicles from a wide range of manufacturers, skidsteer loaders and forklift trucks, vans, Unimogs, trucks, wheel loaders and airport snow clearance vehicles.
They are available in no less than 16 models, each with a range of different plough widths. The normal blade angle is 35°/32°, although most models are available with a 45° angle or even 55° on certain models. In terms of performance and operation, they are designed to cope with the demands of snow clearance today. Snowremoval is remarkably easy, with great savings in fuel.
The driver enjoys an exceptionally good overview thanks to the optimum plough height. And the ZAUGG trip edge system (obstruction impact protection system) enables clearance speeds of up to 60 km/h without detriment to safety.
| Snow plough SP3000 | 560 | 600 | 750 | 750C | 800C | |
|---|---|---|---|---|---|---|
| Number of elements | pcs | 4 | 4 | 5 | 5 | 5 |
| Plough length A | cm | 560 | 600 | 750 | 750 | 800 |
| Element width | cm | 140 | 150 | 150 | 150 | 160 |
| Clearing width B at an angle of 35° | cm | 485 | 490 | 614 | 614 | 655 |
| b1 35° | cm | 264 | 280 | 342 | 342 | 363 |
| b2 35° | cm | 194 | 210 | 272 | 272 | 292 |
| Passage width C at an angle of 35° | cm | 496 | 528 | 642 | 642 | 691 |
| Passage width with side blades folded | cm | – | – | – | 450 | 480 |
| Plough height | cm | 130 | 130 | 130 | 130 | 130 |
| Weight with attachment plate, electrical unit, pump unit |
approx. kg | 1550 | 1600 | 1750 | 1950 | 2000 |
