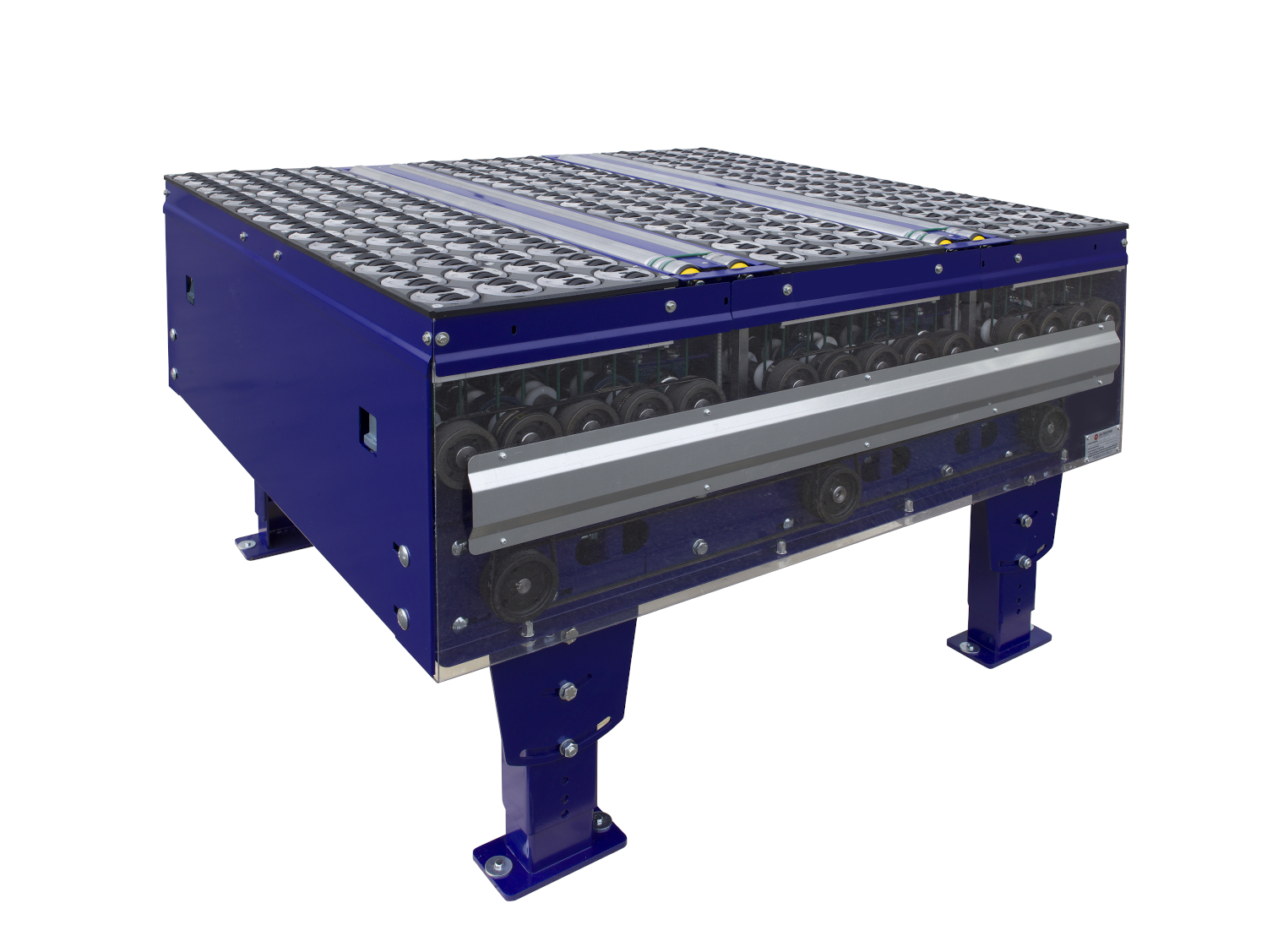

Swivel Sorting Unit

Description
Specifications

CMC Swivel Sorting Unit is designed to ease the bidirectional automatic sortation of goods along the conveyor system in a safe and ergonomic manner. Modular design allows more complex configuration deemed to deviate or align laterally at both sides, and, as well, an easy and quick maintenance accessibility.

Characteristics of this unit allows fast, flexible, efficient operation and easy maintenance all together resulting in the cheapest operational cost. Thanks to its two different options (Digital I/O or ProfiNet), CMC Swivel Sorting Unit could be configurated with three pre-setted directions (adjustable via software) or with dynamic directions regulation via I-Device Interface; these types of configurations also allow to set up (via software or dynamically via I-Device Interface) both speed and acceleration.

  • Direction Angles: -90°/+90°
  • Adjustable Speed: 0 – 1.6 m/s
  • Max Acceleration: 1 m/s2
  • Nominal Capacity: 50 kg/m2
