ZENTRA WING

Company ZABAG
Product code TURNSTILE FOR INDOOR & OUTDOOR APPLICATIONS

Images

Description
Specifications

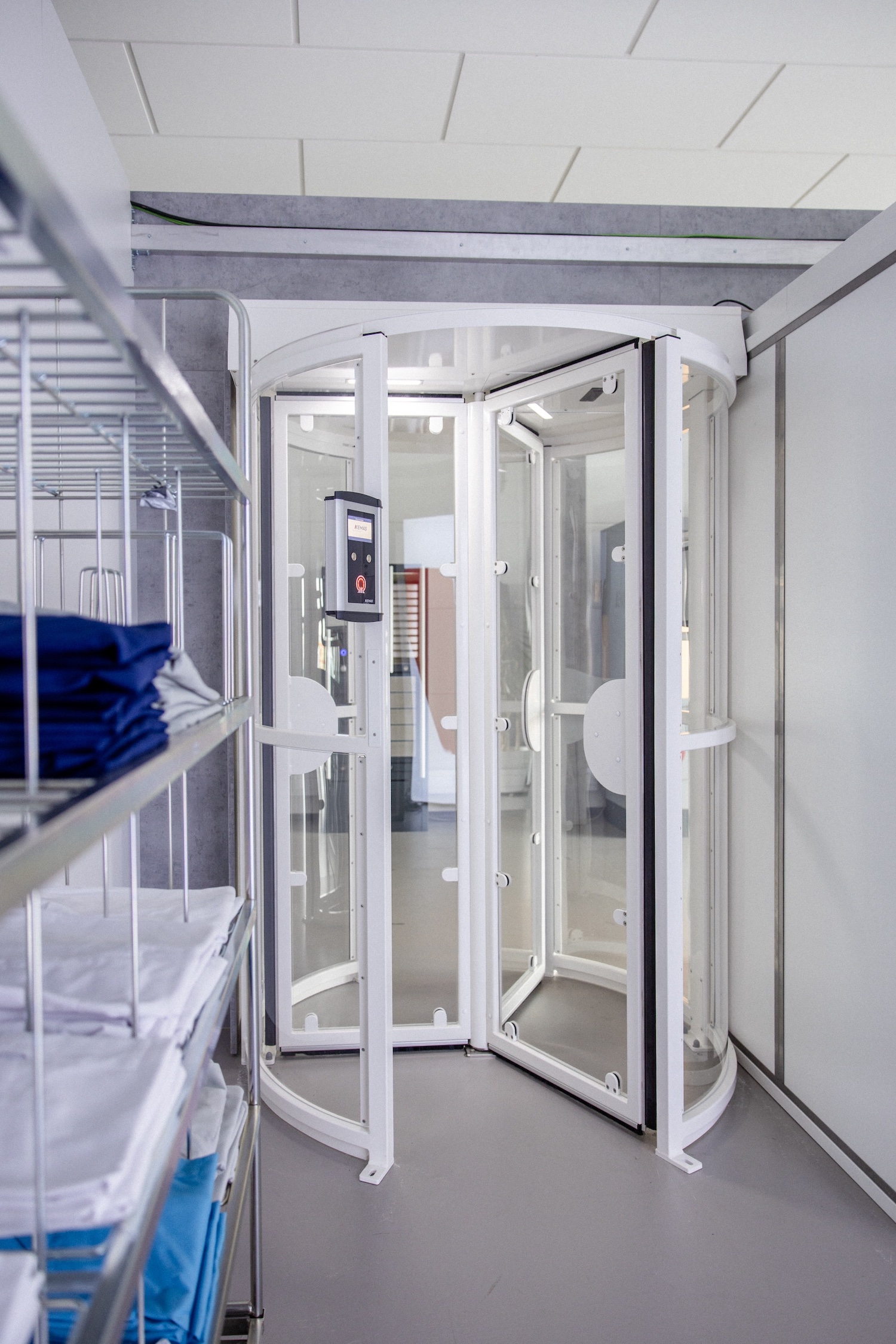

The ZENTRA WING is specifically designed for use in both indoor and outdoor applications and impresses with its versatile infill options, ranging from transparent acrylic glass to opaque designs. This allows the system to be adapted perfectly to different environments, both aesthetically and functionally.

The ZENTRA WING is ideally for securing sensitive areas such as laboratories, forensic facilities, and hospital service areas. Its robust design ensures reliable daily operation, while flexible infill options enable customised solutions to meet in dividual project requirements.

EH-variant

  • Semi-mechanical system with electromagnetic locking
  • Independent entry and exit control • Robust pawl mechanism with anti-return function
  • Limit-point locking prevents trapping during power failures or unauthorized access attempts

Airports in 8 countries are equipped with ZABAG special gate solution including 96m TERRA in Changi / Singapore

APPLICATIONS

The ZENTRA WING turnstile ideally suited for securing high-risk and security-sensitive sites across all sectors of critical infrastructure, as well as other facilities requiring a high level of perimeter protection.

  • Military facilities
  • Government and industrial
  • buildings
  • Embassies
  • Research centres
  • Critical infrastructure facilities
  • Data centres
  • Airports
  • Ports
  • Hospitals
  • Hotels

Special solutions, different sizes on request!

ADVANTAGES

  • Flexible infills: acrylic glass (clear or satin-finished) or opaque sheet metal
  • Adaptable to interior design and security concept
  • Durable construction
  • Seamlessly integrates into existing interior environments
  • Easy to clean and maintain
  • Delivered ready for installation
  • Sturdy rotor and guide elements

Corrosion protection

System 3Plus – All steel components that are not hot-dip galvanized are treated with a high-quality powder coating. The coating system consists of a two-stage pretreatment with shot blasting and zinc spraying, followed by an epoxy-polyester powder coating and thermal curing. The coating meets the highest requirements for durability and is resistant to scratches, abrasion, solvents, chemicals, and oils. as required, to a RAL standard colour chart or custom colours; standard: textured finish

Power supply / connected load
230 V 50 Hz / 138 VA

Rotor
Ø 1,300 mm

Turning cycle
3 x 120°

Total Width
1,500 mm (without roof)

Total Height
2,274 mm (without roof)

Passage Height
2,060 mm

Safety Device
based on DIN EN 17352

Certification
DIN EN ISO 9001:2015
