ALTA 3000 Series Ceiling Panels FIRE RATED (up to 1hr)
| Company | Profab Access |
|---|
Images
Description
Specifications
The ALTA 3000-1FR is a 1 hour fire rated loft hatch, typically used in residential properties to provide permanent access between 50mm wide timber truss/joisted plaster/plasterboard ceilings, where access to the loft space is required.
Specify options for frame edge profile and locking to suit the application.
Features / Benefits
COMPOSITION

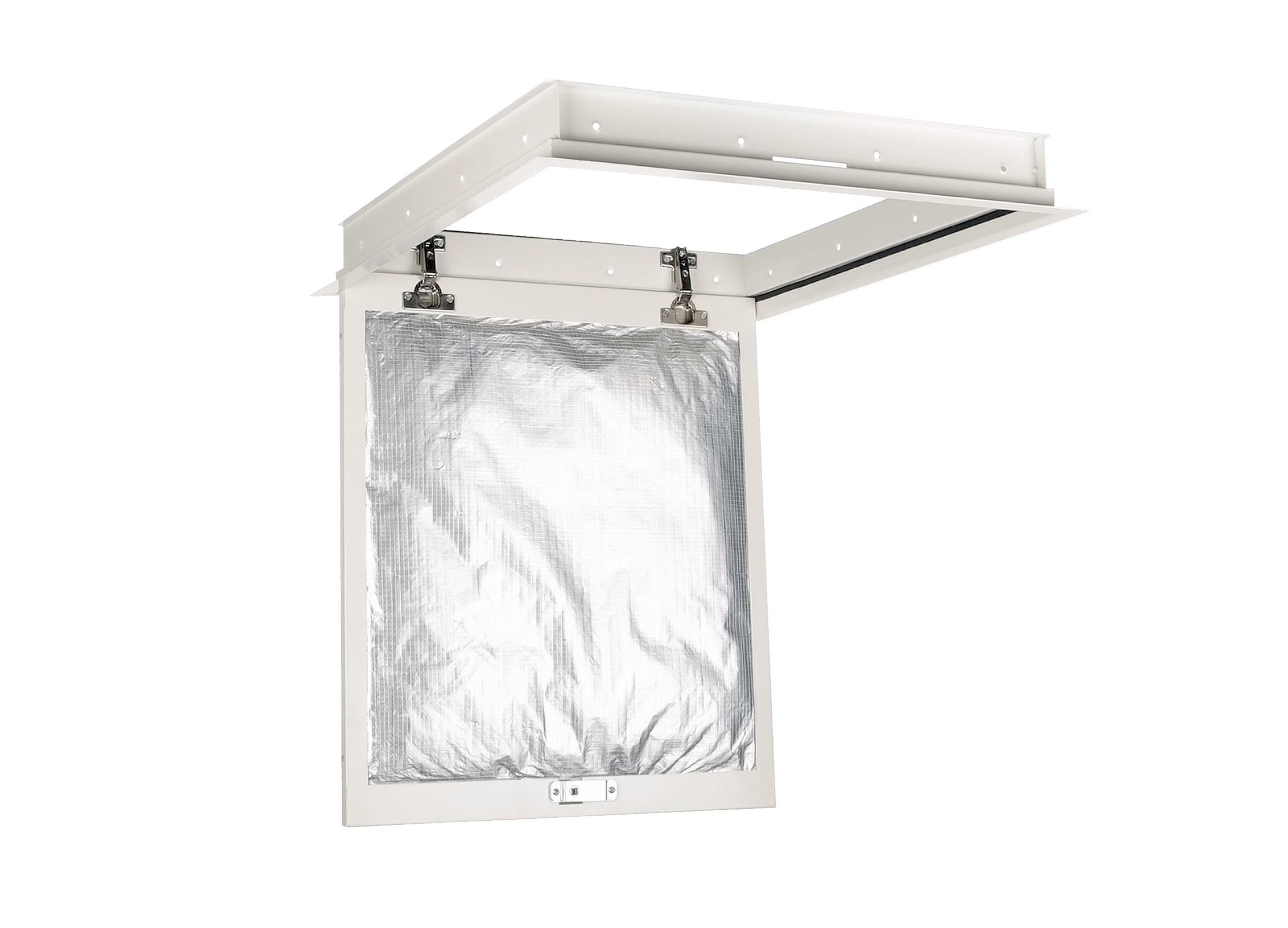

The metal frame holds a flush metal door through adjustable hinges to one side.
The door opens down towards the user and can be removed during installation or if damage occurs. Door is held closed with lock (see below)
- Fire rated up to 60 minutes
- Clean, discreet design with flush metal door
- Fast and simple to install, lockable
- Fully adjustable hinges for ease of installation and fit
- Rubber, compressable draught seals to all sides
- Etch primed for decorating on site, to match adjacent finishes
- Single door (SD) configuration
- Fully recyclable at end of life
Guide Specification ALTA 3000 SERIES – FIRE RATED
| MATERIAL | Frame 1.2mm / Door 0.9mm thick electro-galvanised mild steel. Door lined with foil backed mineral wool insulation. |
| DOOR CONFIGURATION | Single Door only |
| FRAME EDGE | Beaded frame (BF) / Picture frame (PF) (See OPTIONS) |
| FRAME DEPTH | Overall frame depth – 80mm |
| FINISH | White powder coated frame and door |
| STRUCTURAL OPENING | X and Y dimensions are outside frame sizes. Structural Opening requirement for installation is (X+5) x (Y+5) mm |
| CLEAR OPENING | Clear available access when installed, with door in open position is (X-65mm) x (Y-35mm) Push catch reduces clear opening of Dim.Y by additional 20mm (localised) |
| QUALITY | CNC manufactured in the UK to ISO 9001:2015 and 14001:2015 |
| FIRE TESTING | A 1 hour fire resistance test to BS 476: part 22: 1987 was carried out on a 800mm x 800mm single door. It maintained the integrity criteria for 90 minutes. Test No. 146556. Dated 17th August 2005 Warringtion Fire (UK). |
| Notes | For technical assistance, please contact our Technical Department on +44 (0)1827 719051 |
