INTEGRA 4000 Series Riser Doors FIRE RATED (up to 2hrs)
| Company | Profab Access |
|---|
Images
With ADJUSTABLE FRAME

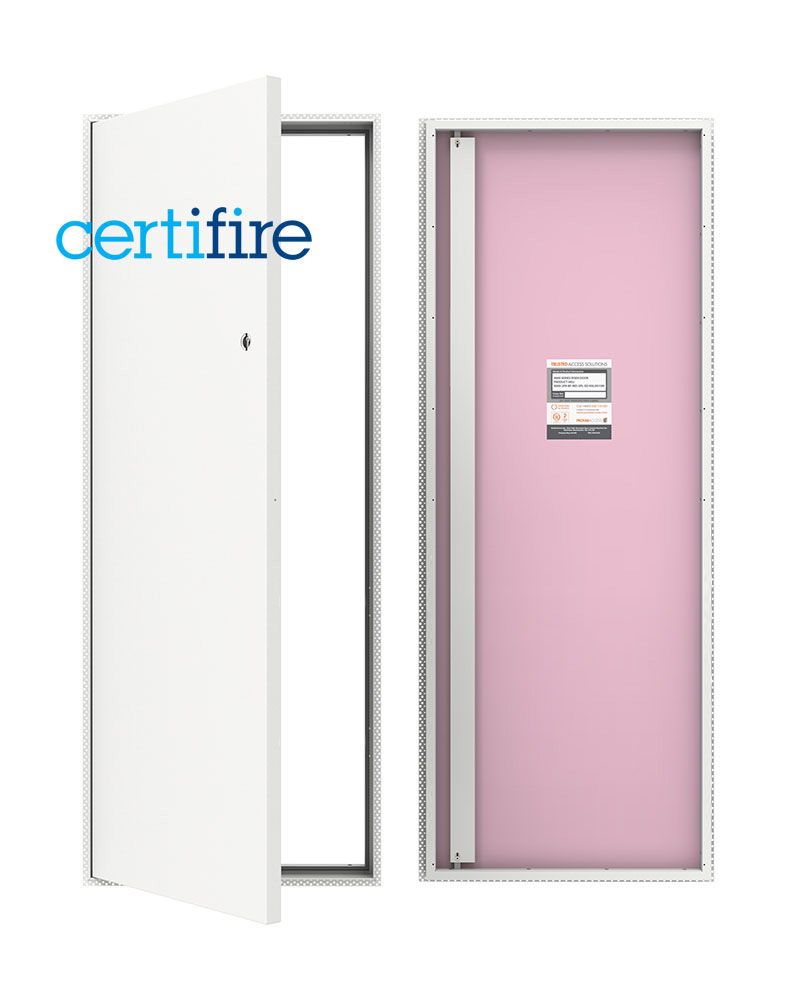

The INTEGRA 4000 SERIES FIRE RATED riser door provides permanent, safe and discreet access to electrical and other services located within the riser shaft of the building. Provided as standard with our patented PRECISION Adjustable Frame.
Specify options for door configuration, acoustic shielding, lock and frame edge type to suit your application. Contact our technical department for advice at your earliest convenience.
Features / Benefits

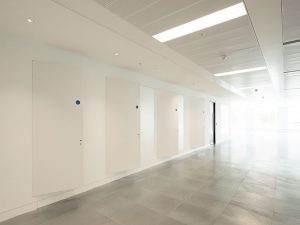

INTEGRA 4000 SERIES FIRE RATED riser doors are specified by architects seeking a higher performance, fire rated alternative to traditional timber riser doors for commercial and residential buildings where concealed maintenance-free access is required to mechanical or electrical services within the riser shaft, without compromising on building aesthetics or finish.
Designed and manufactured in our UK factory to your exact specification, our concealed INTEGRA 4000 Series riser doors supplied with our patented PRECISION adjustable frame, fit seamlessly into masonry walls, shaft walls and drywall partitions.
- Dramatically reduces fitting times
- Supplied with our PRECISION adjustable frame
- The adjustable frame full self-adjusts to meet the specific dimensions of each structural opening
- No plastic packers required for frame installation
- Factory applied intumescent strips
- Intumescent mastic application is not required
- Bi-directionally tested for fire integrity from both sides up to 120 minutes
- Delivering the highest standards in third party fire certification
- High performance range, for vertical use with frame and lock options
- Virtually invisible for a discreet, seamless aesthetic finish
- Etched primed for finishing easily on site to match adjacent décor
- Provides a faster and safer installation
- 98% recyclable at end of life
Guide Specification INTEGRA 4000 SERIES – FIRE RATED – WITH ADJUSTABLE FRAME
| MATERIAL | Frame 1.5mm / Door 1.2mm thick electro-galvanised mild steel. Door lined with rockwool / 12.5mm FireLine |
| DOOR CONFIGURATIONS | Single (SD) / Double (DD) / Triple (TD) / Quad door (QD) / Multiple (CA) |
| FRAME EDGE | Beaded frame (BF) / Picture frame (PF) / Dutch Fold Frame (DFF) (See OPTIONS) |
| FRAME DEPTH | Overall frame depth – 91.5mm |
| DOOR DEPTH | Door depth – 54mm |
| FINISH | White fully powder coated matt RAL 9010 (frame and door) |
| HARDWARE | Three-point lock (3PL) to rear of door – operated from the front face, 8mm square T-bar key included. Optional Europrofile High Security cylinder (3HS) on doors >450mm |
| STRUCTURAL OPENING | X and Y dimensions are outside frame sizes. Structural opening tolerance for installation is (X+10) x (Y+10) mm on a single door and (X+15) x (Y+10) mm on multi leaf doors (double doors, continuous access doors) |
| Fire Testing | Third party CERTIFIRE scheme accredited. Test certification for each range can be downloaded from the EXTERIOR RESOURCES section above. Bi-directionally tested for fire integrity up to 120 minutes |
